9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
REAR SUSUPENSION ASSEMBLY VIEWS - IGX 146

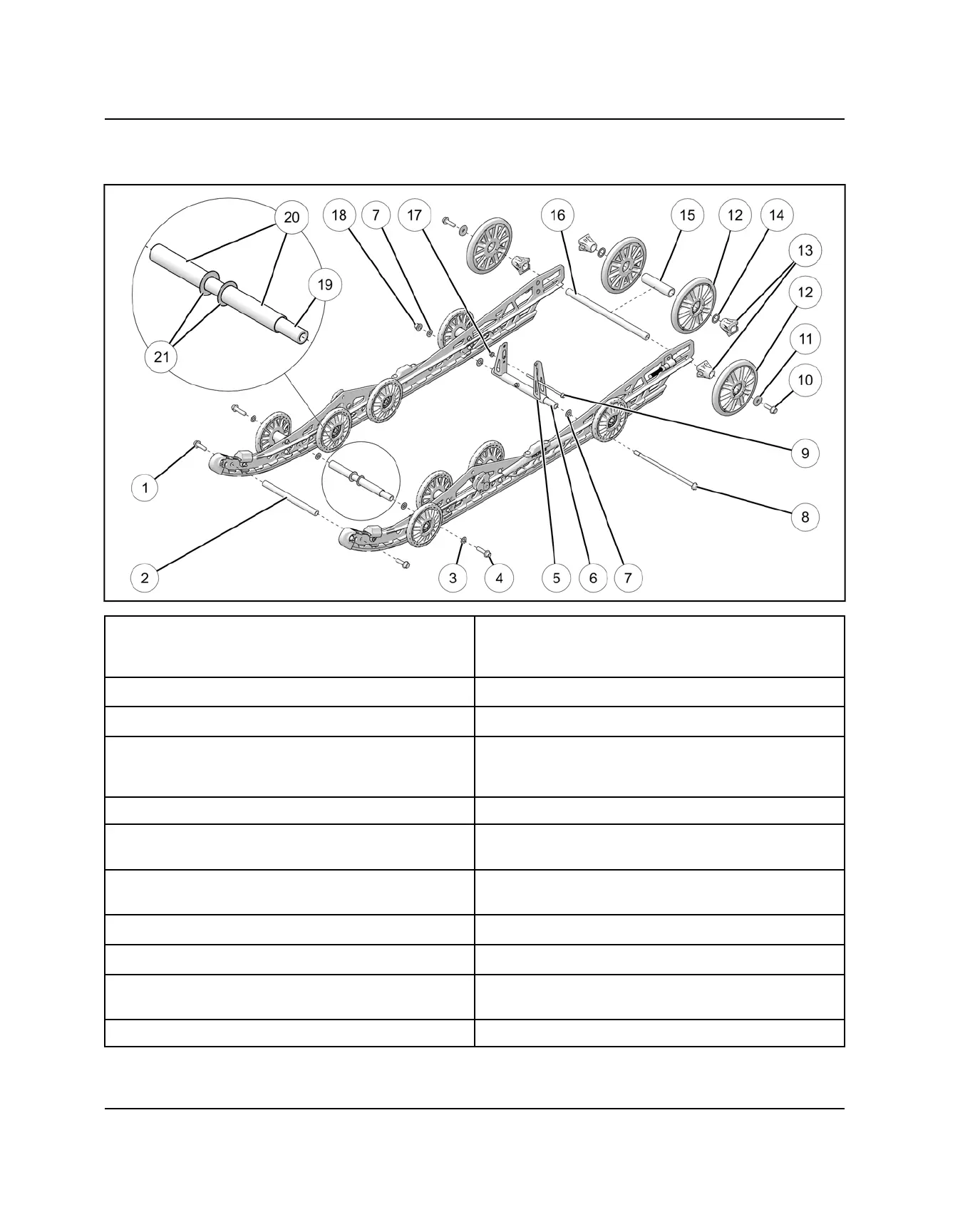

IGX 146 REAR SUSPENSION PIVOT / BRACE ASSEMBLY VIEW
q
Front Cross Shaft Fastener
33 ft-lbs (45 N·m)
Apply Loctite 263 to fastener prior to assembly
d
Idler Wheel
w
Front Cross Shaft
f
Idler Spacer
e
Washer
g
Bushing
r
FTS Mounting Shaft Fastener
50 ft-lbs (68 N·m)
Apply Loctite 263 to fastener prior to assembly
h
Center Idler Spacer
t
Rear Pivot Arm
j
Idler Shaft
y
Rear Pivot Arm Shaft
k
Nut
6 ft-lbs (8 N·m)
u
Washer
l
Nut
33 ft-lbs (45 N·m)
i
Rear Pivot Arm Fastener
1(
FTS Mounting Shaft
o
RTA Scissor Stop Guide Fastener
2)
Shock Spacer
a
Idler Fastener
33 ft-lbs (45 N·m)
2!
Washer
s
Washer
STEERING / SUSPENSIONS
