WALKER EVANS VELOCITY PIGGYBACK
SHOCK ASSEMBLY
WARNING
Shocks contain high pressure nitrogen gas. Extreme
caution must be used while handling and working with
shocks and related high pressure service equipment.
Wear safety glasses and ear protection during these
procedures.
NOTICE
To prevent damage or marks to the shock, the use of
soft jaws on a vise is recommended. Perform work in
clean environment. Always discard used O-rings and
wear bands. discard used shock oil into appropriate
container.
1. Obtain new shock oil and new O-rings / wear bands
for the components removed from the shock.

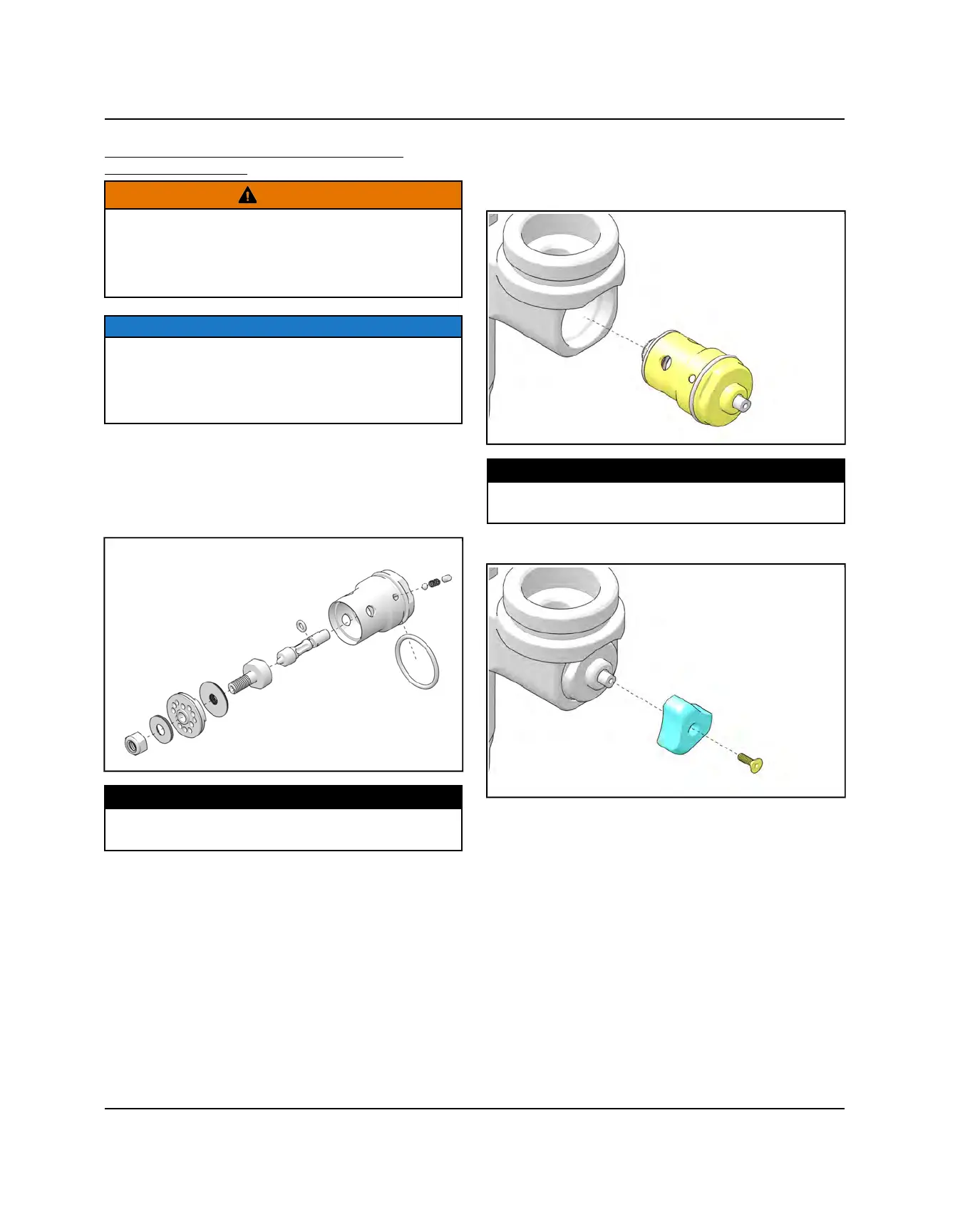

2. Optional service: If the clicker assembly was
removed from the body cap, reassemble the clicker
components. Tighten nut to specification.
TORQUE
Clicker Assembly Nut:
45 in-lbs (5 N·m)
3. Optional service: If removed, reinstall the clicker
assembly back into the shock bridge with the nut side
facing the shock reservoir tube. Torque to
specification.
TORQUE
Clicker Assembly:
25 ft-lbs (34 N·m)
4. Reinstall the clicker knob and screw.
