9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
10.81
RELAYS

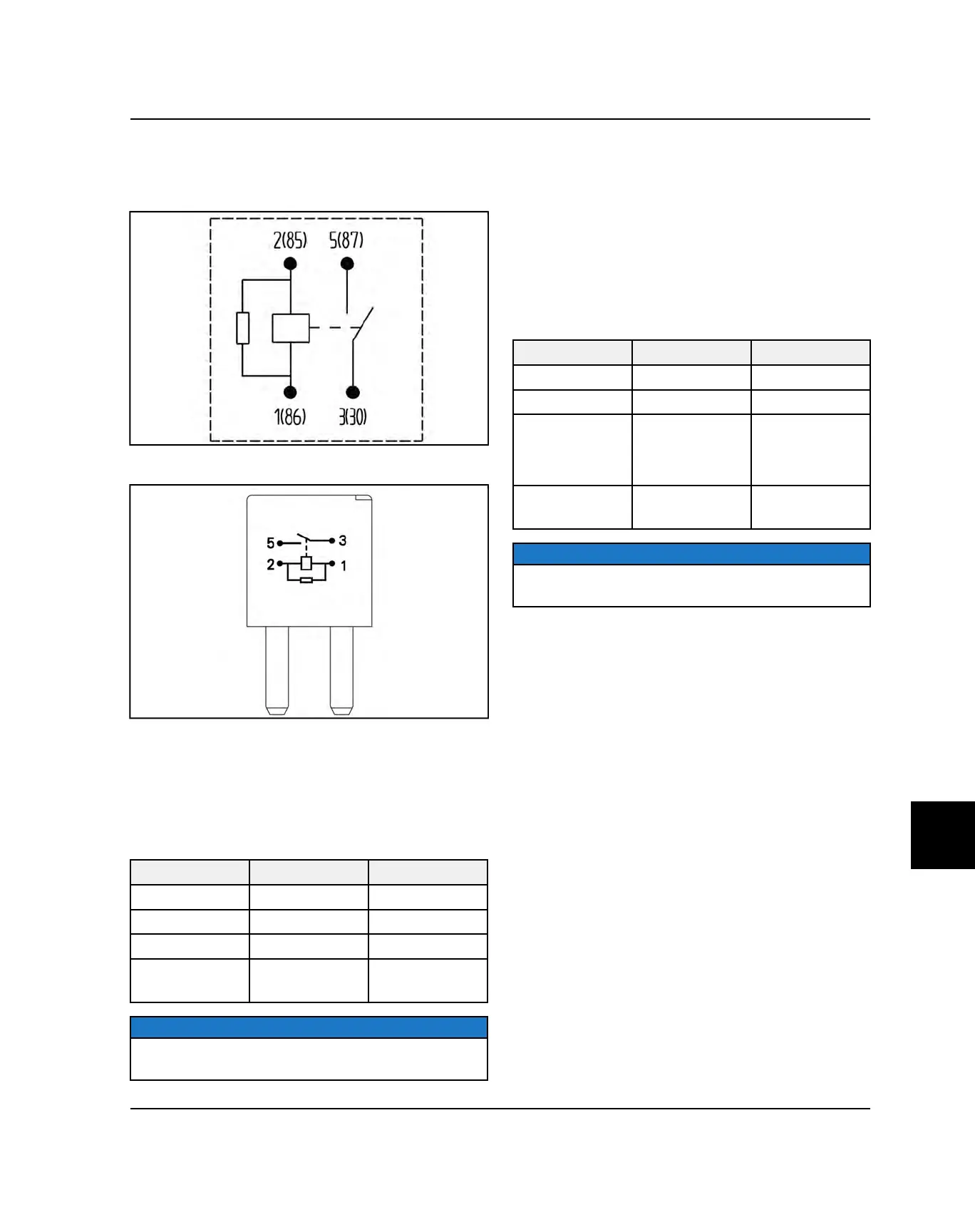

RELAY OVERVIEW
Top of Relay
Side of Relay
BATTERY CHARGE RELAY
The Battery Charge Relay is located in the load center.
This relay provides the following:
• Battery charge control
PIN
WIRE COLOR FUNCTION
D4 RD
Critical Power
C4 RD / WH Chassis Power
D5
RD / YE Chassis Power
C5 OG / DG Battery Charge
Relay Control
NOTICE
If relay is removed for service, re-install with a drop of
NyoGel on each connector blade.
GAUGE POWER RELAY
The Gauge Power Relay is located in the load center.
This relay provides the following:
• Gauge PWR test connector
• Instrument cluster / IDD power
• EV actuator / PWM converter power
• Brake / Taillight power
PIN WIRE COLOR FUNCTION
D8 RD Critical Power
C8 RD Critical Power
D9 RD / BK
Brake Light
Power
Gauge Test
Power
C9 GY / YE
EV Actuator
Relay Control
NOTICE
If relay is removed for service, re-install with a drop of
NyoGel on each connector blade.
BATTERY / ELECTRICAL
