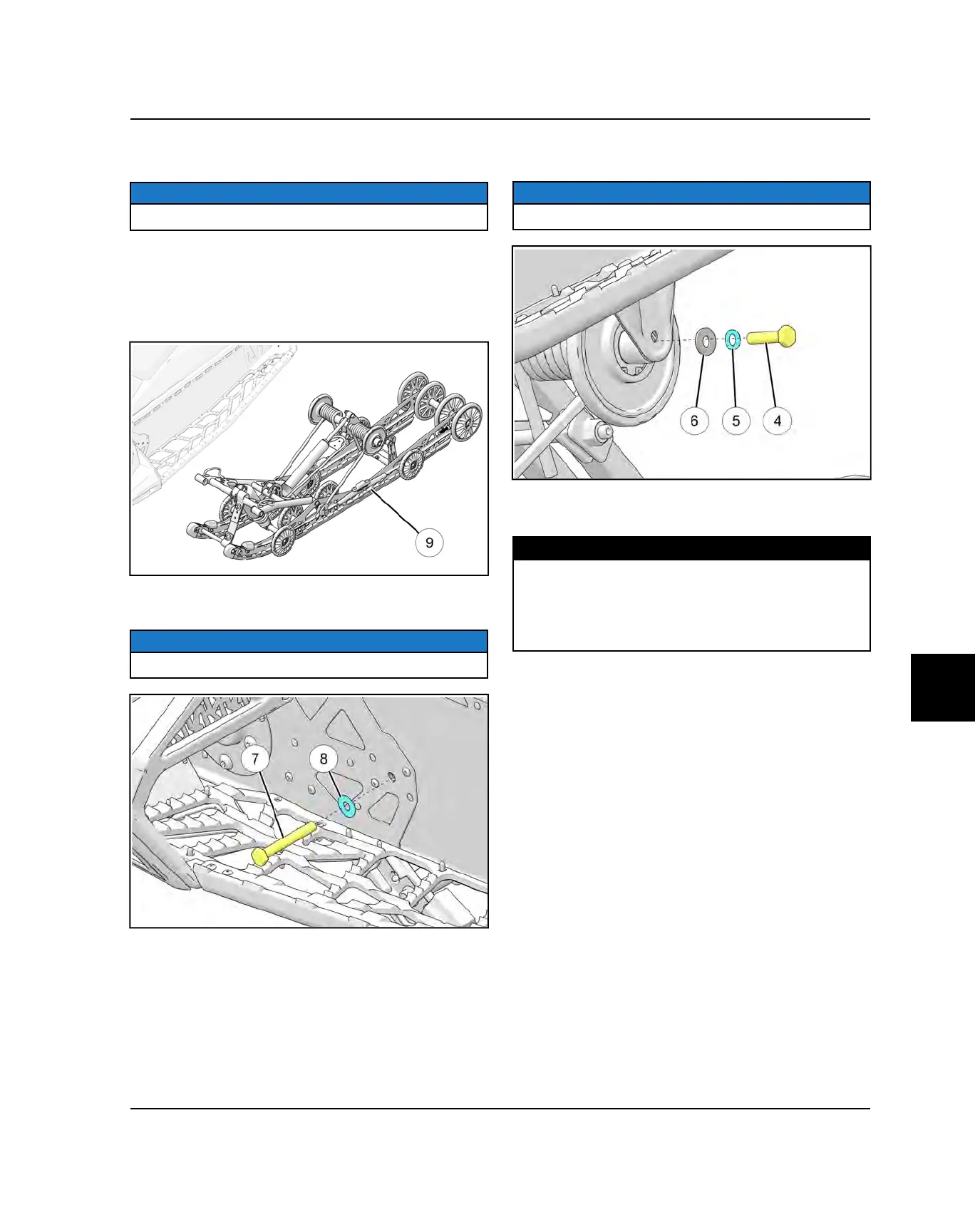

REAR SUSPENSION INSTALLATION - IGX
146
NOTICE
Track not shown for clarity.
1. If the track and driveshaft were removed, those
components must be reinstalled before the rear
suspension can be installed.
2. Pivot the rear suspension
o
back into the tunnel and
track.
3. Loosely install the washer
i
and front torque-arm-to-
tunnel mount bolts
u
.
NOTICE
Right side shown.
4. Loosely install the washers
y
, spring washers
u
,
and two upper carrier fasteners
r
.
NOTICE
Right side shown.
5. When all four rear suspension mounting bolts are
installed, torque all to specifications.
TORQUE
Front Torque Arm-to-Tunnel Mount Fasteners:
50 ft-lbs (68 N·m)
Upper Carrier Fasteners:
46 ft-lbs (63 N·m)
6. Perform the Track Alignment and Track Tension
Adjustment procedures.
