R&S OSP Instrument Functions
Operating Manual 1505.3896.12 - 14 113
or

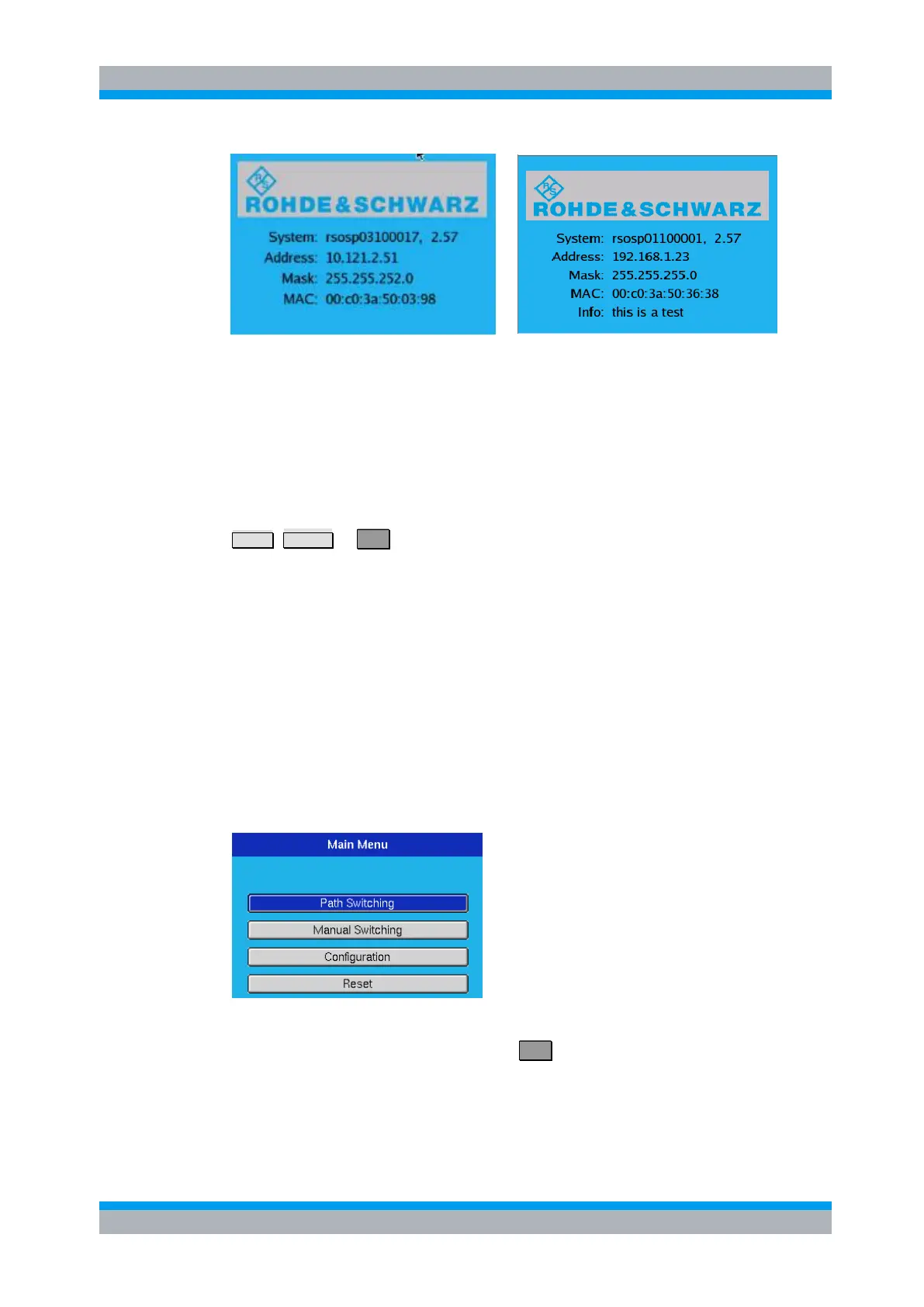

The System field returns the string rsospvvnnnnnn, x.xx where vv is the two-digit
type identifier (e.g. “03” for R&S OSP130), nnnnnn the serial number of the instrument
and x.xx is the software version.
The Address field indicates the IP address (see chapter 2.9).
The Mask field shows the subnet mask string.
With MAC the instrument’s MAC address is shown.
For the Info field (if activated), see chapter 3.7.
To go to the top level menu (Main menu), press any of the keys
MENU , RESET or OK while the start screen is displayed.
5.3.2.1 GUI Information Line on R&S OSP130
With firmware version 2.57 onwards, an additional information line can be set up at the
R&S OSP130. It either displays any custom text or the actual path set. For configuring
the GUI info line, see chapter 3.7.1.
5.3.3 General Navigation Operations
The instruction in this section describe how to access the various menu levels, the
modules of the instrument, and some general pieces of information.
With the cursor keys, the appropriate menu function can be selected.
Selecting Manual Switching and pressing OK will display a screen as follows:
To Next Page
