Operating Manual 1505.3896.12 - 14 59
position and leaving the previous position empty will make all references to this slot
invalid.
Whenever the OSP Panel encounters such an invalid path, it will display some warning
message, and in addition the path name will be displayed in blue, giving some bare
information about the included switches.
Number of Paths
At least 60 paths can be stored on an R&S OSP.
3.4.2 Switch a Path
If a path has been defined as described in the previous chapter, the path can be
switched as follows:
1. Start the OSP Panel.
2. Select >Path >Switch Path … in the OSP Panel.

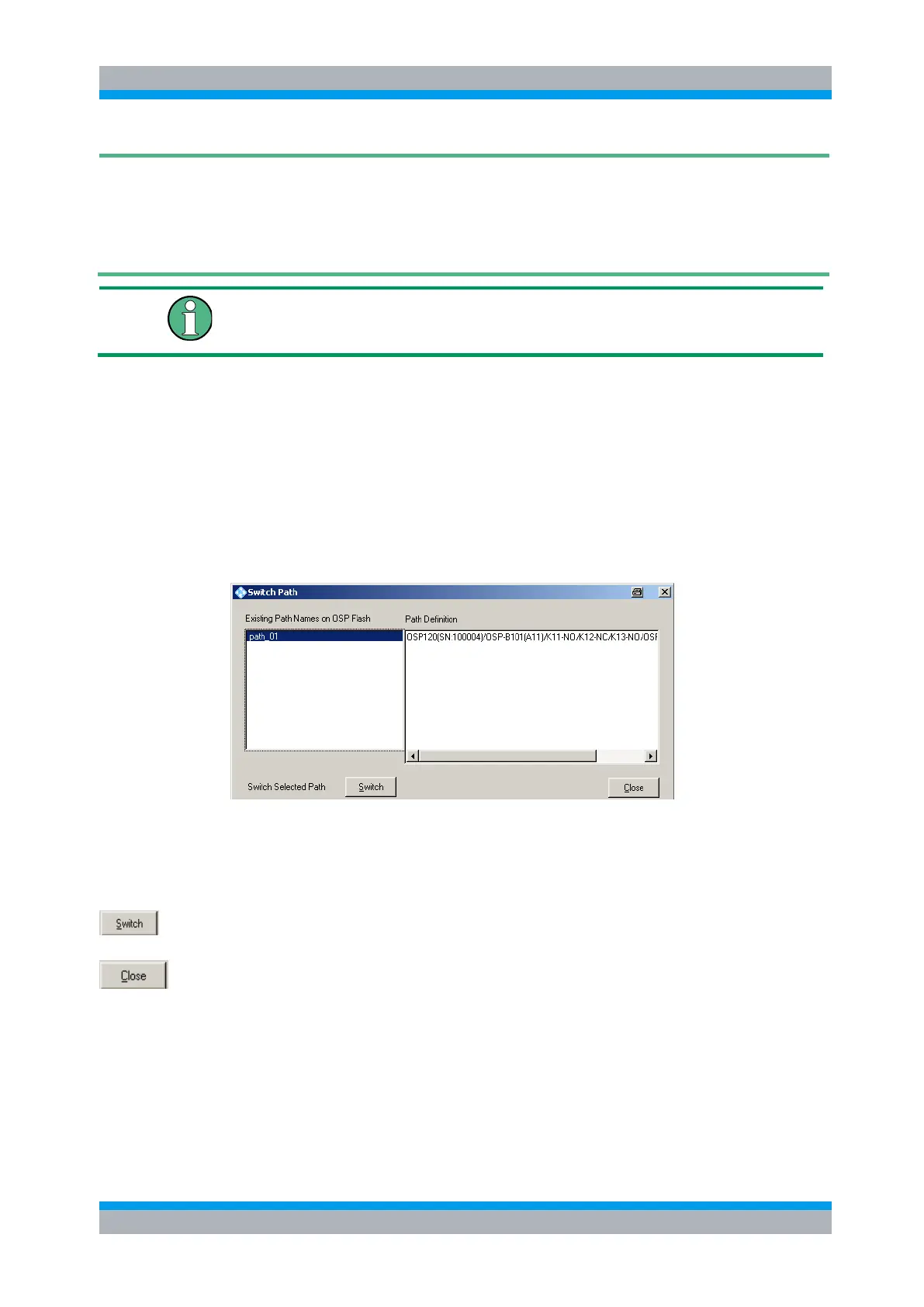

The following dialog appears:
The left field shows the names of all path configurations which already have been defined.
The highlighted path configuration will be switched when pressing the Switch button.
The right field Path Definition shows all relays and settings related to the selected
path.
The selected path configuration will be switched; i.e. all the relays and outputs,
respectively, which are part of the path, will be set to the defined position.
Pressing this button will exit the dialog
3.4.3 Delete a Path
If a path has been defined as described in the previous chapter, the path can be
deleted as follows:
1. Start the OSP Panel.
