R&S OSP User Manual

R&S OSP Getting Started
Operating Manual 1505.3896.12 - 14 39
3.3.2 Addressing R&S OSP Device

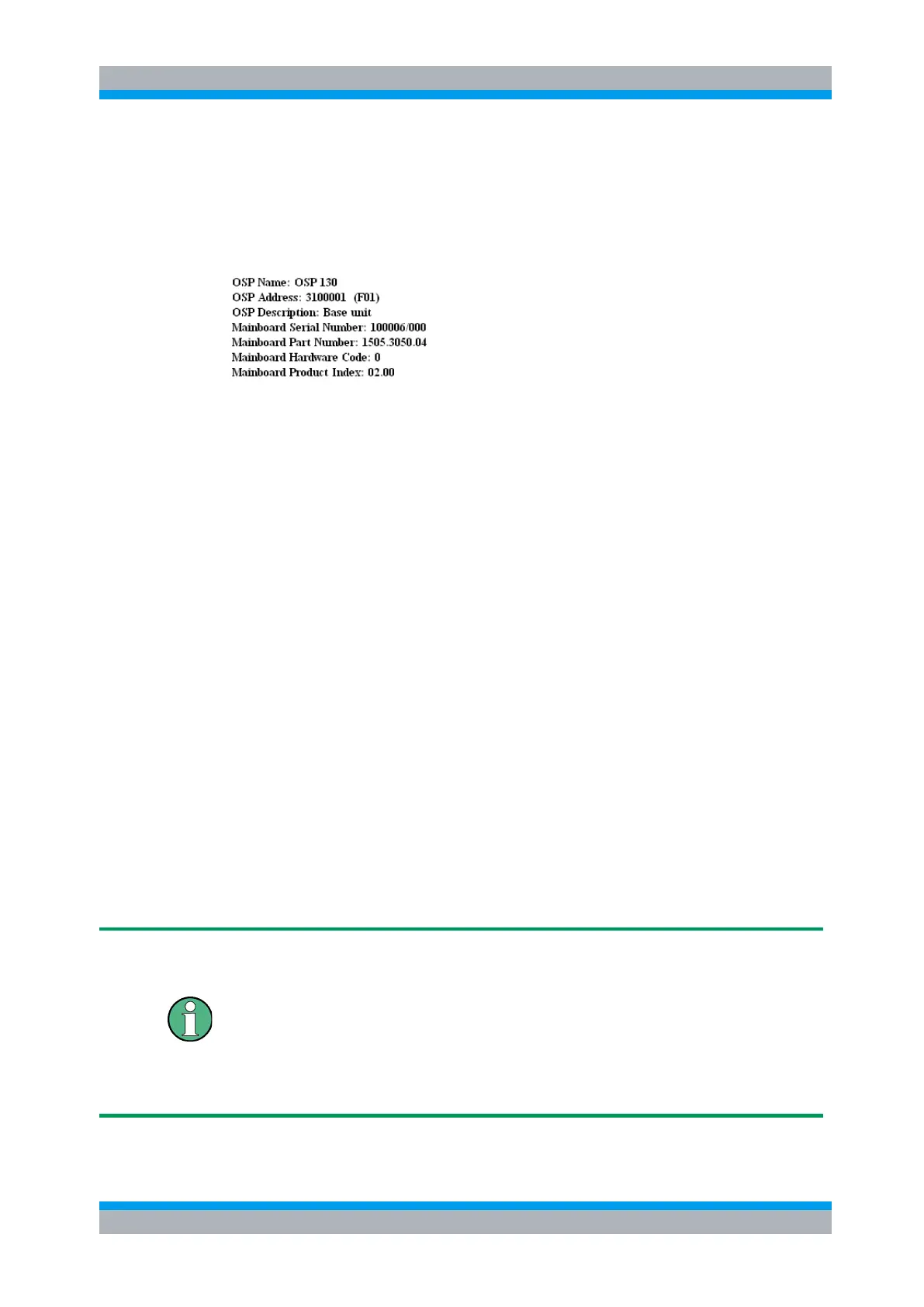

Select the R&S OSP device in the left field of the OSP Panel dialog.
In the lower right field of the OSP Panel dialog additional information on the R&S OSP
is displayed as follows:
OSP Name
Shows the model of the OSP; i.e. OSP130
OSP address
The device address is read back from the OSP flash
memory. The first OSP device (the device which can be
addressed via LAN interface) in a system is preferably
defined as Device F01.
The R&S OSP address is composed out of the R&S OSP
version (last digit of the R&S OSP Ident Number) and the
R&S OSP serial number (6 digit number):
Version: xxxx.xxxxK03
Serial Number: 100001
The above example results in R&S OSP address 
3100001
OSP Description
Base unit (OSP120, OSP130) or Extension unit (OSP150)
Mainboard Serial Number:
The serial number read back from the R&S OSP
Mainboard is displayed.
Mainboard Part Number
The part number read back from the R&S OSP Mainboard
is displayed.
Mainboard Hardware Code
The hardware code read back from the R&S OSP
Mainboard is displayed.
Mainboard Product Index
The product index read back from the R&S OSP
Mainboard is displayed.
OSP device
Note that no functions can be set selecting the R&S OSP Device. For the R&S OSP
Device only the additional information as listed above can be read.
OSP address
If an R&S OSP is set up for the first time, it is necessary to register the R&S OSP
address once. Otherwise it may happen that the R&S OSP is correctly detected but no
modules are indicated.
