8.3 Extending the R&S OSP System
The R&S OSP120 provides five slots space, while the R&S OSP130 provides three
slots, to configure up to three modules like the R&S OSP-B101, R&S OSP-B102 and
R&S OSP-B103. If it is required to configure additional modules, the R&S OSP can be
extended by connecting the R&S OSP150.
8.3.1 R&S OSP150 Extension Unit
The R&S OSP150 Extension Unit is almost identical to the R&S OSP120 with the
difference, that this unit has no LAN connection but a CAN bus interface which is
connected to the R&S OSP120 or R&S OSP130. The R&S OSP150 is controlled from
the R&S OSP120 or R&S OSP130.
The R&S OSP150 offers another five slots, with three of them being active slots, to
take further modules like the R&S OSP-B101, R&S OSP-B102 and R&S OSP-B103.

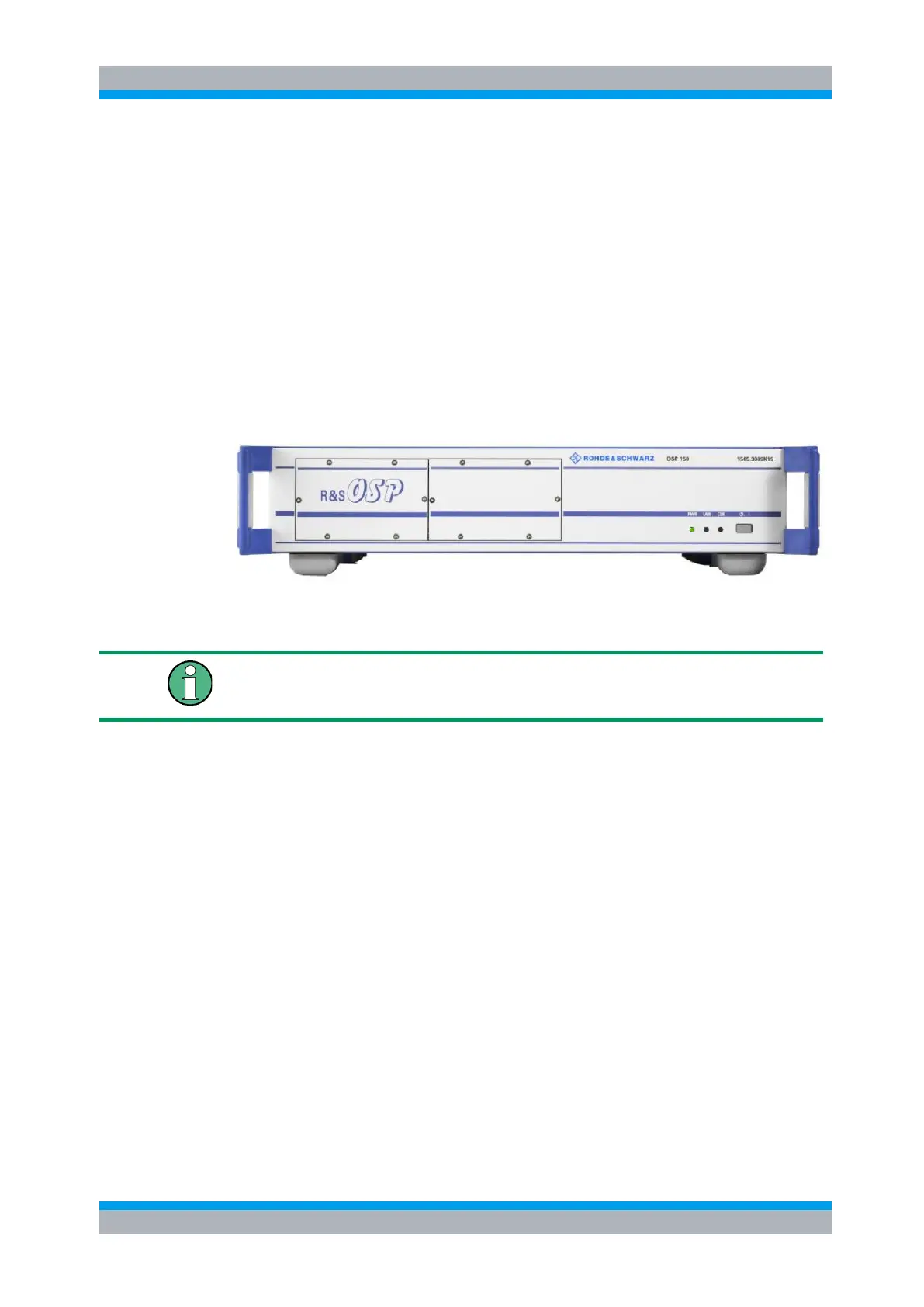

R&S OSP150 Extension Unit
Up to four R&S OSP150 Extension Units can be cascaded in one R&S OSP system.
