OSP-B102 dialog
When the dialog for operation of the R&S OSP-B102 module is opened, the actual
relay setting of this module is read back from the hardware and displayed.
The dialog as described above applies to further options of the R&S OSP as far as the
option has got the same relay configuration. It will apply to the following modules:
Option
Relay configuration
OSP-B112
2 x SP6T relay, 40 GHz
OSP-B128
Up 3 x SP6T relay, solid state, terminated, 10 GHz
3.3.8 Controlling the R&S OSP-B103/-B158
After selection of the R&S OSP-B103 or the R&S OSP-B158 module the following
dialog is opened.

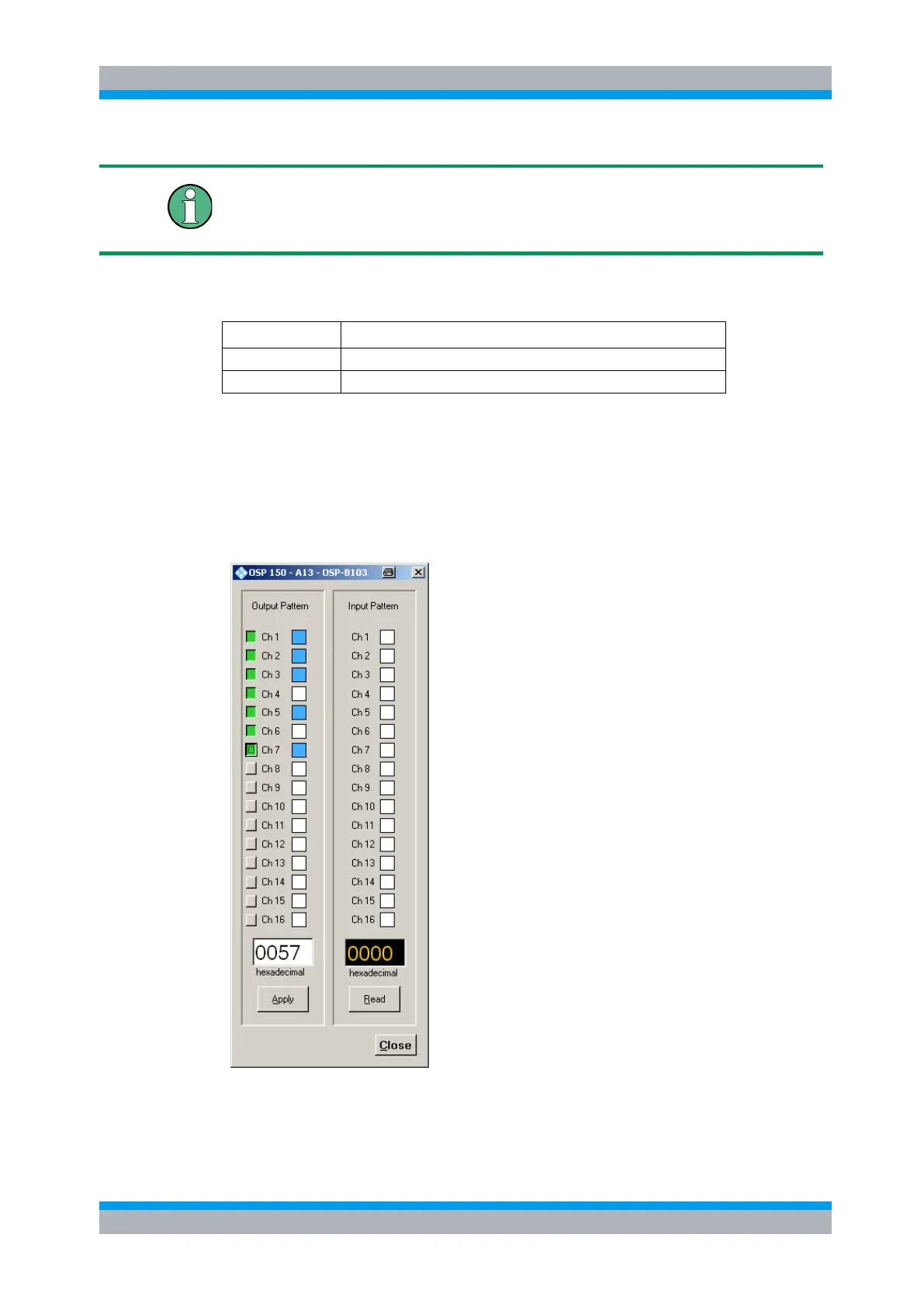

The module R&S OSP-B103 contains two parallel ports, one with 16 output lines and
one with 16 input lines. The OSP-B103 dialog shows both ports:
