Operating Manual 1505.3896.12 - 14 34
3 Getting Started
This chapter helps you to get familiar with the R&S OSP and explains how to solve
basic tasks that you will frequently encounter when working with the instrument.
You can control the basic switching tasks and define paths with the graphical user
interface (GUI). A more comfortable approach is using the separate OSP Panel
software. It allows to configure the R&S OSP and to get more information about the
device, its modules and relays.
R&S OSP120 without display
... with monitor and keyboard (GUI)
Figure 3-1 / Chapter 4
and Chapter 5.3.1
... direct control via front display and
panel keypad (GUI)
Figure 3-2 / Chapter 4
and Chapter 5.3.1
R&S OSP120 and
R&S OSP130
... via Ethernet connection
between OSP and laptop/PC
(Web-GUI via VNC or OSP Panel)
Figure 3-3 / Chapters 3.1,
3.7.1, 5.3.1 (Web-GUI),
3.2 to 3.3 (OSP Panel)
Since the R&S OSP120 only has remote control capability, the manual operation of
the instrument is achieved either via a connected keyboard, mouse and monitor or via
the application OSP Panel, which runs on an external computer connected to the
same LAN network as the R&S OSP120.

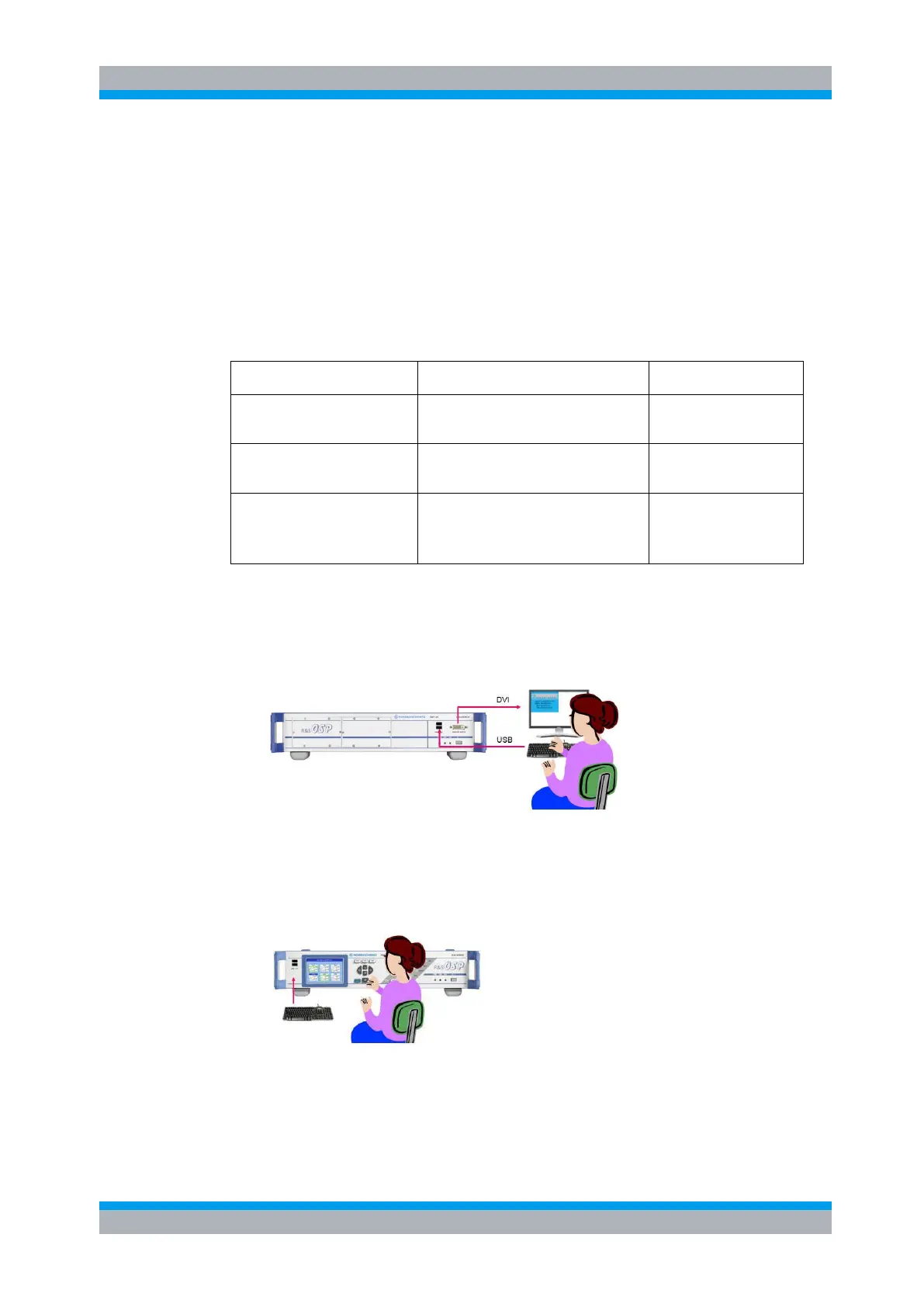

Figure 3-1: Manual operation of R&S OSP120 using GUI
For manual control of the R&S OSP130, you can use the internal display and keypads.
As an alternative, you can use a keyboard and mouse, see Figure 3-2.
Figure 3-2: Manual operation of R&S OSP130 using the GUI
Both base units R&S OSP120 and R&S OSP130 can be controlled via LAN interface
by Web-GUI (VNC required) or by the application software OSP Panel, Figure 3-3.
