R&S OSP User Manual

R&S OSP Appendix
R&S OSP Module Interfaces
Operating Manual 1505.3896.12 - 14 200
Option
Relay configuration
R&S OSP-B107
6 x SPDT relay, solid state, 6 GHz
R&S OSP-B111
6 x SPDT relay, 40 GHz
R&S OSP-B127
6 x SPDT relay, solid state, terminated, 10 GHz
9.2.2 R&S OSP-B102/-B112 Interface
The module R&S OSP-B102 and others as listed above are single slot modules. They
contain two SP6T relays which are directly accessible at the module’s front panel.
There are no additional RF cables inside the module.

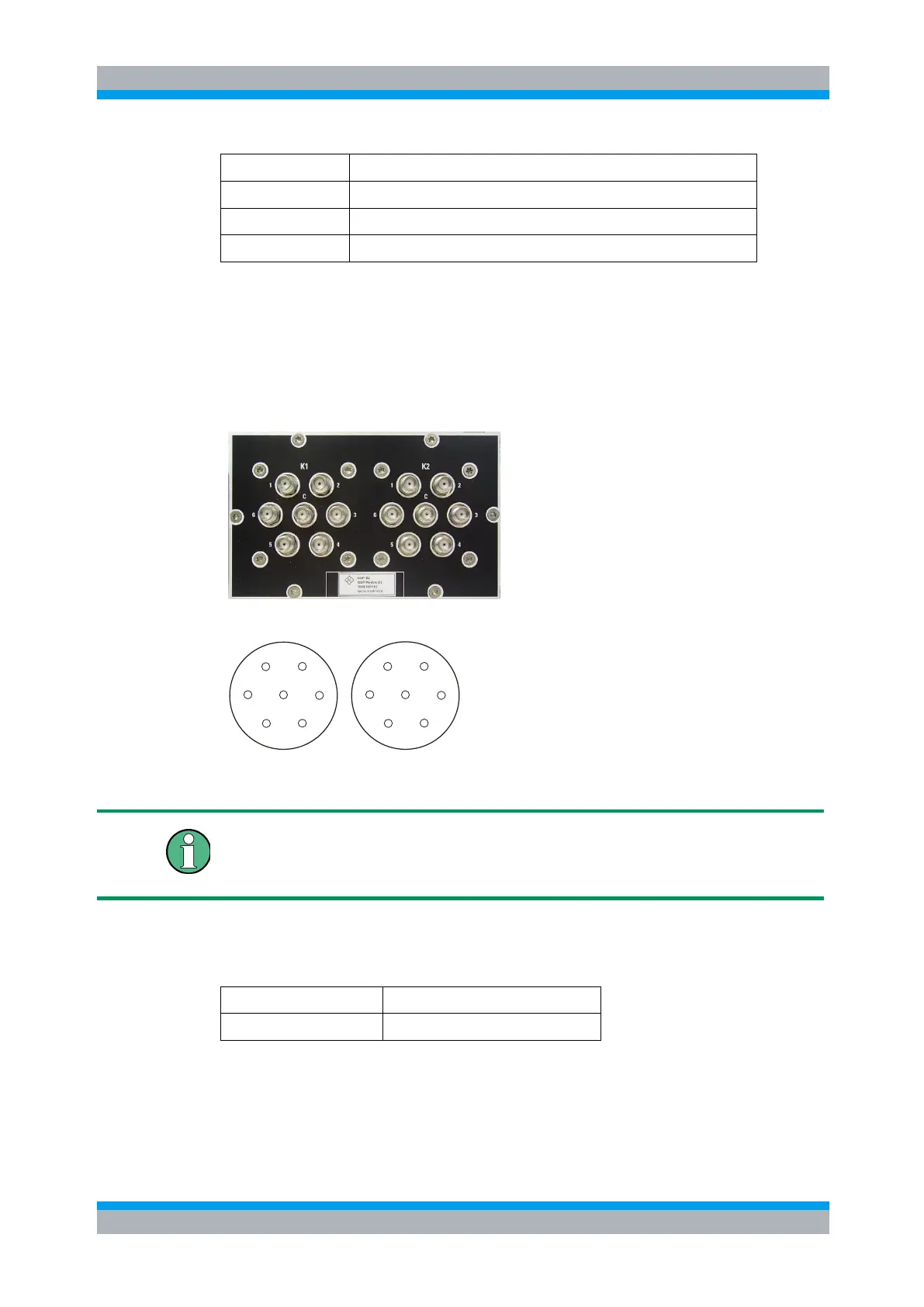

Here is a picture of the R&S OSP-B102:
The following drawing shows the pinout. All RF connectors are SMA female type.
2
C
6
5
4
3
1
K1
2
C
6
5
4
3
1
K2
Figure 9-6: Layout RF Connectors of R&S OSP-B102
SMA Connectors
It is urgently recommended to use an SMA torque wrench (60 Ncm) to screw on and
unscrew the RF connectors from the R&S OSP-B102 module.
The module description as given above applies to further options of the R&S OSP as
far as the option has got a similar relay configuration. It will apply to the following
modules:
Option
Relay configuration
R&S OSP-B112
2 x SP6T relay, 40 GHz
9.2.3 R&S OSP-B103 Interface
The module R&S OSP-B103 (single slot module) is an I/O module which contains a 16
bit input and a 16 bit output port. The ports are accessible at the module’s front panel
