R&S OSP User Manual

R&S OSP Appendix
R&S OSP Module Interfaces
Operating Manual 1505.3896.12 - 14 205
K11
K12
NC
CNO
NC
CNO
K13
NC
CNO

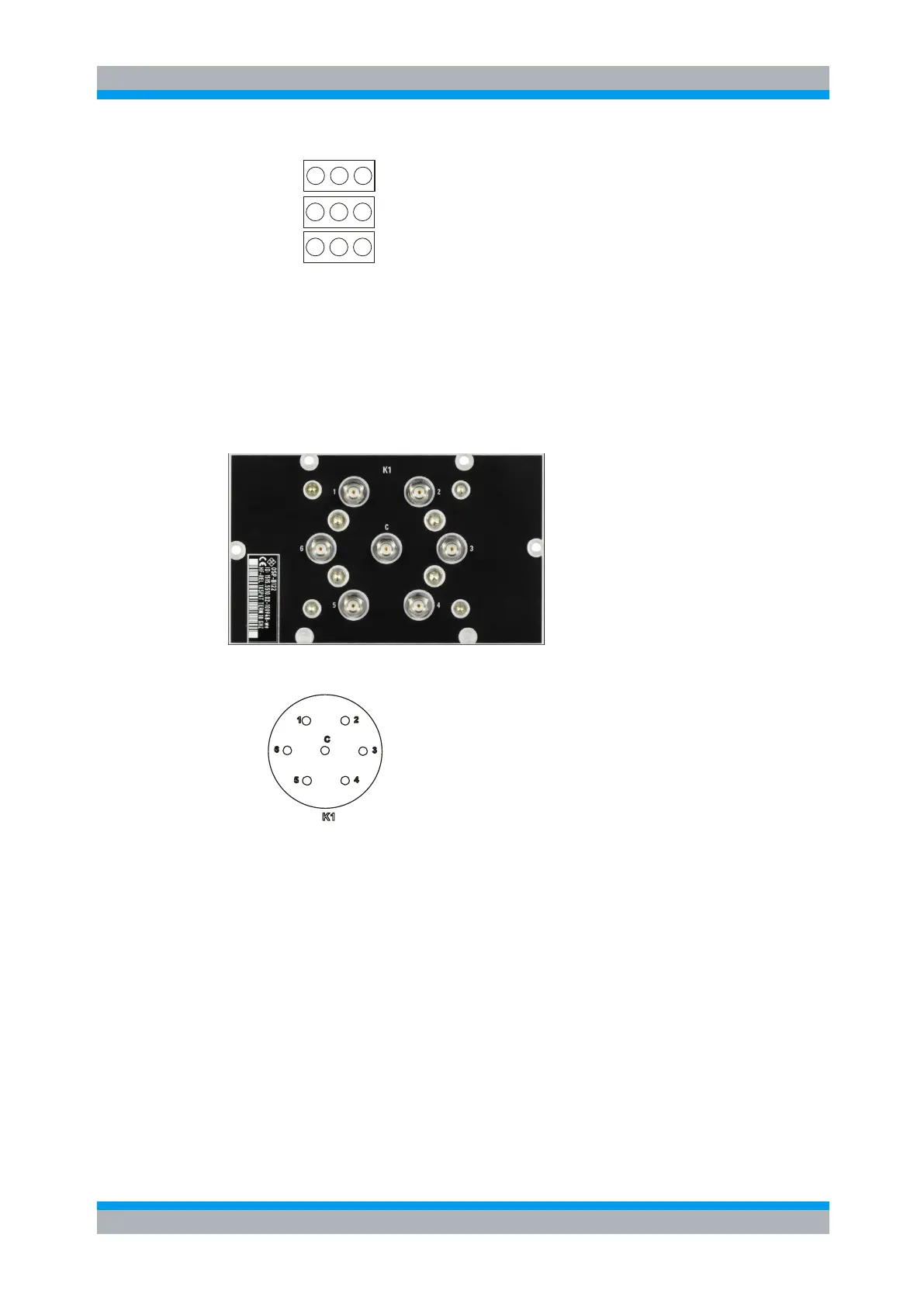

Figure 9-14: Layout RF Connectors of R&S OSP-B121
9.2.8 R&S OSP-B122 Interface
The module R&S OSP-B122 is a single slot module and contains one SP6T relay
which is directly accessible at the module’s front panel. There are no additional RF
cables inside the module.
Here is a picture of the R&S OSP-B122:
The following drawing shows the pinout. All RF connectors are SMA female type.
Figure 9-15: Layout RF Connectors of R&S OSP-B122
9.2.9 R&S OSP-B123 Interface
The module R&S OSP-B123 takes two slots in the R&S OSP. It contains 6 SPDT
relays and one SP6T relay. All relays are directly accessible at the module’s front
panel. There are no additional RF cables inside the module.
Here is a picture of the R&S OSP-B123:
