R&S OSP User Manual

R&S OSP Getting Started
Operating Manual 1505.3896.12 - 14 49
OSP-B103 dialog
When the dialog for operation of the R&S OSP-B103 module is opened, the actual
input pattern of this module is read back from the hardware and displayed.
The module R&S OSP-B158 is similar to the R&S OSP-B103 module. For controlling
this module, see chapter 3.3.8.
The R&S OSP-B158 module contains a checkbox Display AU600 panel design. After
selecting the checkbox, the user is prompted to close the actual panel and to open it
again. After opening the OSP-B158 panel again, a special interface for controlling the
AU600 antenna system appears.

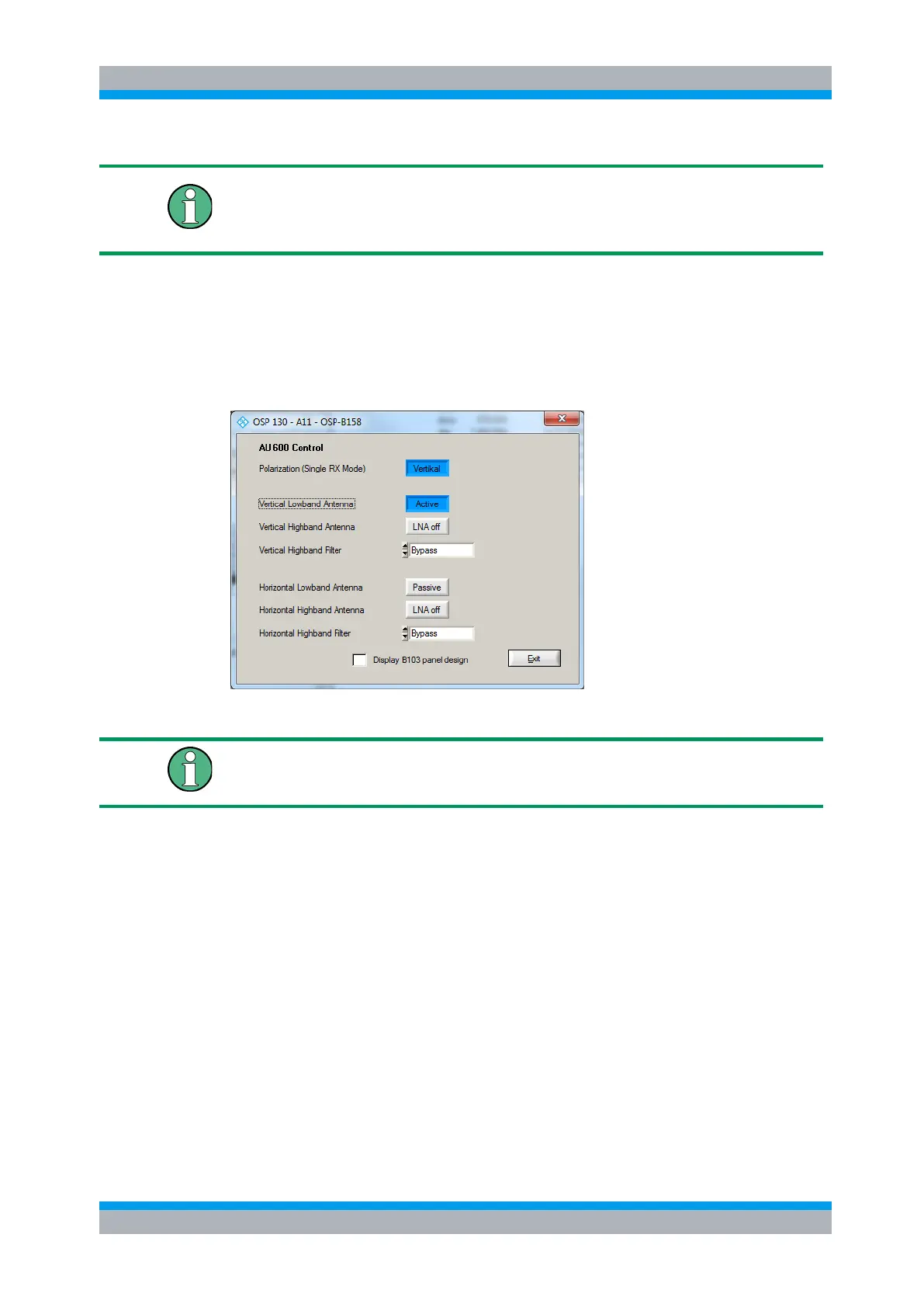

Figure 3-4: AU600 panel design
AU600 panel design
The special AU600 panel design is explained in detail in the R&S AU600 manual.
3.3.9 Controlling the R&S OSP-B104/-B114
After selection of the R&S OSP-B104 module the following dialog is opened.
The module R&S OSP-B104 contains control for up to four external power relays.
Furthermore, five output lines and four input lines of I/O ports are available, and there
is some specific interlock functionality. The OSP-B104 dialog shows all these
elements:
