R&S OSP Instrument Functions
Operating Manual 1505.3896.12 - 14 118
5.3.6 Using the R&S OSP-B103

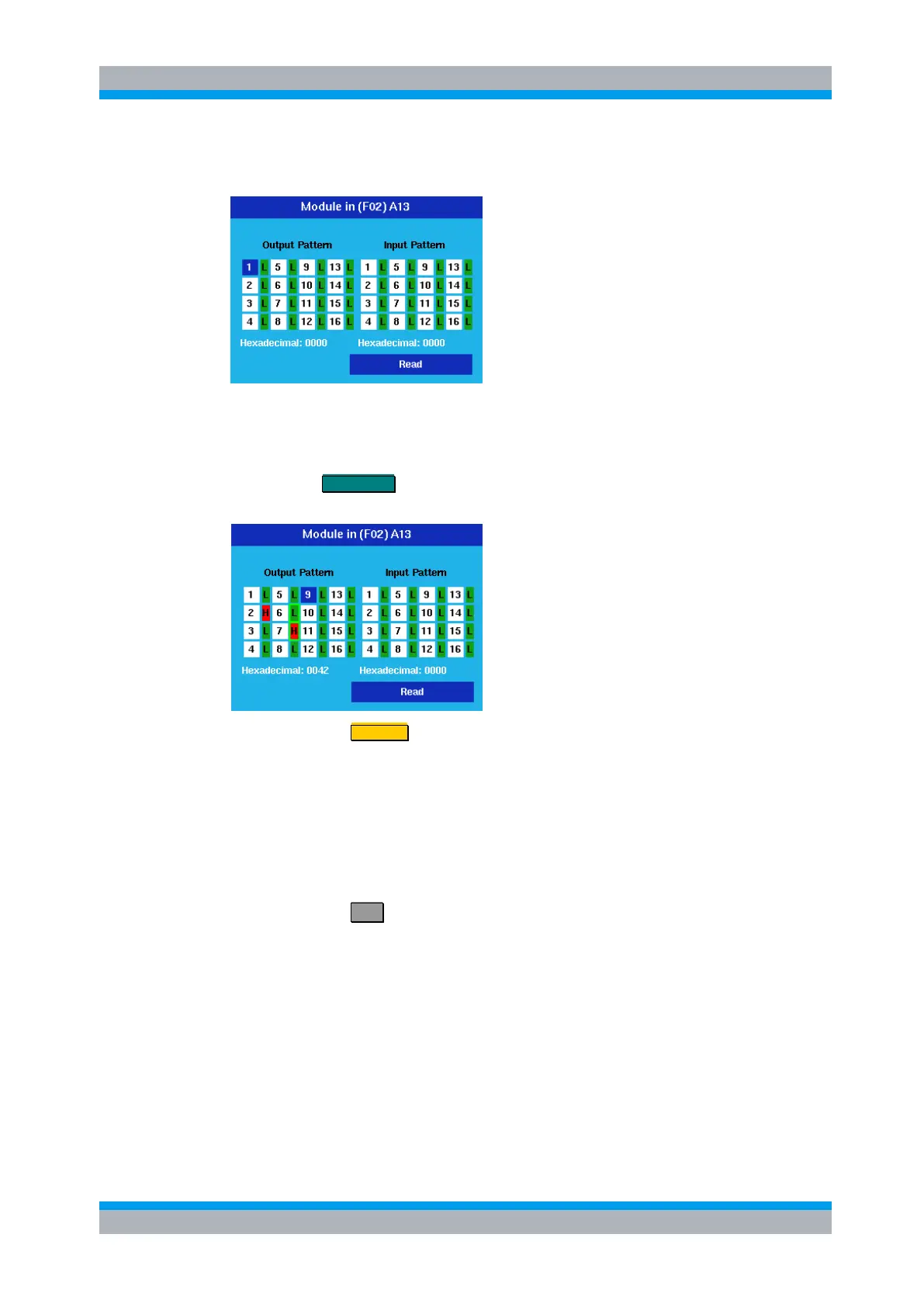

After selection of the R&S OSP-B103 module this dialog is opened.
With the cursor keys any of the 16 output channels can be chosen, indicated by the
blue color. In the example this is channel 1.
Pressing the FUNCTION key toggles this channel from low (L, dark green) to high (H,
red) and vice versa. The display of the channel in the dialog is changed accordingly.
Pressing the key STATUS toggles the selection of the channel.
A selected channel (channels 6 and 7 in this example) is displayed with a green
surrounding. All selected channels are taken over into a path configuration.
A non selected channel is not considered when defining a path configuration.
In addition to the single channel information a total of all 16 channels is shown as
hexadecimal value. Channel 1 corresponds to the lowest bit, having the value 1,
whereas channel 16 is the highest bit, having the value 8000.
Pressing the key OK will execute a read command reading the status of all input
channels. They will be displayed in dark green for low values (L) and in red for high
values (H).
In addition to the single channel information a total of all 16 channels is shown as
hexadecimal value. Channel 1 corresponds to the lowest bit, having the value 1,
whereas channel 16 is the highest bit, having the value 8000.
