The next block diagram shows the main functional groups of the R&S OSP130.

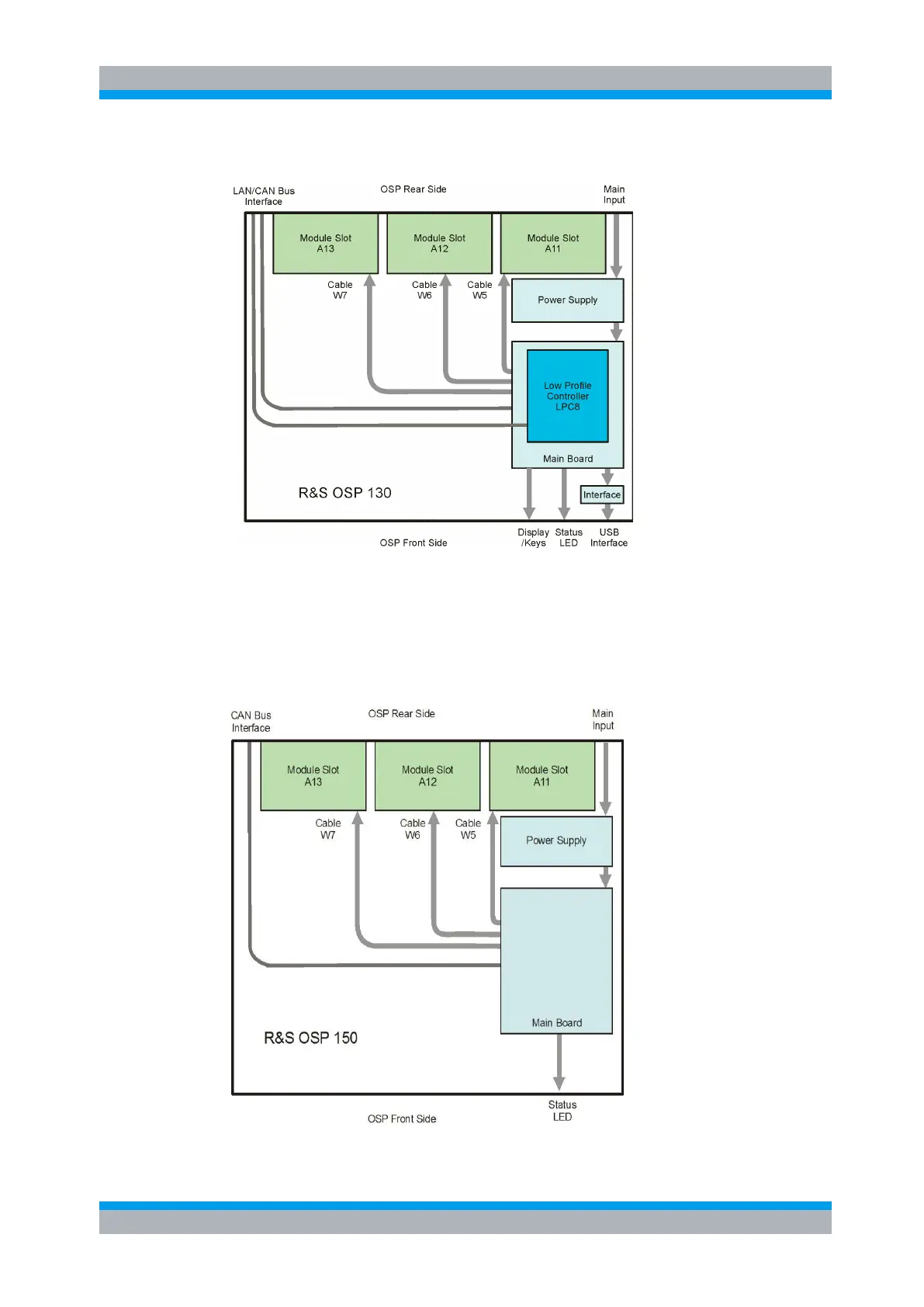

Figure 5-2: Block Diagram R&S OSP130
Additional to the OSP120, in the OSP130 the connection to the front side display unit
and keys is available for local operation. No connection to an external monitor is
available.
Finally, the block diagram of the OSP150 extension unit shows its main functional
blocks:
Figure 5-3: Block Diagram R&S OSP150
