R&S OSP Getting Started

Operating Manual 1505.3896.12 - 14 43

3.3.5 Addressing R&S OSP Modules

If the OSP Device is correctly registered (see previous chapter), all R&S OSP modules

available are displayed in the OSP Panel dialog. To control the R&S OSP modules,

the following ways are possible:

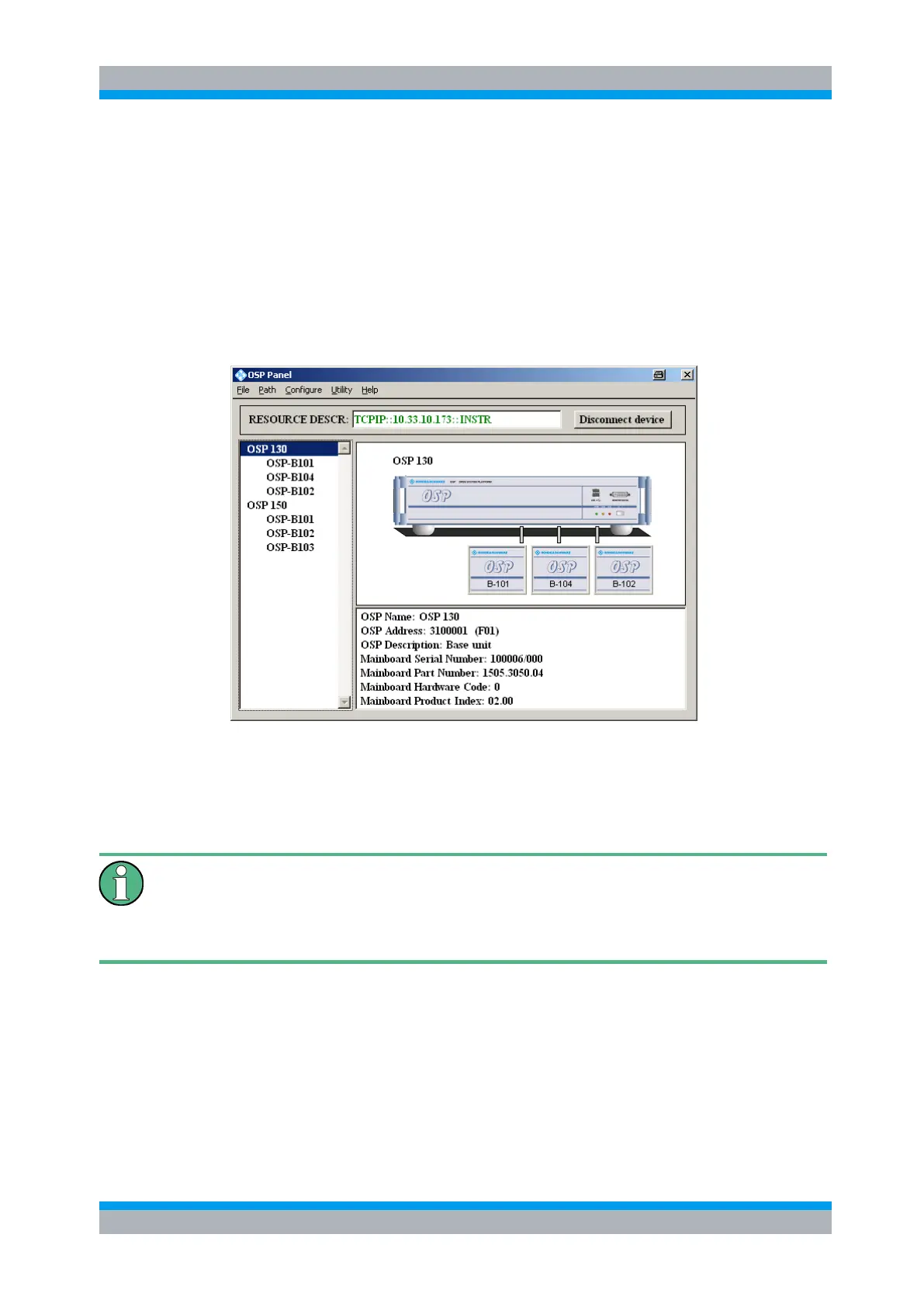

1. Select the required module displayed in the left field of the OSP Panel dialog.

2. Select the diagram of the required module in the upper right field of the OSP

Panel dialog.

By double-clicking the required R&S OSP module, a window is opened which shows

all the setup functions available for the selected module. The title line of that window

also indicates the slot where this module is placed, or both slots if the module has

double width (see also chapter 5.1.2). See the following chapters for the dialogs of the

different R&S OSP modules.

R&S OSP module configuration

If modules are configured in the R&S OSP but no modules are detected by the OSP

Panel (indicated in blue), please check that the R&S OSP device is registered

correctly. Refer to chapter 3.3.2 to register the R&S OSP device.

R&S OSP User Manual
