R&S OSP User Manual

R&S OSP Applications
Operating Manual 1505.3896.12 - 14 181

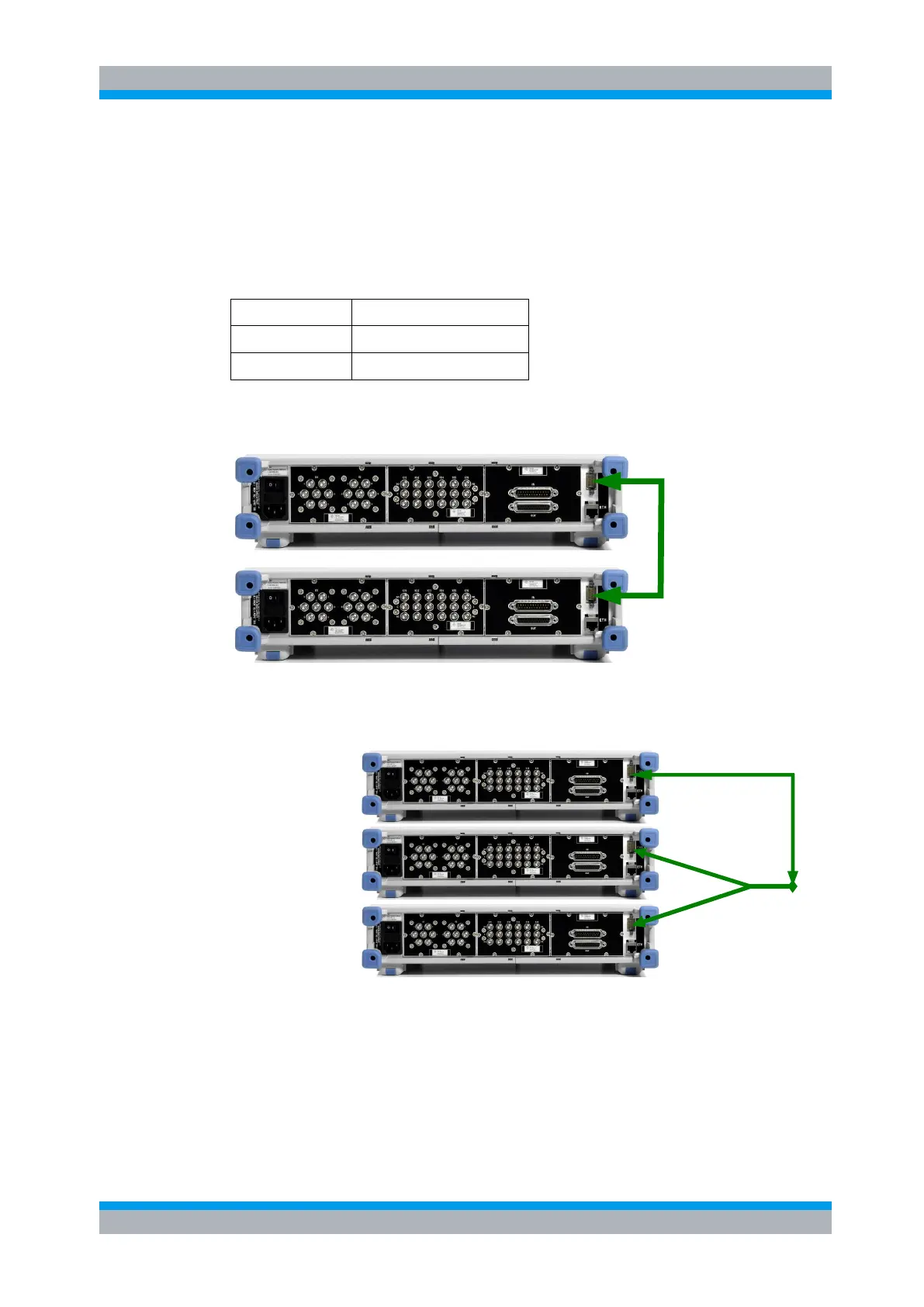

8.3.2 Connecting the R&S OSP150
8.3.2.1 Connection with Copper Cables
The R&S OSP150 is connected to the R&S OSP120 via CAN bus. For the CAN
connection, the following cables are available as accessories:
R&S OSP-Z101
CAN-BUS CABLE 0,5M
R&S OSP-Z102
CAN-BUS CABLE 5 M
R&S OSP-Z103
CAN-BUS Y CABLE 0,5M
To connect two instruments, i.e. R&S OSP120 or R&S OSP130 and R&S OSP150,
either the cable R&S OSP-Z101 or R&S OSP-Z102 (different cable length) is used.
See following setup.
R&S OSP-Z101/ Z102
If more than one R&S OSP150 is to be connected to the R&S OSP120 or R&S
OSP130, the cable R&S OSP-Z103 is used. This cable is a Y-type cable and allows to
loop the CAN bus to further extension units R&S OSP150.
R&S OSP 150
R&S OSP 120
OSP-Z103
OSP-Z101
R&S OSP 150
