Operating Manual 1505.3896.12 - 14 53
3.3.10 Controlling the R&S OSP-B108
After selection of the R&S OSP-B108 module the following dialog is opened.
The module R&S OSP-B108 contains one switches of 4P6T type, which is shown in
the OSP-B108 dialog.
Clicking on any of the six positions this relay will switch to the associated terminal.
Clicking on a closed position will open it and reset this relay.
4P6T switch
Note that for this type of relay only one terminal (1 of 6) can be activated at the same
time. If no terminal is activated, the relay is in open position.
The buttons K1 is not required for manual operation of the switches, but for defining a
path configuration (see chapter 3.4).
A button K1 and/or K2 in grey color indicates that this relay is not selected. A non
selected relay is not considered when defining a path configuration.
To take over particular relays into the path configuration, the relay buttons must be
selected by clicking on each of the relay buttons required. The selected relay is
displayed with a button in green color. All relays whose relay buttons are selected are
taken over into a path configuration.
Pressing the Shift key while clicking on a relay button will toggle between selecting all
relays of this module and deselecting all of them.

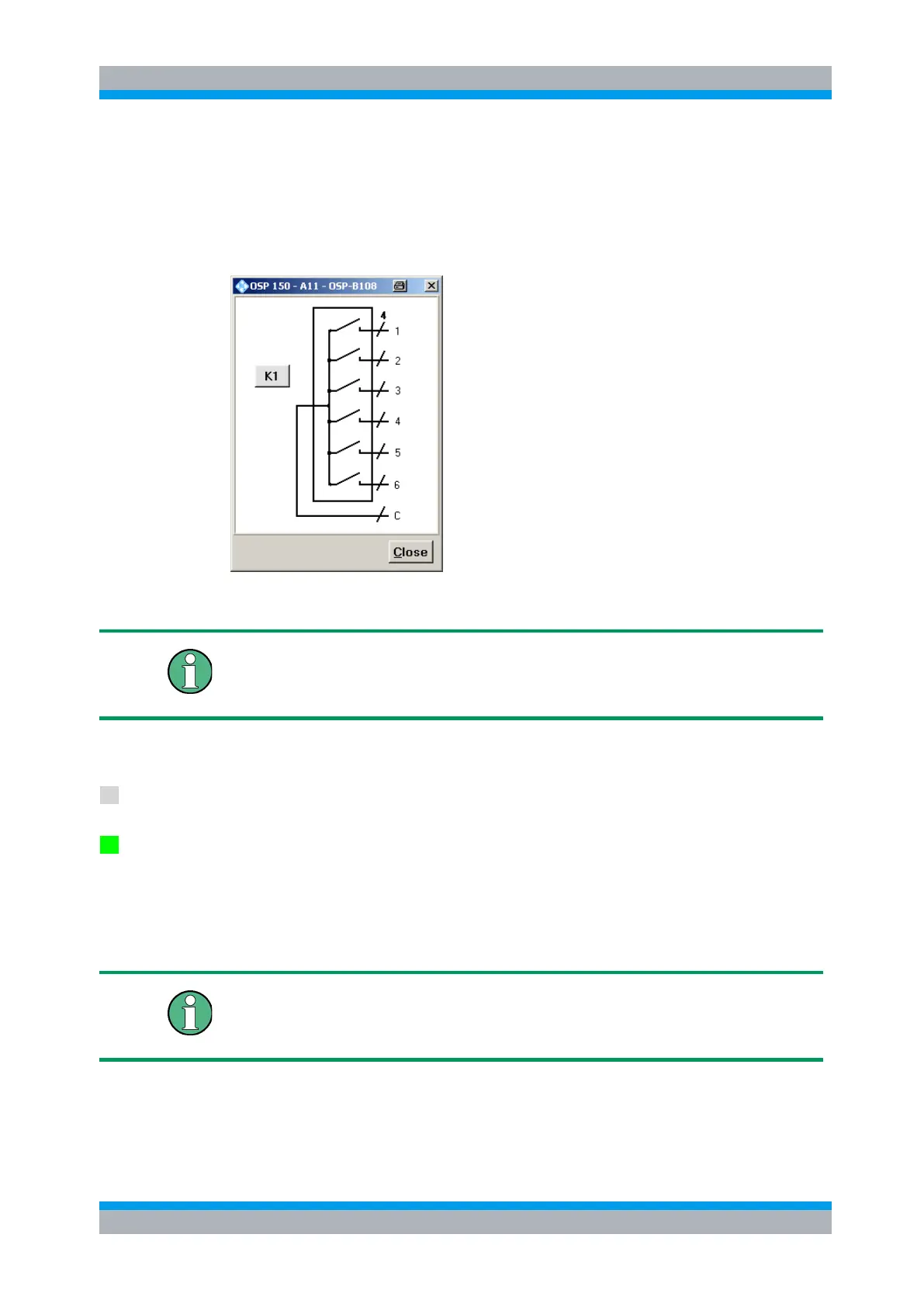

OSP-B108 dialog
When the dialog for operation of the R&S OSP-B108 module is opened, the actual
relay setting of this module is read back from the hardware and displayed.
