R&S OSP Instrument Functions
Operating Manual 1505.3896.12 - 14 121

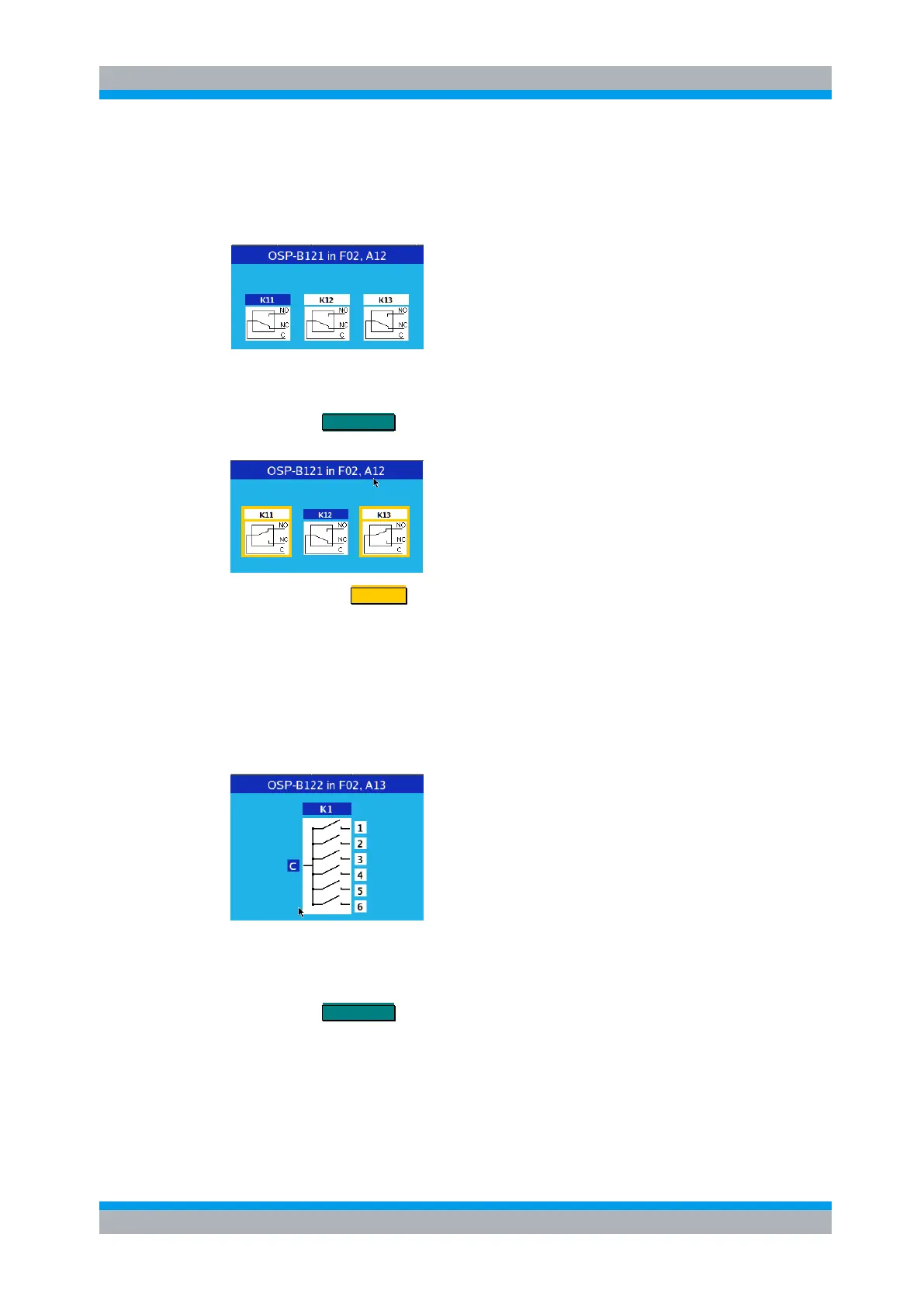

5.3.8 Using the R&S OSP-B121
After selection of the R&S OSP-B121 module this dialog is opened.
With the cursor keys one of the three relays can be chosen, indicated by the blue color
in the relay name.
Pressing the FUNCTION key toggles the relay from NC to NO and vice versa. The
display of the switch in the dialog is changed accordingly.
Pressing the key STATUS toggles the selection of the relay.
A selected relay (K11 and K13 in this example) is displayed with a green surrounding.
All selected relays are taken over into a path configuration.
A non selected relay is not considered when defining a path configuration.
5.3.9 Using the R&S OSP-B122
After selection of the R&S OSP-B122 module this dialog is opened.
With the cursor up/down keys you can chose any terminal of that relay, indicated by
the blue color. In the above example the common terminal C is selected; all six
terminals are open.
Pressing the FUNCTION key closes the chosen relay position. With the Common
terminal chosen (“C” displayed in blue) the relay is opened. The display of the switch in
the dialog is changed accordingly.
