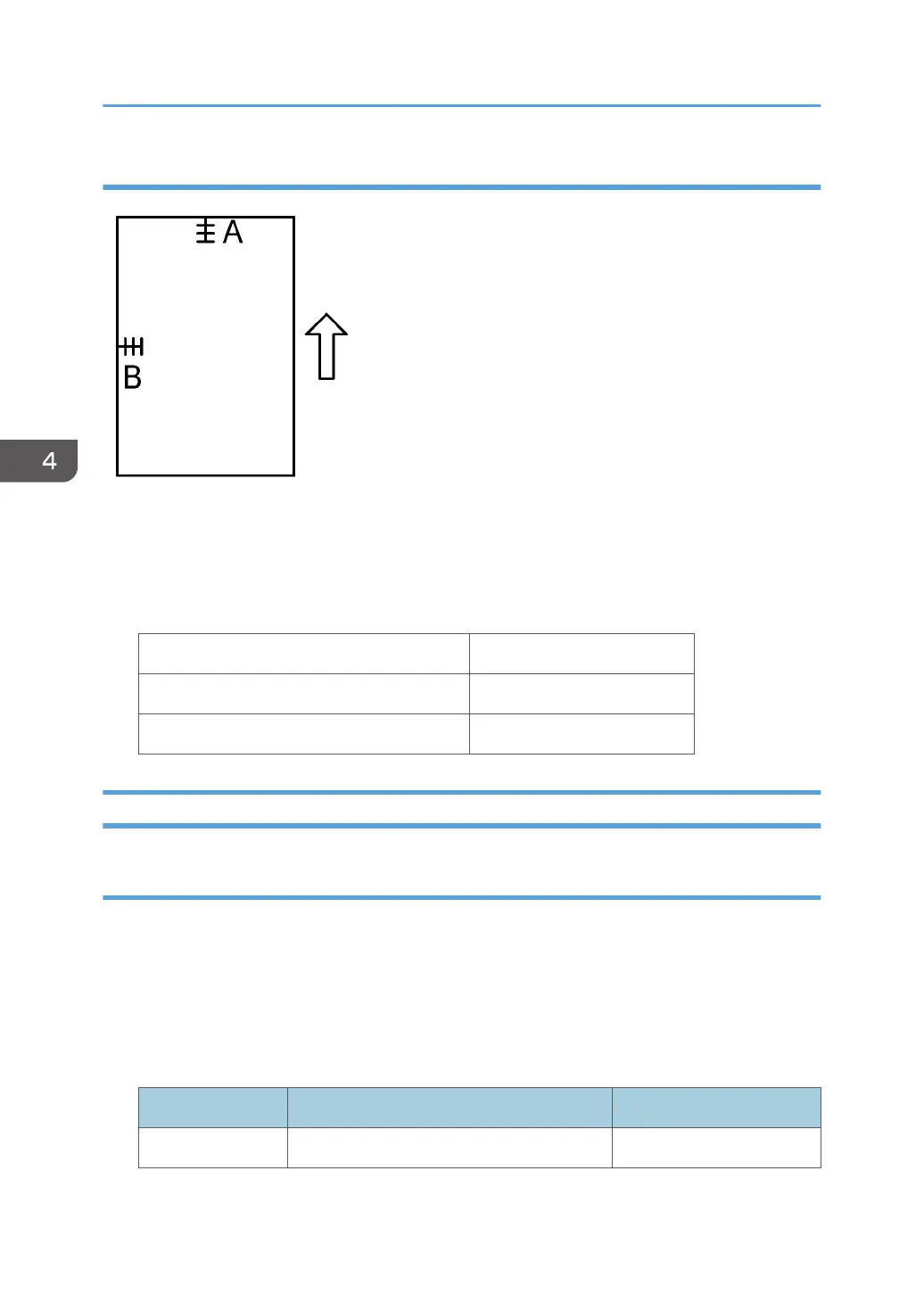

Scanner leading edge and side-to-side registration
A: Leading Edge Registration
1.
Put the test chart on the exposure glass. Then make a copy from one of the feed stations.
2.
Check the leading edge and side-to-side registration. Adjust the following SP modes if necessary.
Standard: 0 ± 2mm for the leading edge registration, 0 ± 2.5mm for the side-to-side registration.
SP mode
Leading Edge Registration SP4-010-001
Side-to-Side Registration SP4-011-001
ARDF
ARDF side-to-side, leading edge registration and trailing edge
Use A4/LT paper to make a temporary test chart as shown above.
1. Put the temporary test chart on the ARDF. Then make a copy from one of the feed stations.
2.
Check the registration. Check the leading edge and side-to-side registration. Adjust the following
SP modes if necessary.
Standard: 4.2 ± 2 mm for the leading edge registration, 2 ± 1 mm for the side-to-side registration.
Use the following SP modes to adjust if necessary.
SP Code What It Does Adjustment Range
SP6-006-001 Side-to-Side Regist: 1st ± 2.0 mm
4. Replacement and Adjustment
160
