Ricoh AFICIO MP C305SP Field Service Manual

No. Description Q’ty
2 Harness 1
Installation Procedure
• Unplug the copier power cord before starting the following procedure.
1. Remove the rear right cover ( p.178).
2. Remove the rear cover ( p.177).

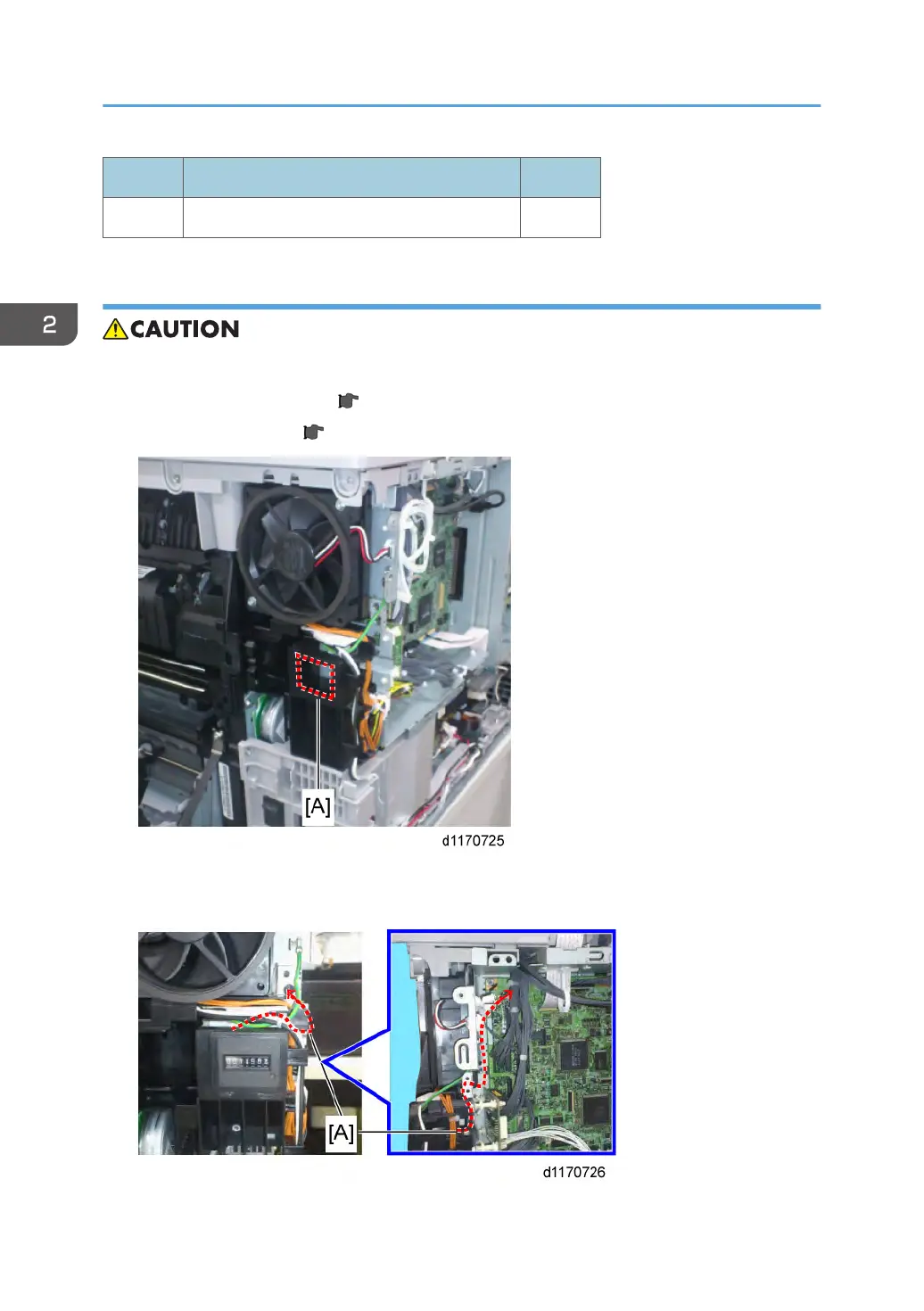

3. Connect the harness to the mechanical counter.
4. Insert the mechanical counter into the place [A] at the rear right of the machine (Hooks x 2).
