7.

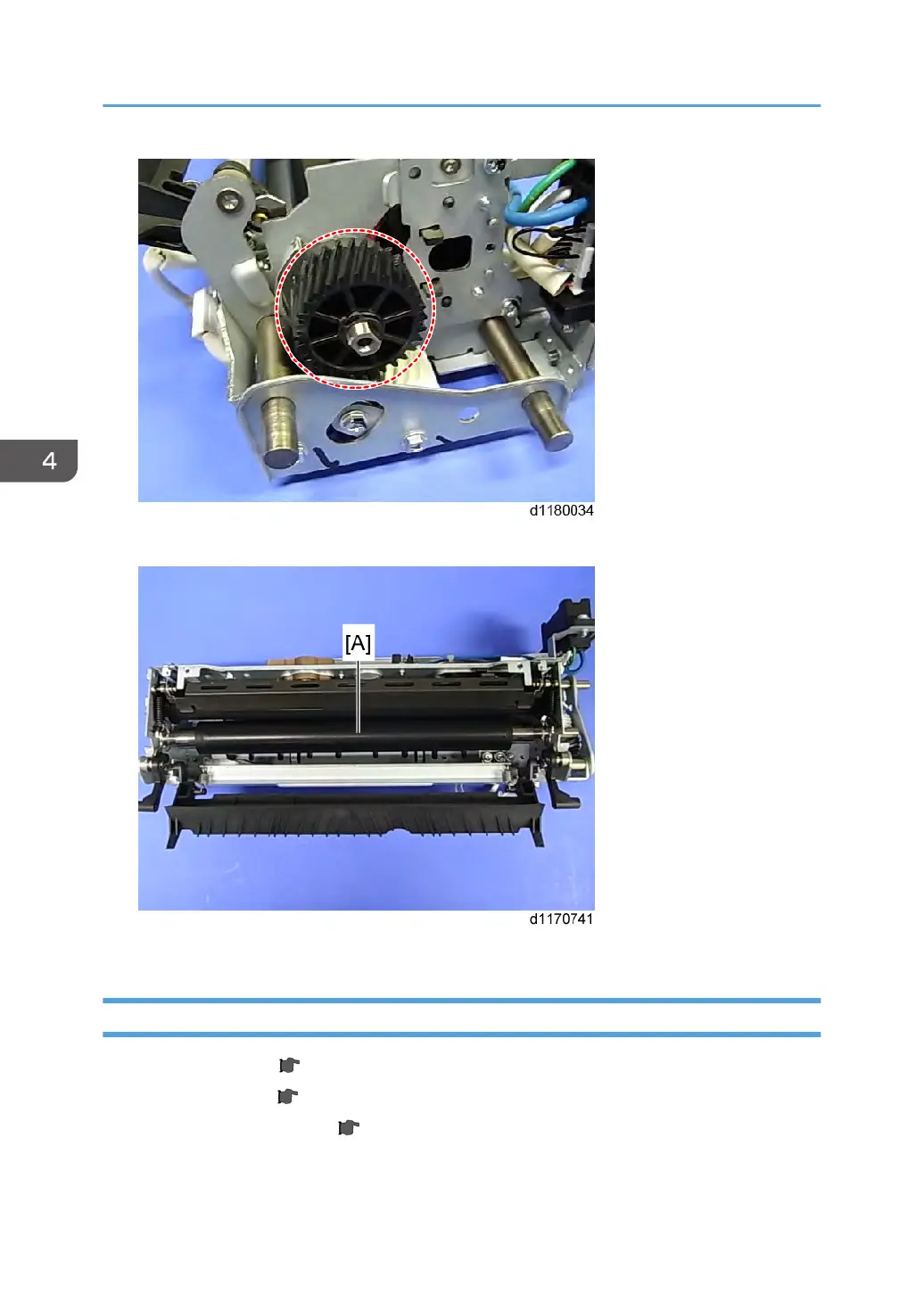

Remove the C-ring, pressure gear and bearing.
8.
Pressure roller [A]
Fusing Sleeve Belt Assembly
1.
Fusing upper cover (
p.245)
2.
Fusing lower cover (
p.245)
3.
Fusing entrance guide plate (
p.246)
4. Replacement and Adjustment
250
251
253
