5. Remove one screw of the bracket ( x 1).

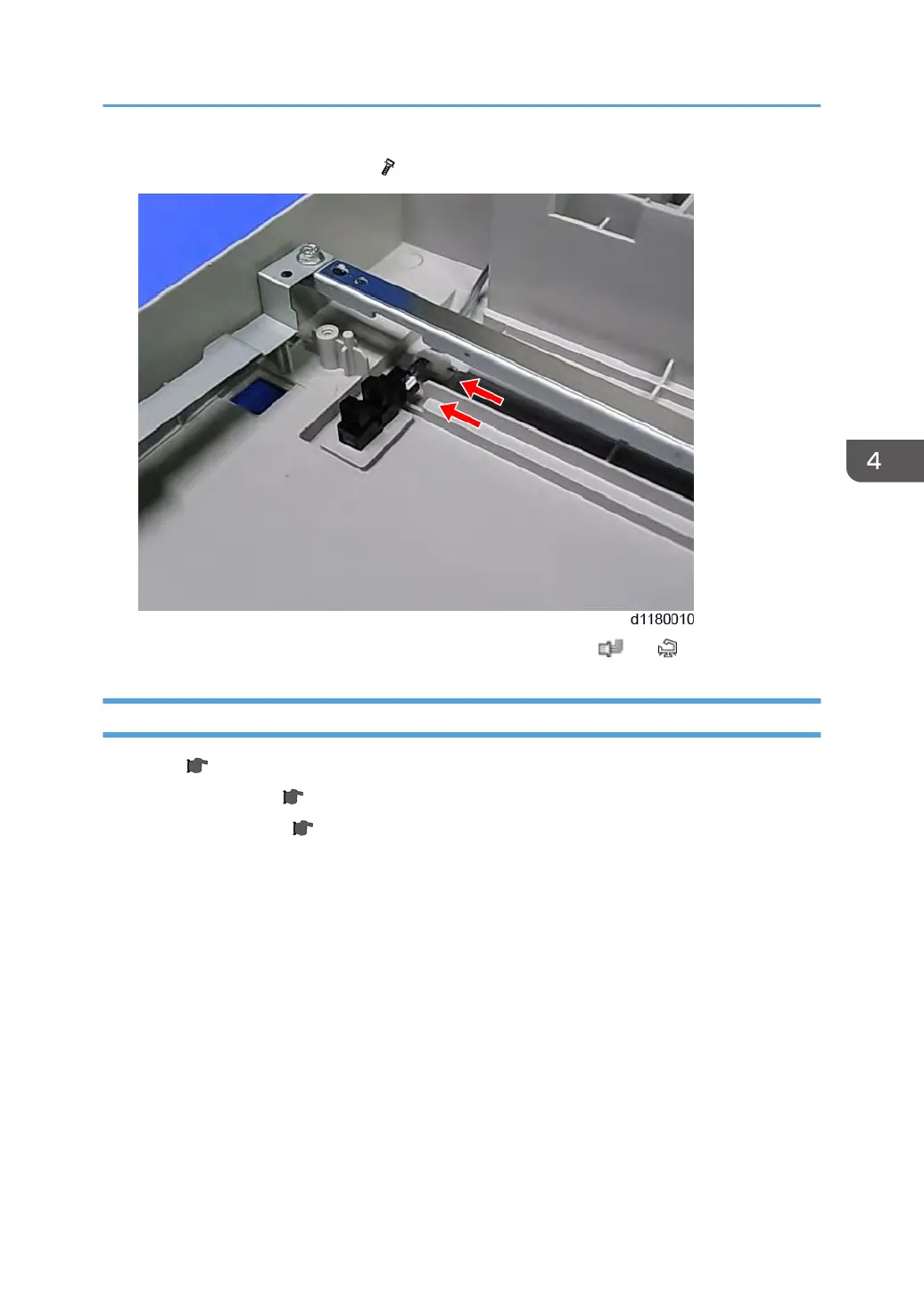

6. Remove the carriage HP sensor while lifting up the bracket slightly ( x 1, x 1, hook x 2).
Scanner Motor
1. ARDF ( p.315)
2. Scanner front cover ( p.186 "Scanner Unit")
3. Scanner upper cover ( p.188 "ARDF Cover Open / Close Sensor")
Scanner
191
