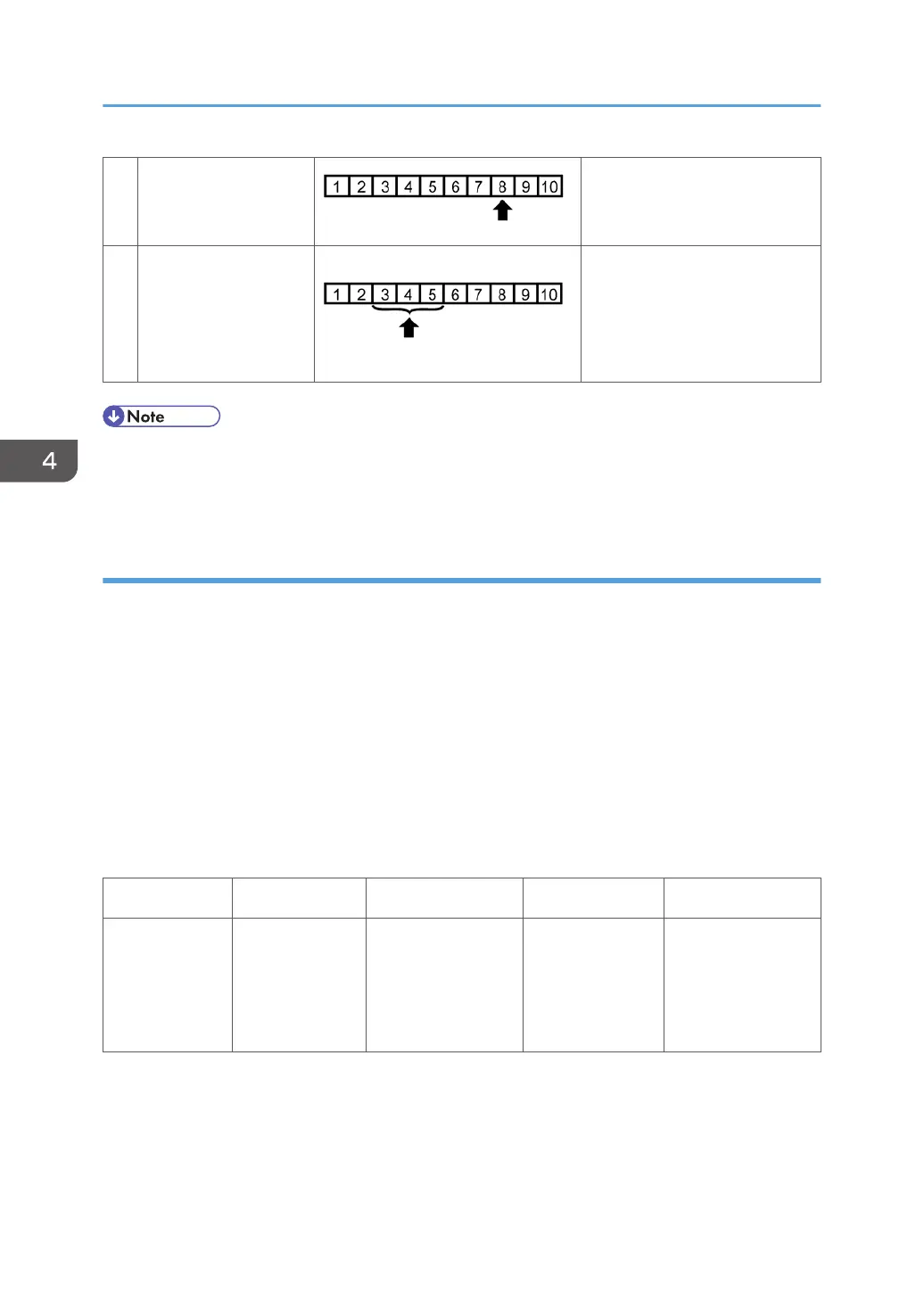

3 Shadow (High ID) (K)
Adjust the offset value so that
the density of level 8 matches
that of level 8 on the C-4 chart.
4 Highlight (Low ID) (K)
Adjust the offset value so that
dirty background does not show
on the copy and the density of
level 3 is slightly lighter than that
of level 3 on the C-4 chart.
• Text parts of the test pattern cannot be printed clearly after you adjust "shadow" as shown above.
At this time, check if the 5 line/mm pattern at each corner is printed clearly. If it is not, adjust the
offset value of "shadow" again until it is.
Printer Mode
There are six adjustable modes (select these modes with printer SP1-102-001):
• 1200 x 1200 photo mode
•
1200 x 1200 text mode
• 2400 x 600 photo mode
• 2400 x 600 text mode
• 1800 x 600 photo mode
• 1800 x 600 text mode
• 600 x 600 photo mode
• 600 x 600 text mode
K C M Y
Highlight
Shadow
Middle
IDmax
SP1-104-1
SP1-104-2
SP1-104-3
SP1-104-4
SP1-104-21
SP1-104-22
SP1-104-23
SP1-104-24
SP1-104-41
SP1-104-42
SP1-104-43
SP1-104-44
SP1-104-61
SP1-104-62
SP1-104-63
SP1-104-64
- Adjustment Procedure -
1.
Do ACC for the printer mode.
2.
Turn the main power off and on.
3. Enter SP mode.
4. Replacement and Adjustment
168
