Ricoh AFICIO MP C305SP Field Service Manual

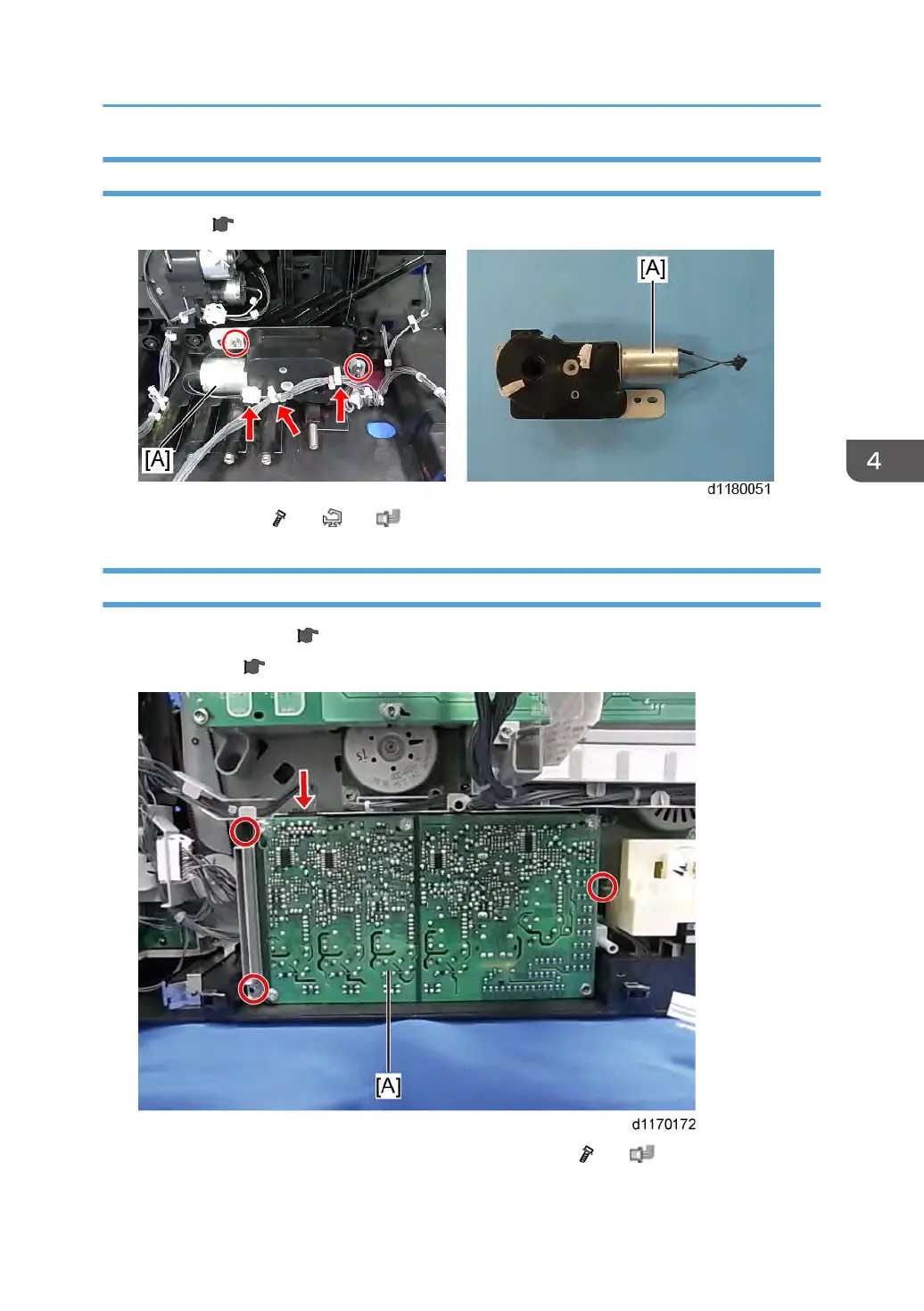

Tray Lift Motor
1. Drive unit ( p.232)
2. Tray lift motor [A] ( x 2, x 2, x 1)
Duplex Clutch / By-pass Feed Clutch / Registration Clutch / Paper Feed Clutch
1. Paper transport motor ( p.232)
2. HVPS (PCDU) ( p.306)
3. Remove three screws and one connector of the HVPS (ITB) [A] ( x 3, x 1).
Drive
239
