Development Motor (CMY) / Drum Motor (CMY) / Drum Motor (K)
1. HVPS (ITB) with the bracket ( p.239 "Duplex Clutch / By-pass Feed Clutch / Registration
Clutch / Paper Feed Clutch")

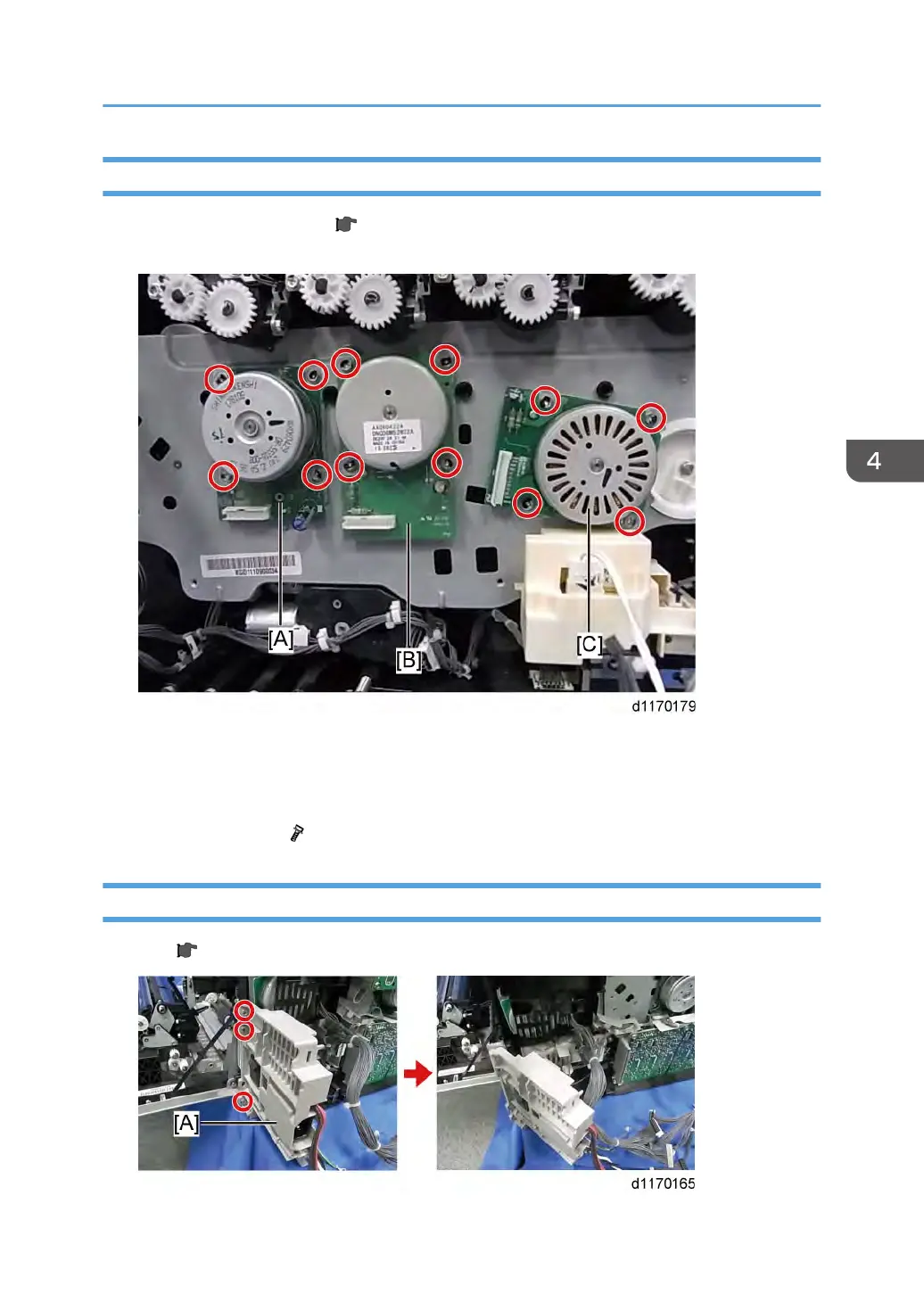

[A]: Development motor (CMY)
[B]: Drum motor (CMY)
[C]: Drum motor (K)
2. Remove each motor ( x 4 each).
Fusing Motor
1. PSU ( p.301)
Drive
