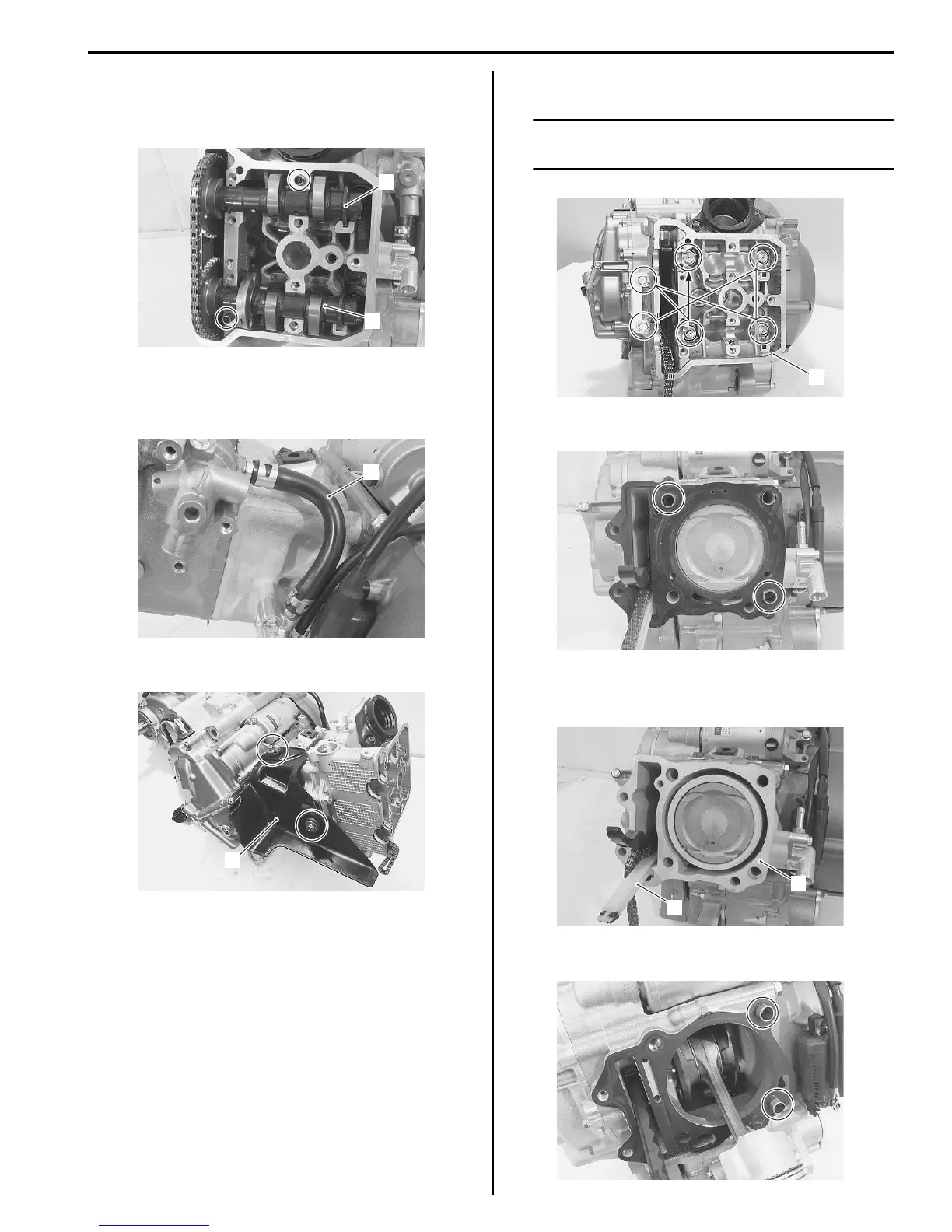

Engine Mechanical: 1D-17
6) Remove the intake camshaft (8) and exhaust
camshaft (9).
7) Remove the dowel pins.
Cylinder Head and Cylinder
1) Remove the water bypass hose (1).
2) Remove the heat shield (2).
3) Remove the cylinder head (3).
NOTE
Be sure to loosen the cylinder head bolts
evenly and in a crisscross pattern.
4) Remove the dowel pins and gasket.
5) Remove the cam chain guide No. 1 (4).
6) Remove the cylinder (5).
7) Remove the dowel pins and gasket.
8
9
I705H1140008-01
1
I705H1140009-01
2
I705H1140010-02
3
I705H1140011-02
I705H1140012-01
4
5
I705H1140013-02
I705H1140014-01
