1G-8 Fuel System:
Installation
Install the fuel tank in the reverse order of removal. Pay
attention the following points:
• Tighten the fuel tank bolts.
• Remove the fuel filler cap (1) and install the fuel drain
tray (2) on the fuel inlet.
CAUTION
!
After the fuel drain tray (2) has been fitted on
the fuel tank, the fuel tank filler cap (1) should
be fitted to the fuel tank.
• Clamp the wiring harness surely.

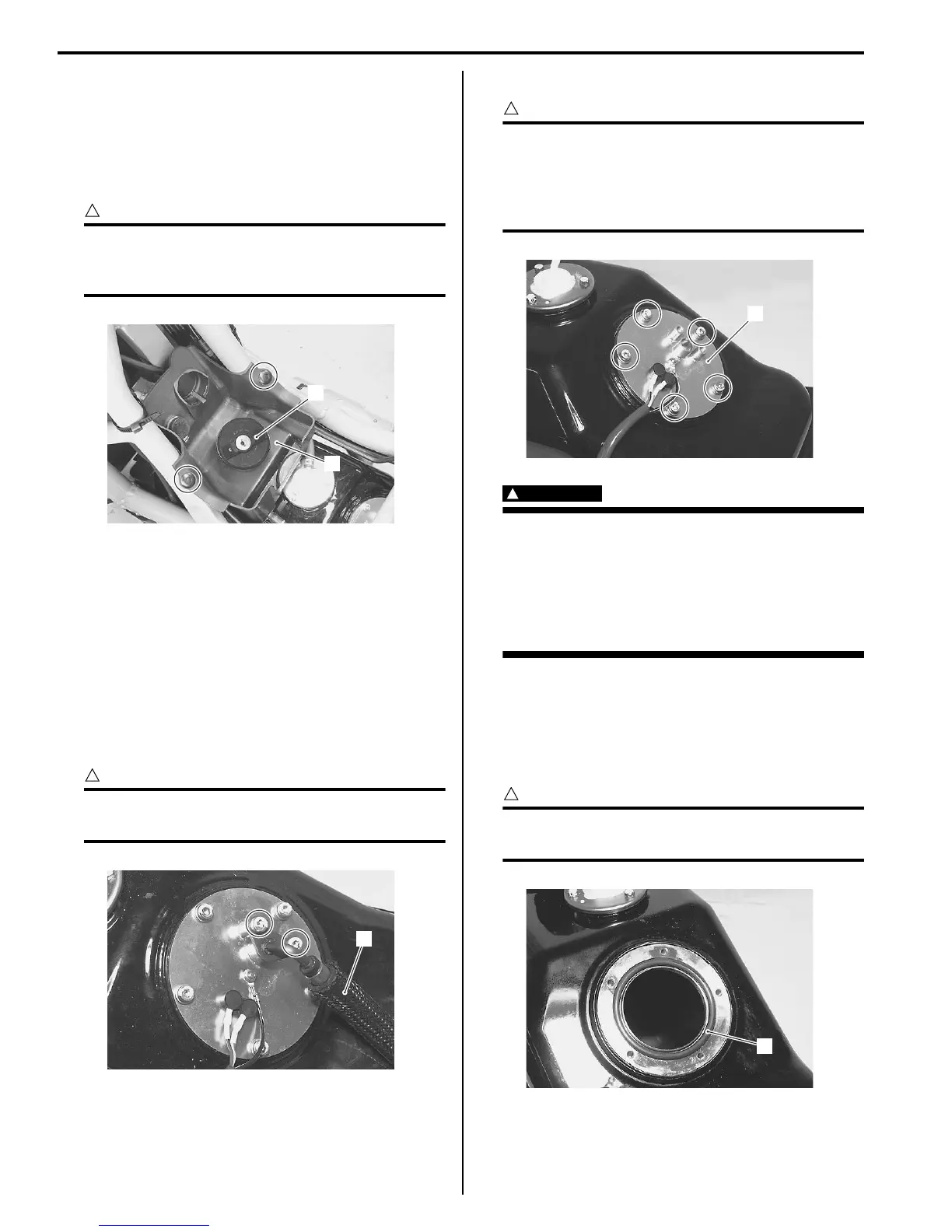

Fuel Pump Assembly Removal and Installation
B705H11706010
Removal
1) Remove the front box. Refer to “Front Box Removal
and Installation in Section 9D (Page9D-18)”.
2) Loosen the fuel tank bolt and move the fuel tank
rearward.
3) Disconnect the fuel hose (1).
CAUTION
!
After the fuel hose (1) has been
disconnected, fit a blind plug to the opening.
4) Remove the fuel pump assembly (2).
CAUTION
!
When removing the fuel pump assembly, take
care not to cause damage to it. If such a
possibility is thought to exist, remove the
fuel tank from the body. Refer to “Fuel Tank
Removal and Installation (Page1G-7)”.
WARNING
!
• Use caution to minimize spillage of
gasoline.
• Spilled gasoline should be wiped off
immediately.
• Keep away from fire or spark.
• Work in a well-ventilated area.
Installation
Install the fuel tank assembly in the reverse order of
removal. Pay attention the following points:
• Apply engine oil to the O-ring (1) and install the fuel
tank.
CAUTION
!
Replace the fuel pump O-ring and fuel hose
O-ring with the new ones.
2
1
I705H1170004-05
1
I705H1170005-03
2
I705H1170006-01
1
I705H1170007-01
To Next Page
