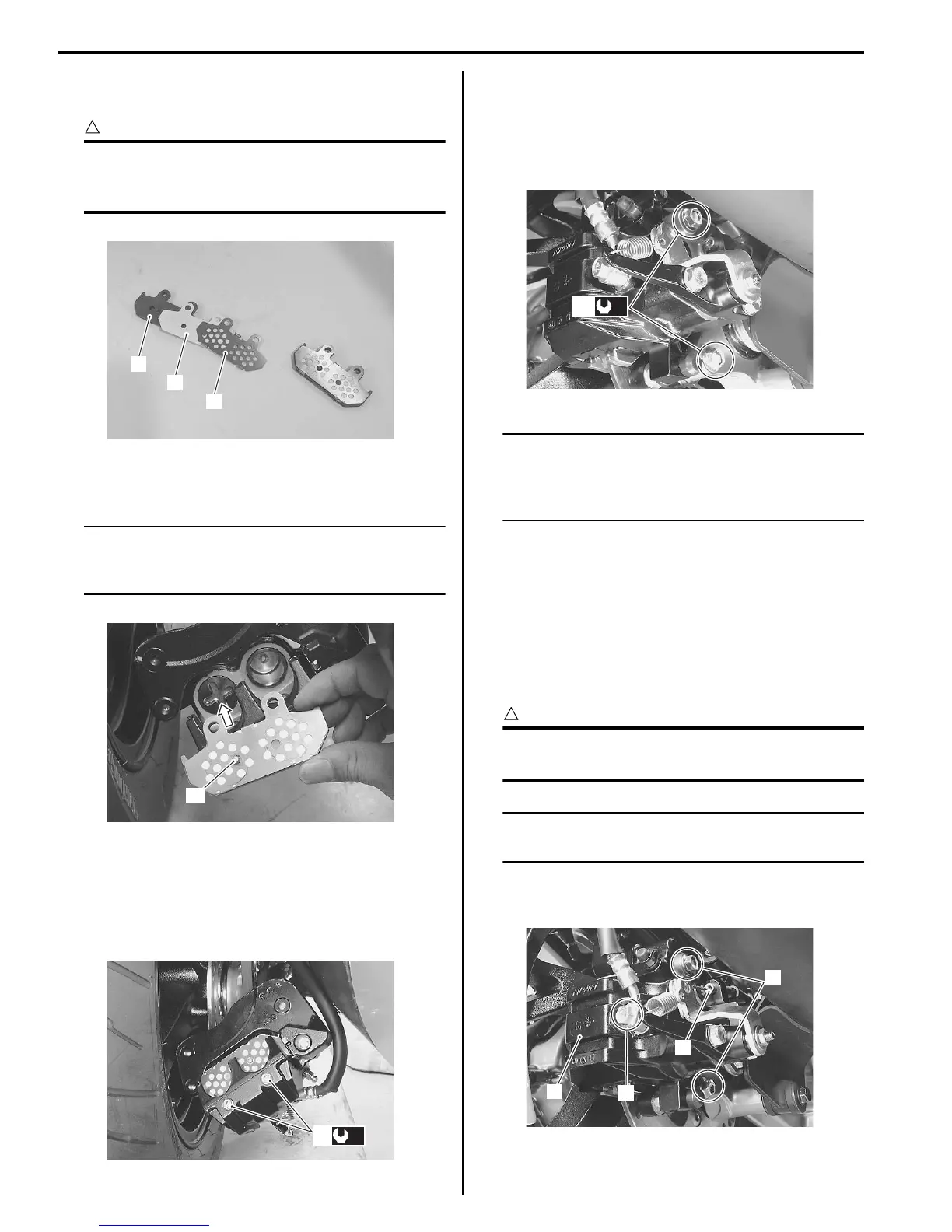

4C-3 Rear Brakes:
5) Assemble the new pads (4), shims (5) and back
plates (6).
CAUTION
!
Replace the brake pad as a set, otherwise
braking performance will be adversely
affected.
6) Locate the projection “A” of the brake pad to the
center of caliper piston groove.
NOTE
Make sure that the projection of the pad is
seated onto the retainer on the caliper
bracket.
7) Tighten the pad mounting pins (7) to the specified
torque.
Tightening torque
Pad mounting pin (a): 18 N·m (1.8 kgf-m, 13.0 lb-
ft)
8) Tighten the caliper mounting bolts (8) to the specified
torque.
Tightening torque
Caliper mounting bolt (b): 23 N·m (2.3 kgf-m,
16.5 lb-ft)
NOTE
After replacing the brake pads, pump the
brake lever several times in order to operate
the brake correctly and then check the brake
fluid level.
Rear Brake Caliper Removal and Installation
B705H14306006
Removal
1) Drain the brake fluid. Refer to “Brake Fluid
Replacement in Section 4A (Page4A-5)”.
2) Remove the brake hose from the caliper by
removing the union bolt (1) and catch the brake fluid
in a suitable receptacle.
CAUTION
!
Place a rag underneath the union bolt on the
brake caliper to catch any split brake fluid.
NOTE
Slightly loosen the brake pad mounting pins
to facilitate later disassembly, if necessary.
3) Remove the brake-lock cable (2), caliper mounting
bolts (3) and brake caliper (4).
4
5
6
I705H1430038-01
“A”
I705H1430034-03
(a)
7
I705H1430007-02
(b)
8
I705H1430008-02
2
1
3
4
I705H1430009-02
