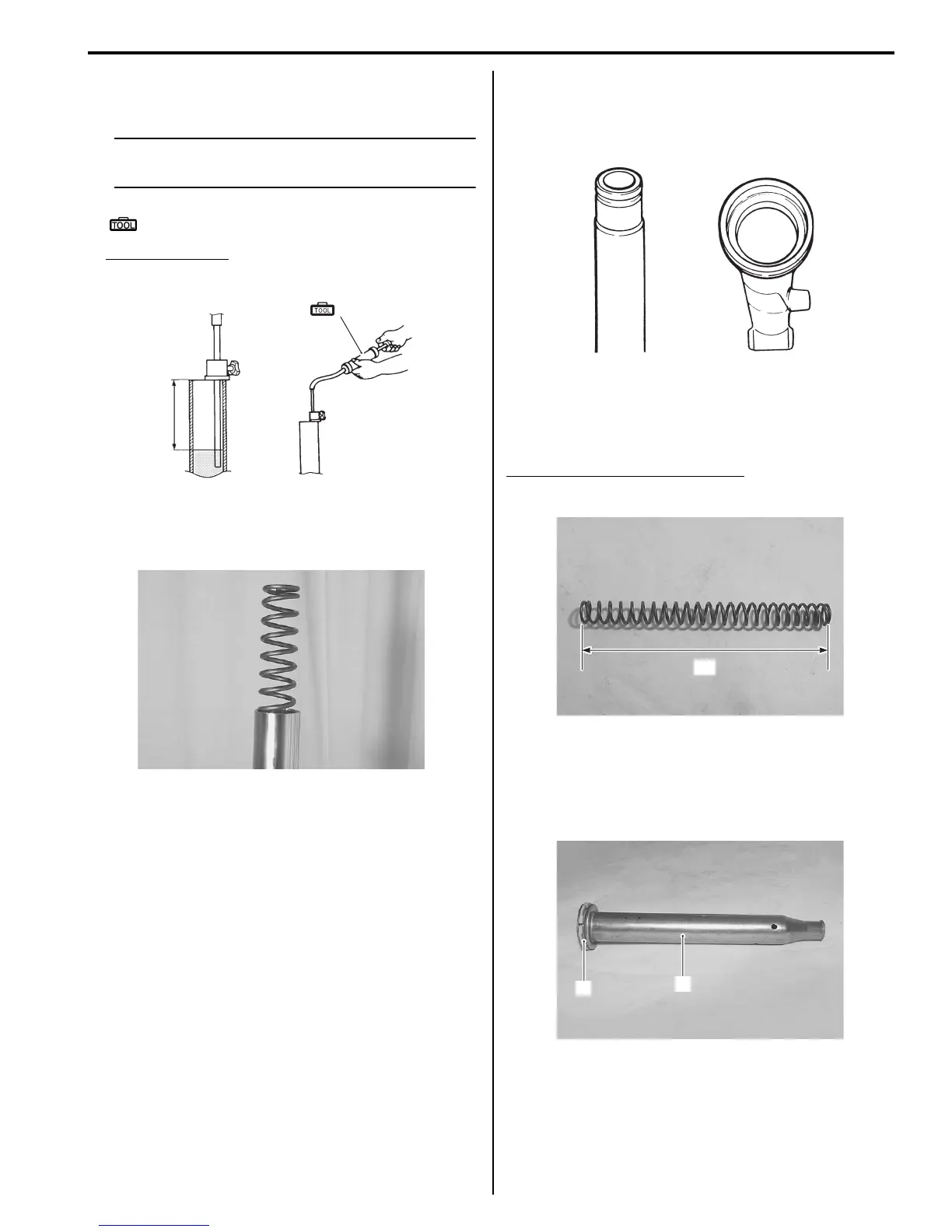

Suzuki AN400 Service Manual

Front Suspension: 2B-8
• Hold the front fork vertically and adjust the fork oil
level using the special tool.
NOTE
When adjusting the fork oil level, remove the
fork spring and compress the inner tube fully.
Special tool
(A): 09943–74111 (Fork oil level gauge)
Fork oil level “a”
87 mm (3.43 in)
Front fork spring
• Install the fork spring into the front fork.
Front Fork Inspection
B705H12206004
Refer to “Front Fork Inspection in Section 0B (Page0B-
16)”.
Front Fork Parts Inspection
B705H12206009
Refer to “Front Fork Disassembly and Assembly
(Page2B-3)”.
Inspect the following parts.
Inner / Outer Tubes
Inspect the inner tube sliding surface and outer tube
sliding surface for scuffing. If any defects are found,
replace them with the new ones.
Fork Spring
Measure the fork spring free length. If it is shorter than
the service limit, replace it with a new one.
Front fork spring free length “a”
347.6 mm (13.39 in)
Cylinder / Cylinder Ring
Inspect the cylinder (1) and cylinder ring (2) for wear or
damage. If any defects are found, replace the cylinder or
cylinder ring with a new one.
(A)
“a”
I705H1220021-01
I705H1220022-01
I649G1220035-02
“a”
I705H1220023-01
1
2
I705H1220024-01
