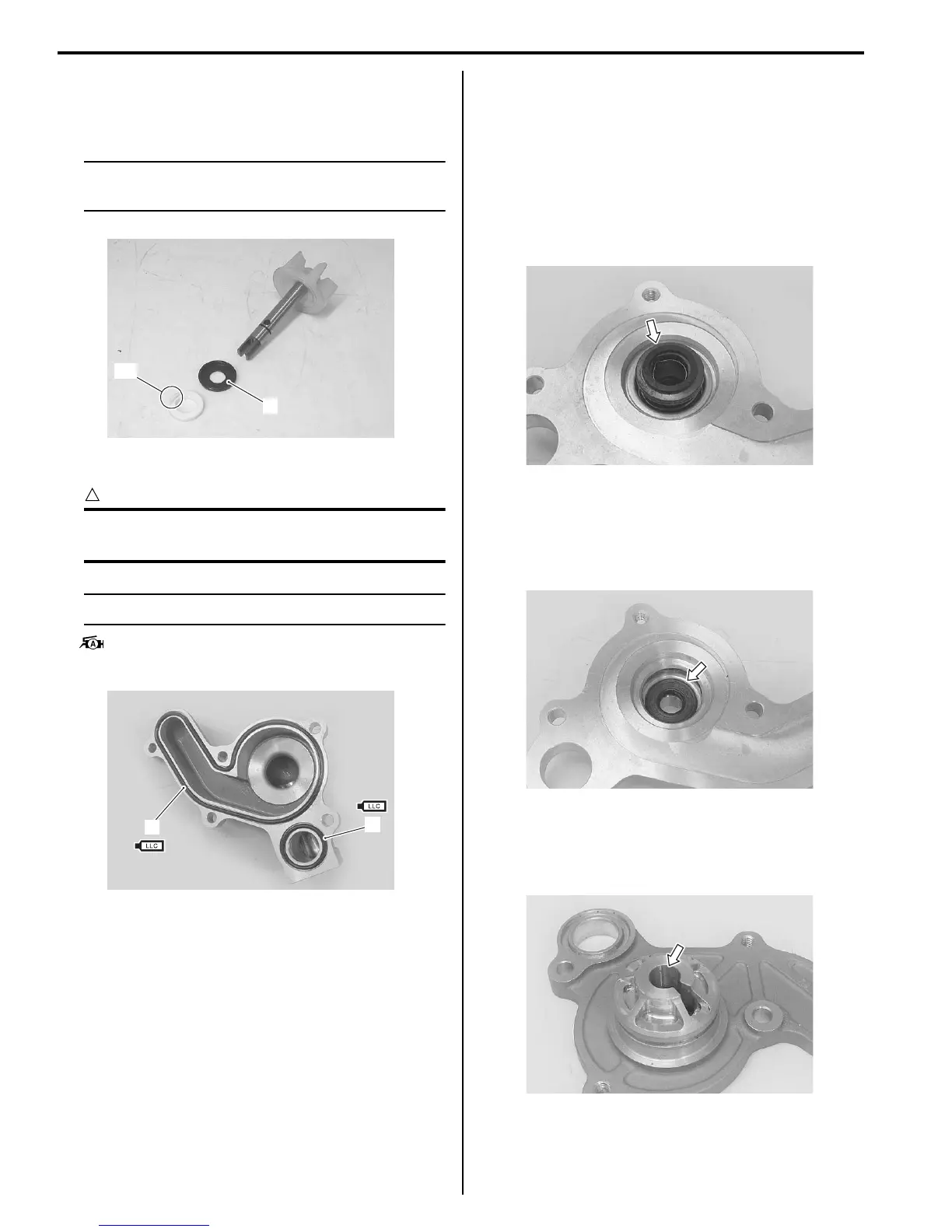

1F-17 Engine Cooling System:
• Install the rubber seal (1) into the impeller.
• After wiping off the oily or greasy matter from the
mechanical seal ring, install it into the impeller.
NOTE
The paint marked side “C” of mechanical seal
ring faces the rubber seal.
• Install the new O-rings (2), (3).
CAUTION
!
Use the new O-rings to prevent engine
coolant leakage.
NOTE
Apply engine coolant to the O-ring (2) and (3).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
Water Pump Related Parts Inspection
B705H11606023
Refer to “Water Pump Disassembly and Assembly
(Page1F-15)”.
Mechanical Seal
Visually inspect the mechanical seal for damage, with
particular attention given to the sealing face.
Replace the mechanical seal that shows indications of
leakage.
Oil Seal
Visually inspect the oil seal for damage, with particular
attention given to the lip.
Replace the oil seal that shows indications of leakage.
Impeller Shaft Journal
Visually inspect the journal for damage or scratch.
Replace the water pump body if necessary.
1
“C”
I705H1160046-03
2
3
I705H1160047-03
I705H1160048-02
I705H1160049-04
I705H1160050-02
