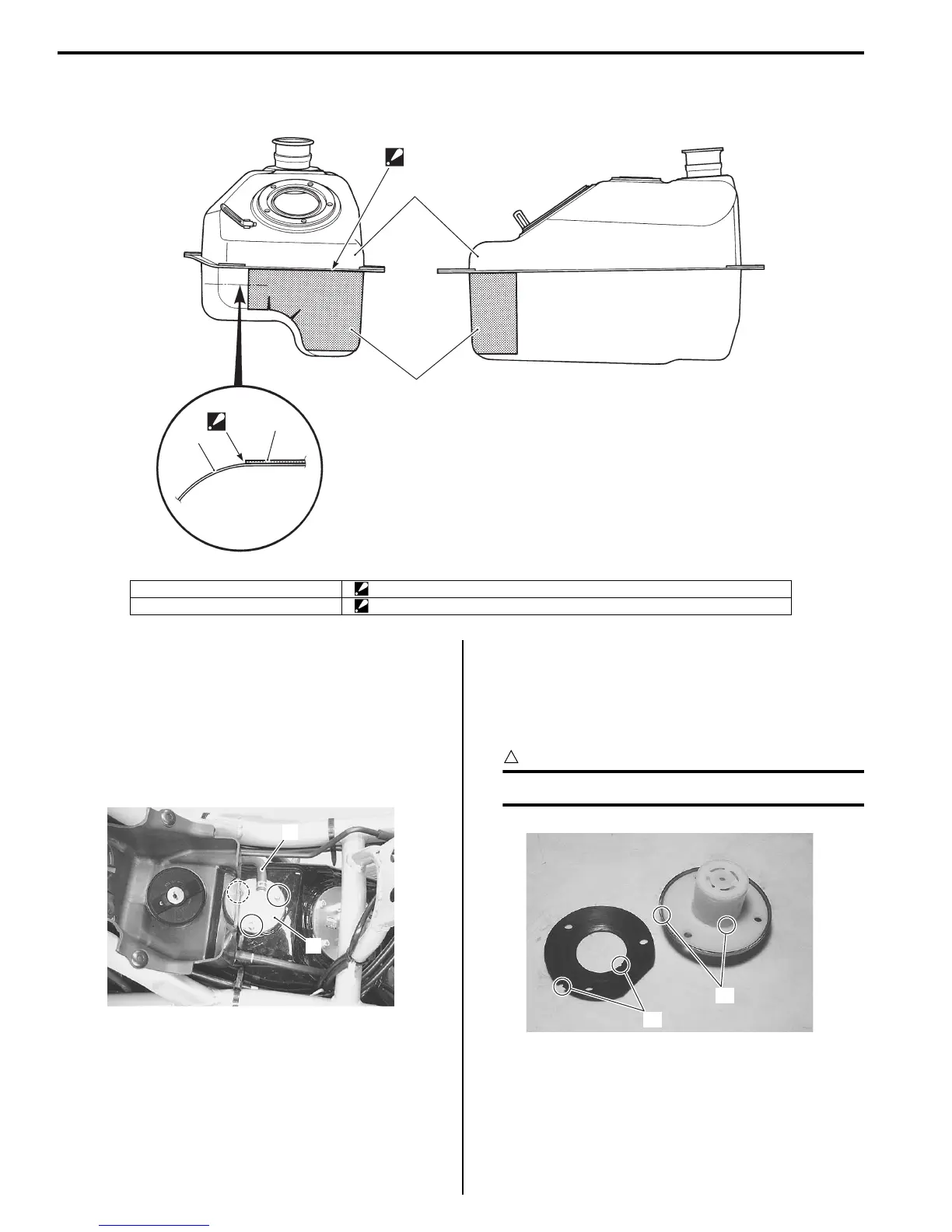

1G-6 Fuel System:
Fuel Tank Heat Shield Construction
B705H11706026
Fuel Cut Valve Removal and Installation
B705H11706002
Removal
1) Remove the front box. Refer to “Front Box Removal
and Installation in Section 9D (Page9D-18)”.
2) Disconnect the hose (1) and remove the fuel cut
valve (2).
Installation
Install the fuel cut valve in the reverse order of removal.
Pay attention the following points:
Install the fuel cut valve with its protrusions “A”
engaged with cutaway “B” on the gasket.
CAUTION
!
Replace the gasket with a new one.
2
2
1
1
“B”
“A”
I705H1170041-01
1. Fuel tank “A”: Match the upper end of the fuel tank heat shield with the flange base.
2. Fuel tank heat shield “B”: Match the fuel tank heat shield with the R-edge.
2
1
I705H1170026-04
“B”
“A”
I705H1170001-02
