Suzuki AN400 Service Manual

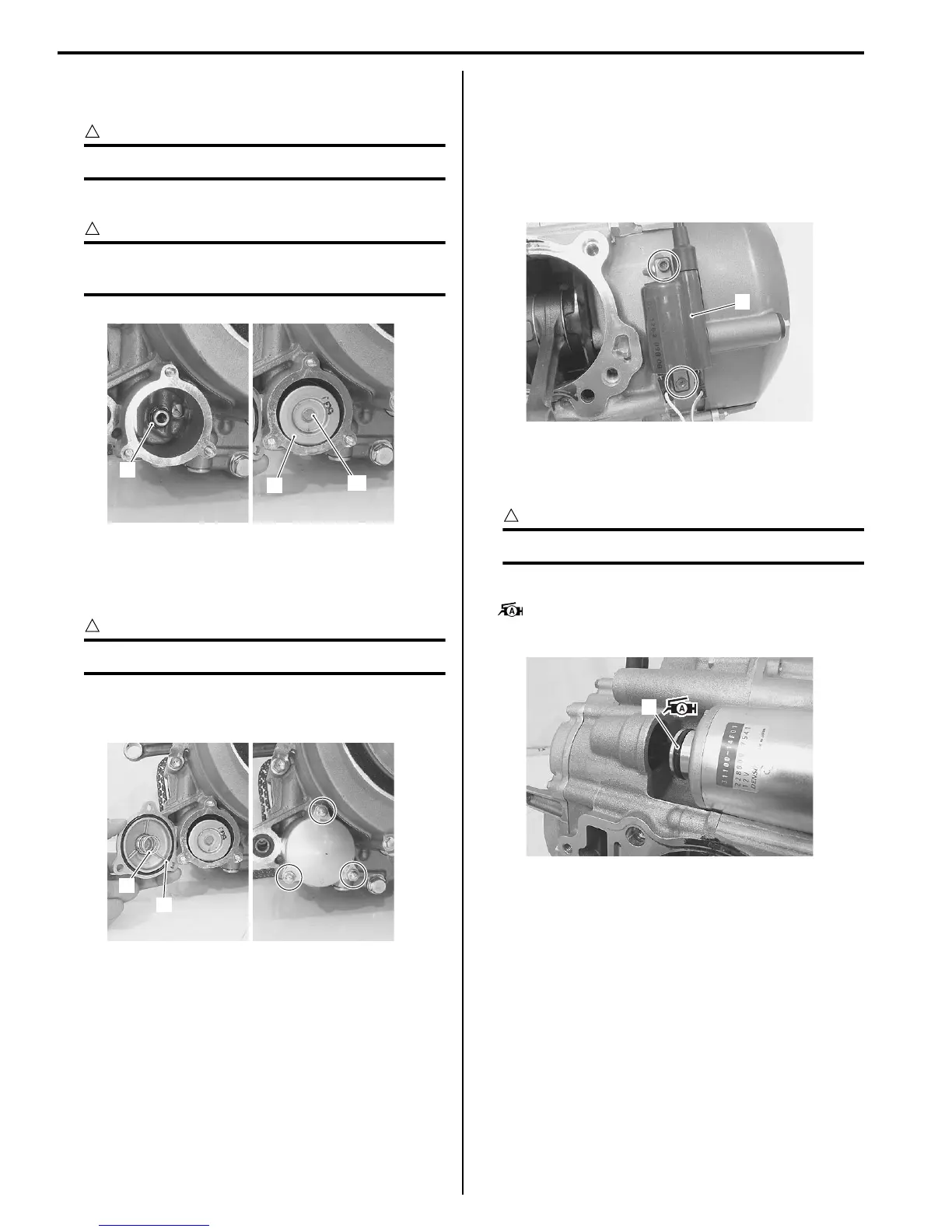

1D-50 Engine Mechanical:
Oil Filter
• Install the O-ring (1).
CAUTION
!
Replace the O-ring with a new one.
• Install the oil filter (2).
CAUTION
!
Position the oil filter so that the valve “A”
comes outside.
• Install the O-ring (3).
• Install the spring (4).
• Tighten the oil filter cap bolts to the specified torque.
CAUTION
!
Replace the O-ring with a new one.
Tightening torque
Oil filter cap bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
Outer Clutch Cover
Refer to “V-belt Type Continuously Variable Automatic
Transmission Removal and Installation in Section 5A
(Page5A-3)”.
Ignition Coil
• Install the ignition coil (1).
Starter Motor
• Install the O-ring (1) to the starter motor.
CAUTION
!
Replace the O-ring with a new one.
• Apply grease to the O-ring (1).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
2
“A”
I705H1140232-03
3
4
I705H1140233-01
1
I705H1140069-01
1
I705H1140235-02

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
