Suzuki AN400 Service Manual

Engine Mechanical: 1D-53

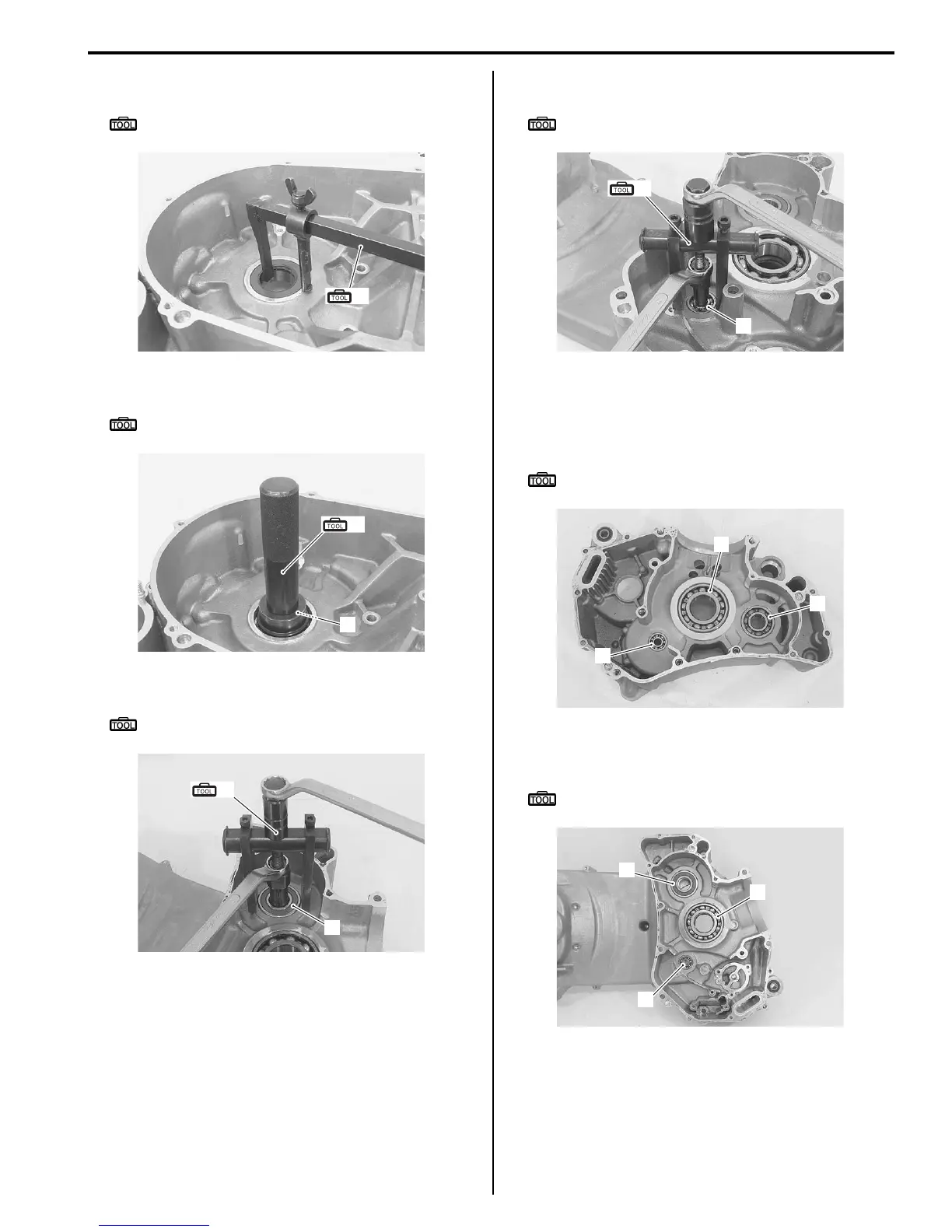

• Remove the oil seal using the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
• Remove the bearing (4) using the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
• Remove the bearing (5) using the special tool.
Special tool
(C): 09921–20240 (Bearing remover set)
• Remove the bearing (6) using the special tool.
Special tool
(D): 09921–20240 (Bearing remover set)
Installation
• Install the bearing (1), (2) and (3) using the special
tool.
Special tool
: 09913–70210 (Bearing installer set)
• Install the bearing (4), (5) and (6) using the special
tool.
Special tool
: 09913–70210 (Bearing installer set)
(A)
I705H1140152-01
4
(B)
I705H1140153-02
5
(C)
I705H1140154-02
6
(D)
I705H1140155-02
1
2
3
I705H1140156-01
4
5
6
I705H1140157-01

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
