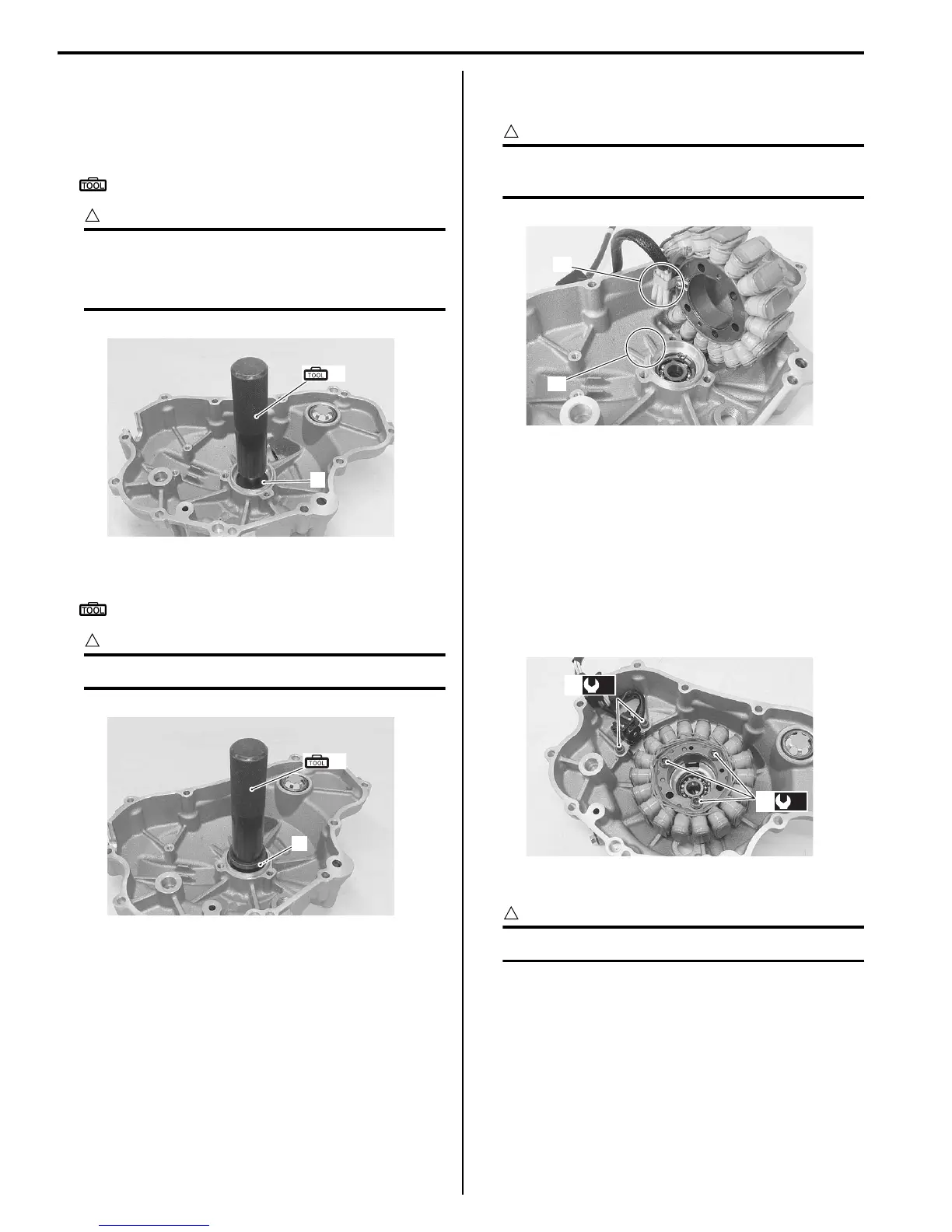

1J-7 Charging System:
Installation
Install the generator in the reverse order of removal. Pay
attention to the following points:
• Install the oil seal (1) using the special tool.
Special tool
(A): 09913–75821 (Bearing installer)
CAUTION
!
• Install the oil seal with the marked code
toward outside.
• Replace the oil seal with a new one.
• Install the bearing (2) using the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
CAUTION
!
Replace the bearing with a new one.
• Install the snap ring.
• Install the generator stator into the generator cover.
CAUTION
!
Engage the convex part “A” on the starter
into the notch “B” on the generator cover.
• Tighten the generator stator bolts (3) to the specified
torque.
Tightening torque
Generator stator bolt (a): 11 N·m (1.1 kgf-m, 8.0
lb-ft)
• Tighten the CKP sensor bolts (4) to the specified
torque.
Tightening torque
CKP sensor bolt (b): 6 N·m (0.6 kgf-m, 4.5 lb-ft)
• Install the generator cover.
CAUTION
!
Replace the gasket with a new one.
• Install the muffler. Refer to “Exhaust Pipe / Muffler
Removal and Installation in Section 1K (Page1K-2)”.
• Install the side leg shield. Refer to “Side Leg Shield
Removal and Installation in Section 9D (Page9D-15)”.
1
(A)
I705H11A0015-01
(B)
2
I705H11A0016-01
“A”
“B”
I705H11A0018-02
(a)
3
(b)
4
I705H11A0019-05
