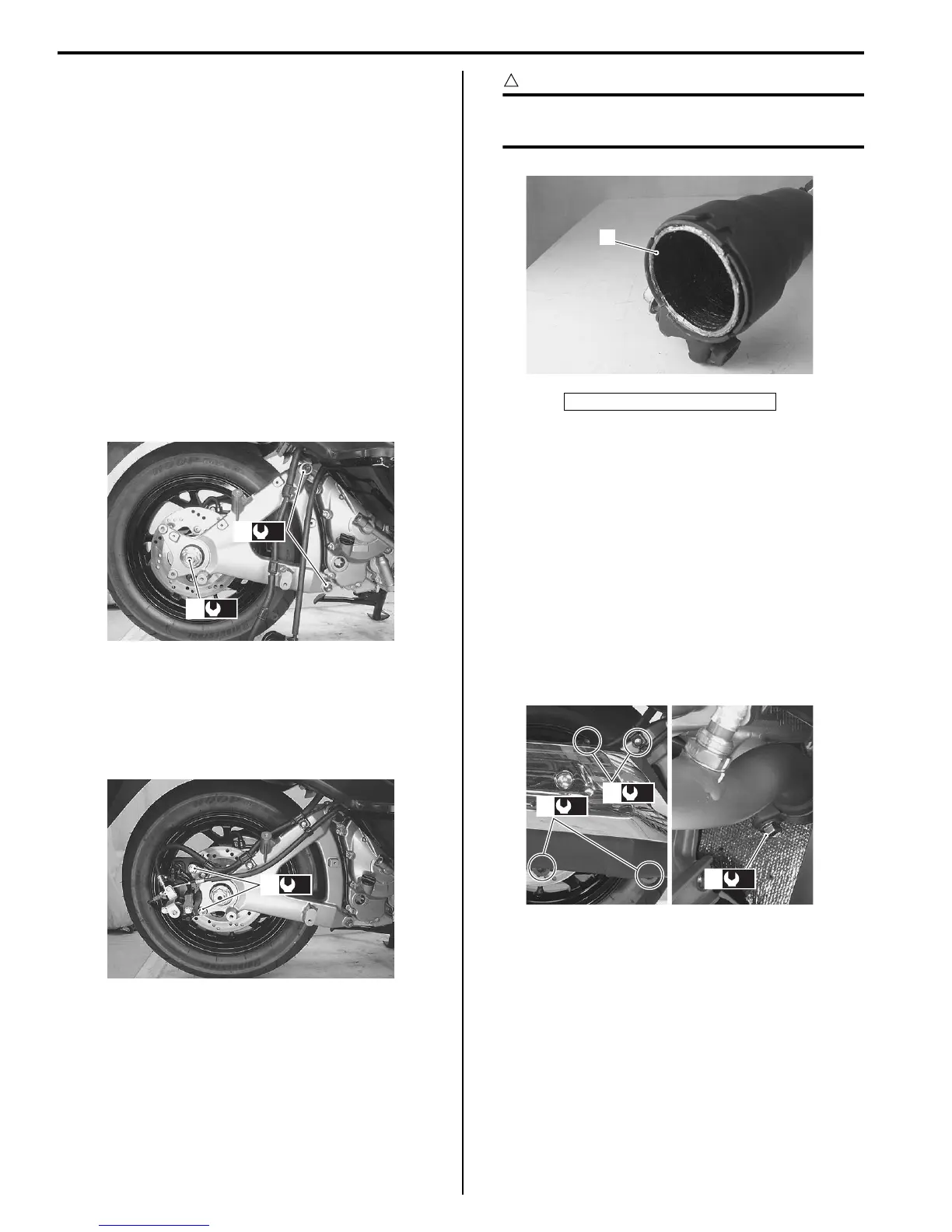

2D-10 Wheels and Tires:
Installation
Refer to “Rear Wheel Related Parts Inspection
(Page2D-11)” and “Wheel/Tire/Air Valve Inspection and
Cleaning (Page2D-13)”
Install the rear wheel in the reverse order of removal.
Pay attention to the following points:
• Install the rear swingarm mounting bolts and rear
wheel nut temporarily.
• Tighten the rear swingarm mounting bolts (1) to the
specified torque.
Tightening torque
Rear swingarm mounting bolt (a): 50 N·m (5.0
kgf-m, 36.0 lb-ft)
• Tighten the rear wheel nut (2) to the specified torque.
Tightening torque
Rear wheel nut (b): 120 N·m (12.0 kgf-m, 87.0 lb-
ft)
• Tighten the rear brake caliper mounting bolts (3) to the
specified torque.
Tightening torque
Rear brake caliper mounting bolt (c): 23 N·m (2.3
kgf-m, 16.5 lb-ft)
CAUTION
!
Replace the exhaust pipe connector (4) with a
new one.
• Insert the exhaust pipe connecting bolt and the
muffler mounting bolt temporarily.
• Tighten the exhaust pipe connecting bolts (5) to the
specified torque.
Tightening torque
Exhaust pipe connecting bolt (d): 23 N·m (2.3 kgf-
m, 16.5 lb-ft)
• Tighten the muffler mounting bolts (6) to the specified
torque.
Tightening torque
Muffler mounting bolt (e): 23 N·m (2.3 kgf-m, 16.5
lb-ft)
(a)
1
(b)
2
I705H1240022-01
(c)
3
I705H1240023-03
4. Exhaust pipe connector
4
I705H1240025-01
(d)
5
(e)
6
(e)
6
I705H1240024-03
