Suzuki AN400 Service Manual

Drive Chain / Drive Train / Drive Shaft: 3A-7

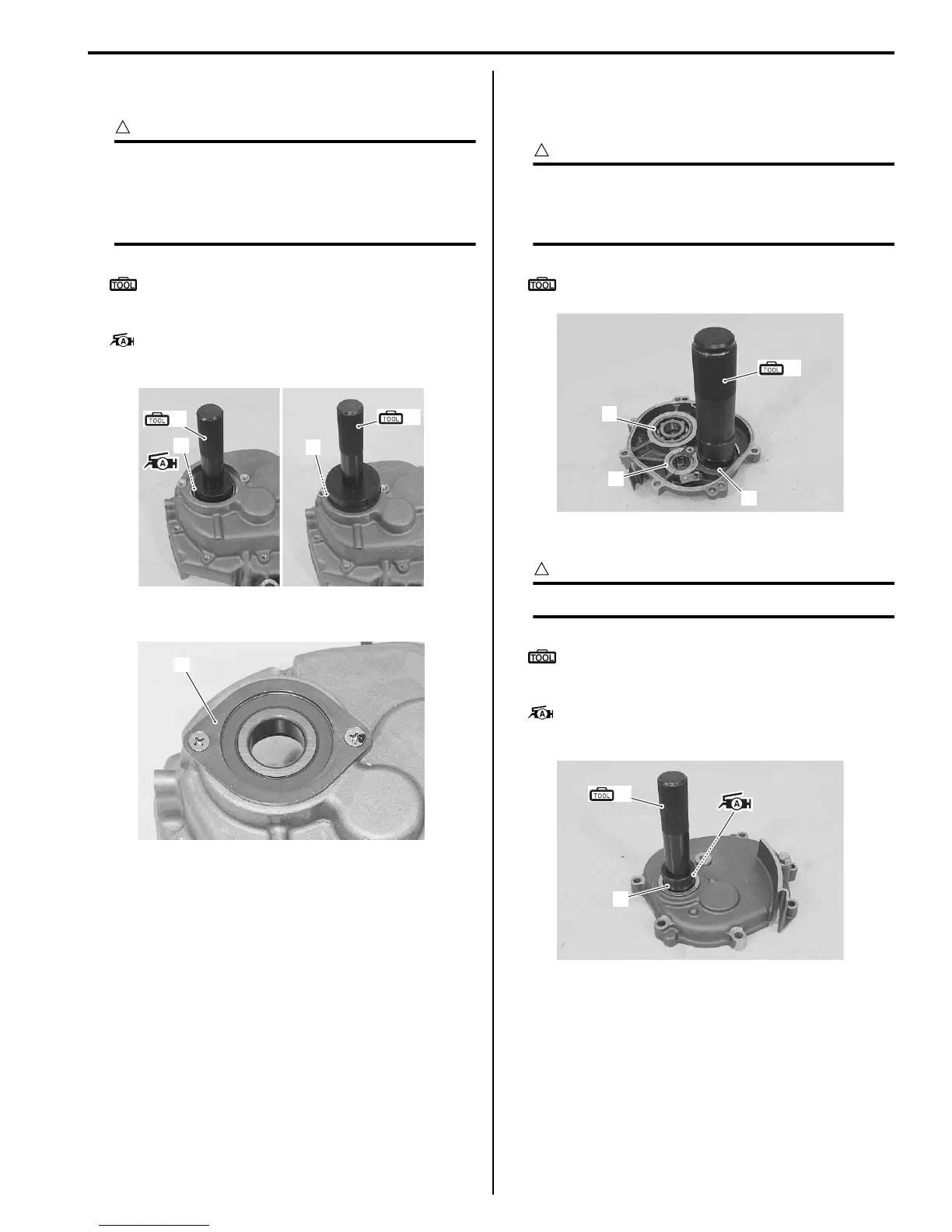

• Install the oil seal (3) and bearings (4) using the
special tool.
CAUTION
!
• Replace the O-ring with a new one.
• Replace the bearings with the new ones.
• Install the bearing so that its stamped mark
faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply the grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the bearing retainer (5).
Final gear cover
• Install the bearings (1), (2) and (3) using the special
tool.
CAUTION
!
• Replace the bearing with a new one.
• Install the bearing so that its stamped mark
faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the oil seal (4) using the special tool.
CAUTION
!
Replace the oil seal with a new one.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply the supper grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
(A)
(A)
3
4
I705H1310024-01
5
I705H1310025-02
(A)
1
2
3
I705H1310027-01
(A)
4
I705H1310028-02

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
