Suzuki AN400 Service Manual

Parking Brake: 4D-8

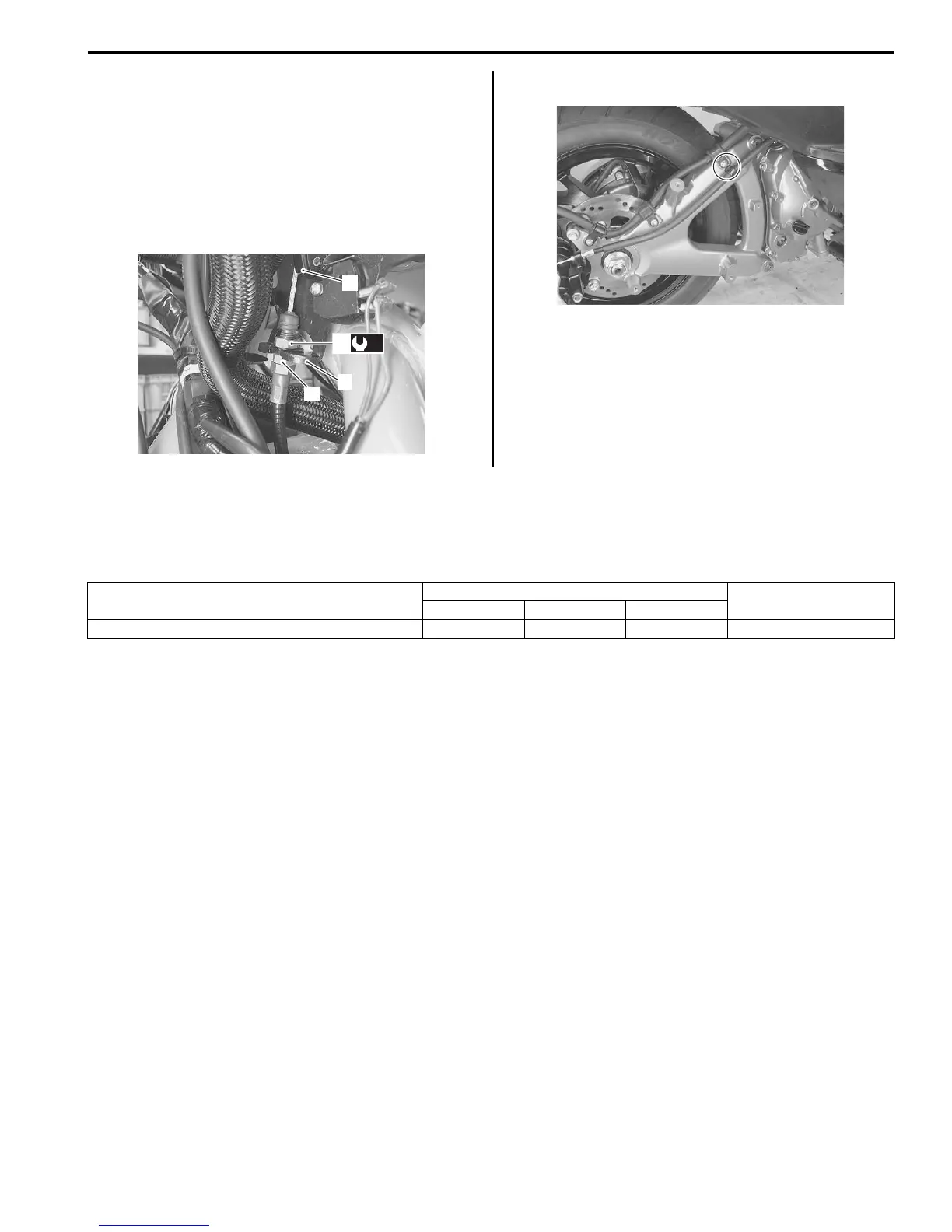

3) Pull the brake-lock lever (4) one notch.
4) Tighten the brake-lock cable adjust bolt (5) by hand
until it contacts the holder (6).
5) Tighten the brake-lock cable lock-nut (7) to the
specified torque.
Tightening torque
Brake-lock cable lock-nut (a): 10 N·m (1.0 kgf-
m, 7.0 lb-ft)
6) Install the brake hose clamp.
7) Install the front box. Refer to “Front Box Removal
and Installation in Section 9D (Page9D-18)”.
8) After installing, adjust the brake-lock. Refer to “Brake
System Inspection in Section 0B (Page0B-13)”.
Specifications
Tightening Torque Specifications
B705H14407001
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque Specifications in Section
0C (Page0C-7)”.
4
6
5
(a)
7
I705H1440005-03
I705H1440002-05
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Brake-lock cable lock-nut 10 1.0 7.0 )(Page4D-8)

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
