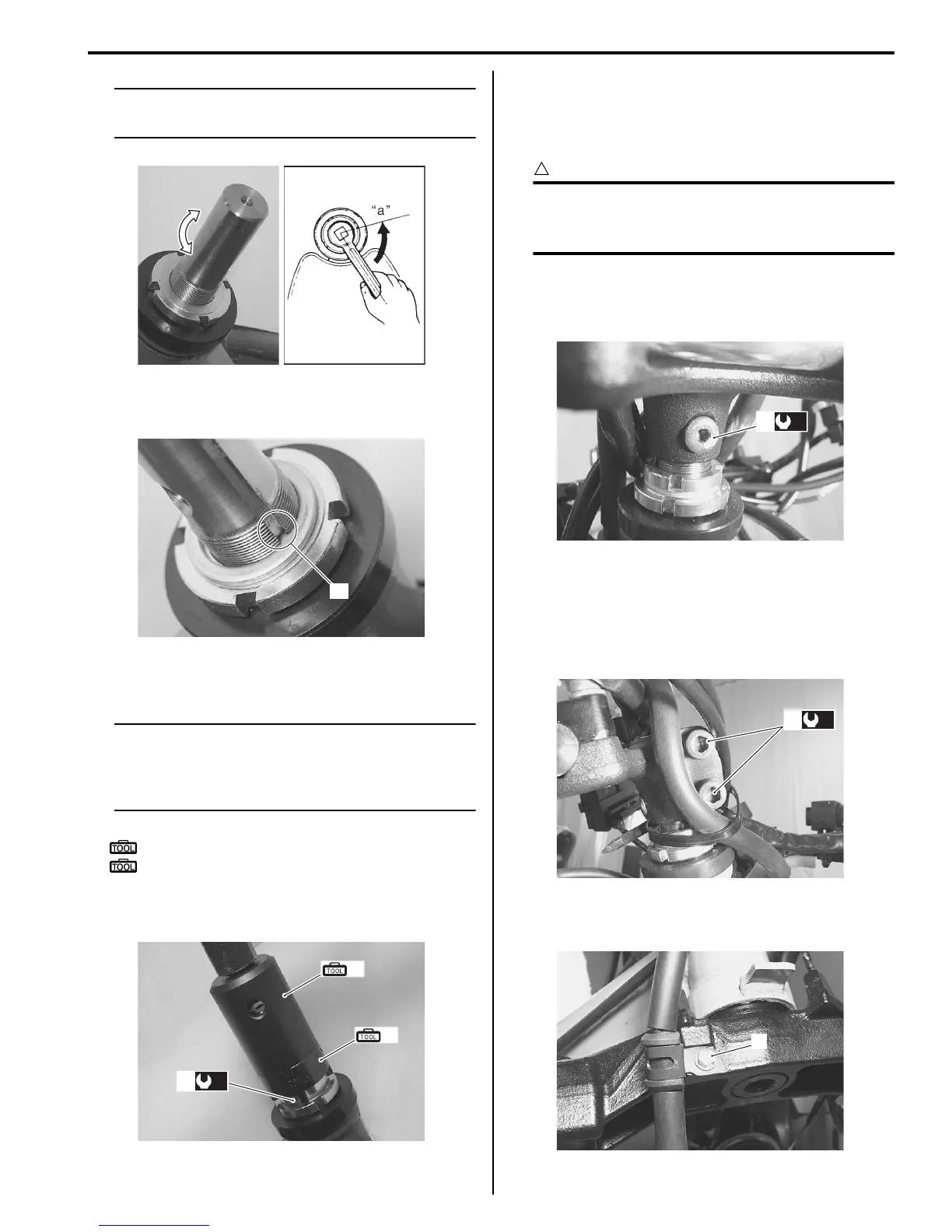

Steering / Handlebar: 6B-8
NOTE
This adjustment will vary from motorcycle to
motorcycle.
• Install the washer with its tab “A” engaged with the
steering stem groove.
• Tighten the lock-nut (2) to the specified torque using
the special tools.
NOTE
Tightening the lock-nut can affect the
steering stem nut adjustment. Therefore after
tightening the lock-nut, check the steering
movement again and adjust if necessary.
Special tool
(A): 09940–14911 (Steering stem nut wrench)
(C): 09940–11420 (Steering stem nut socket)
Tightening torque
Lock-nut (b): 30 N·m (3.0 kgf-m, 21.5 lb-ft)
Handlebar holder
• Install the handlebar holder with the handlebars and
tighten the handlebar holder set bolt (1) to the
specified torque.
CAUTION
!
This operation must be performed without
causing undue stress to the brake hoses,
lead wires and throttle cables.
Tightening torque
Handlebar holder set bolt (a): 23 N·m (2.3 kgf-m,
16.5 lb-ft)
• Install the clamp and tighten the handlebar holder
clamp bolts (2) to the specified torque.
Tightening torque
Handlebar holder clamp bolt (b): 55 N·m (5.5 kgf-
m, 40.0 lb-ft)
• Install the front brake hose clamp (3) to the steering
stem.
I705H1620021-02
“A”
I705H1620022-02
(A)
(C)
(b)
2
I705H1620023-03
(a)
1
I705H1620024-01
(b)
2
I705H1620025-01
3
I705H1620026-01
