9B-3 Lighting Systems:

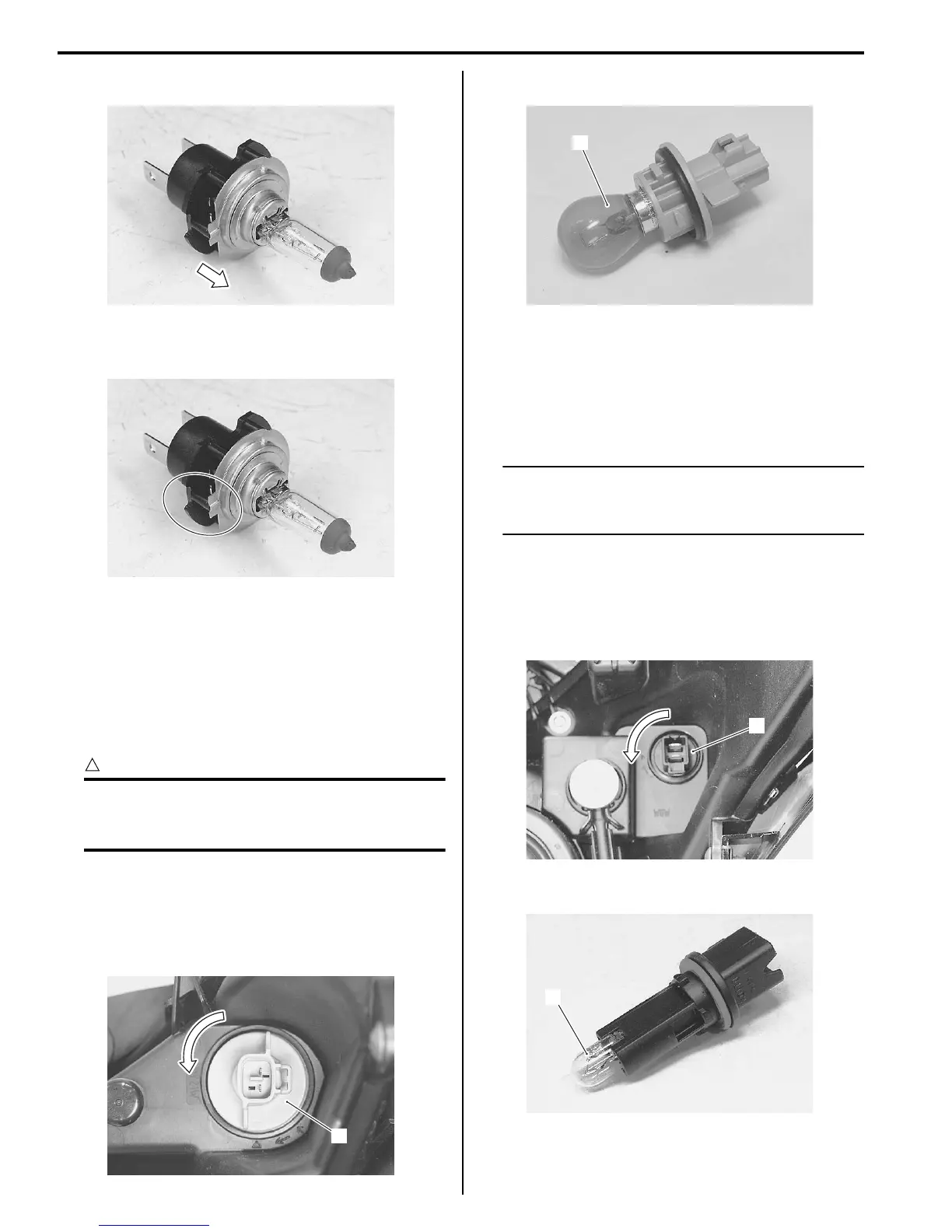

4) Remove the left headlight bulb from the socket.
5) Install the new left headlight bulb paying attention to
the direction of the socket.
6) After finishing the headlight bulb replacement,
reinstall the removed parts.
Front Turn Signal Light Bulb
Refer to “Front Combination Light Components
(Page9B-1)”.
Replace the front turn signal light bulb in the following
procedures:
CAUTION
!
To replace the front turn signal light bulb, the
same procedures is applicable to both the
right and left lights.
1) Remove the front leg shield. Refer to “Front Leg
Shield Removal and Installation in Section 9D
(Page9D-14)”.
2) Remove the socket (1) by turning it counter
clockwise.
3) Replace the front turn signal light bulb (2).
4) After finishing the front turn signal light bulb
replacement, reinstall the removed parts.
Position Light Bulb
Replace the position light bulb in the following
procedures:
NOTE
To replace the positioning light bulb, the
same procedures is applicable to both the
right and left lights.
1) Remove the front leg shield. Refer to “Front Leg
Shield Removal and Installation in Section 9D
(Page9D-14)”.
2) Remove the socket (1) by turning it counter
clockwise.
3) Replace the position light bulb (2).
4) After finishing the position light bulb inspection,
reinstall the removed parts.
I705H1920015-01
I705H1920016-01
1
I705H1920002-03
2
I705H1920003-02
1
I705H1920004-02
2
I705H1920006-01
