[2] TREADS ADJUSTMENT
To avoid personal injury:
• When working on slopes or working with trailer, set the wheel tread as wide as practice for the job for
maximum stability.
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
• Never operate tractor with a loose rim, wheel, or axle.
9Y1211012GEG0035US0

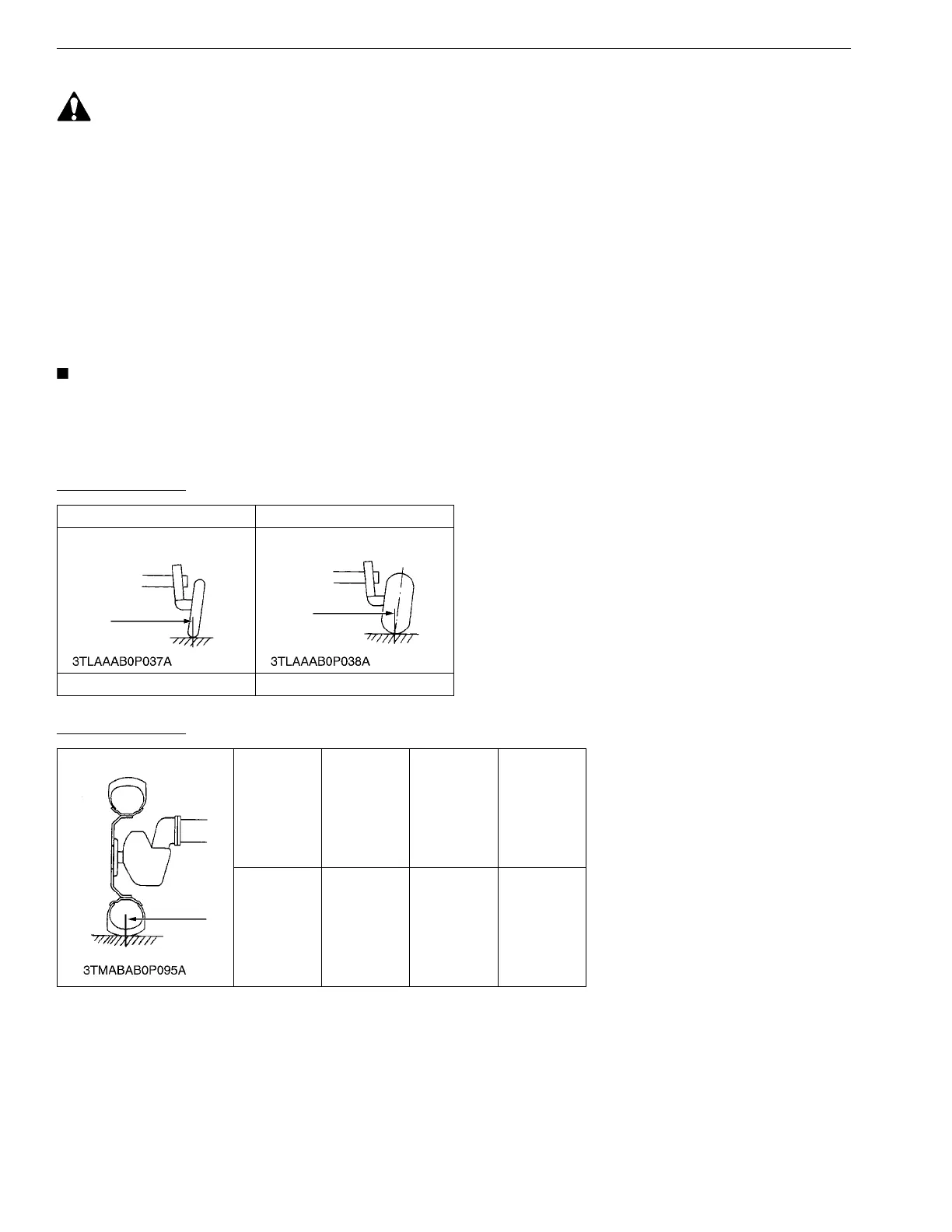

(1) L3301/L3901
[A] Front Wheels
Front tread can not be adjusted.
• Do not turn front discs to obtain wider tread.
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (200 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according
to service interval. (See page G-15.)
9Y1211012GEG0039US0
2WD Front Wheel
9Y1211012GEG0037US0
4WD Front Wheel
9Y1211012GEG0038US0
5 - 15 Farm 23 × 8.5 - 12 Turf
1050 mm (41.3 in.) 1175 mm (46.3 in.)
Tire 7.2-16 Farm
25 × 8.5-14
Turf
27 × 8.5-15
Industrial
Tread
1095 mm
(43.1 in.)
1105 mm
(43.5 in.)
1115 mm
(43.9 in.)
