ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-M10
[3] BASIC CONTROL SYSTEM

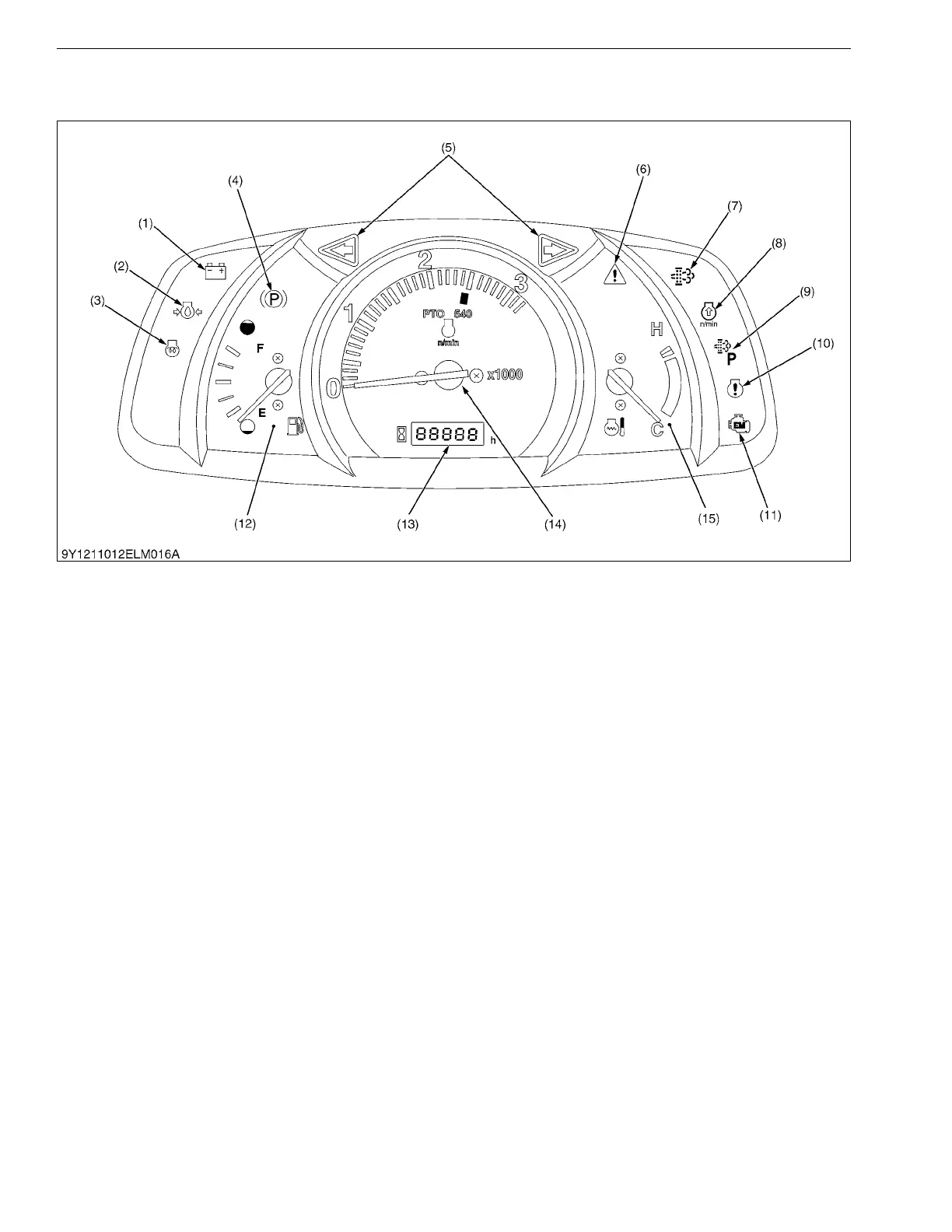

(1) Indication Items of Meter Panel
9Y1211012ELM0027US0
(1) Electrical Charge Warning
Indicator
(2) Engine Oil Pressure Warning
Indicator
(3) Glow Plug Indicator
(4) Parking Brake Warning
Indicator
(5) Turn Signal / Hazard Indicator
(6) Master System Warning
Indicator
(7) Regeneration Indicator
(8) Engine RPM Increase
Indicator
(9) Parked Regeneration
Indicator
(10) Engine Warning Indicator
(11) Emission Indicator
(12) Fuel Gauge
(13) Hourmeter
(14) Tachometer
(15) Coolant Temperature Gauge
