TRANSMISSION
L3301, L3901, L4701, WSM
3-S60
[2] L4701
(1) Preparation
[A] Separating Engine and Clutch Housing Case
Draining Transmission Fluid (L4701)
To avoid personal injury:
• Be sure to stop the engine before changing the oil filter
cartridge.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.

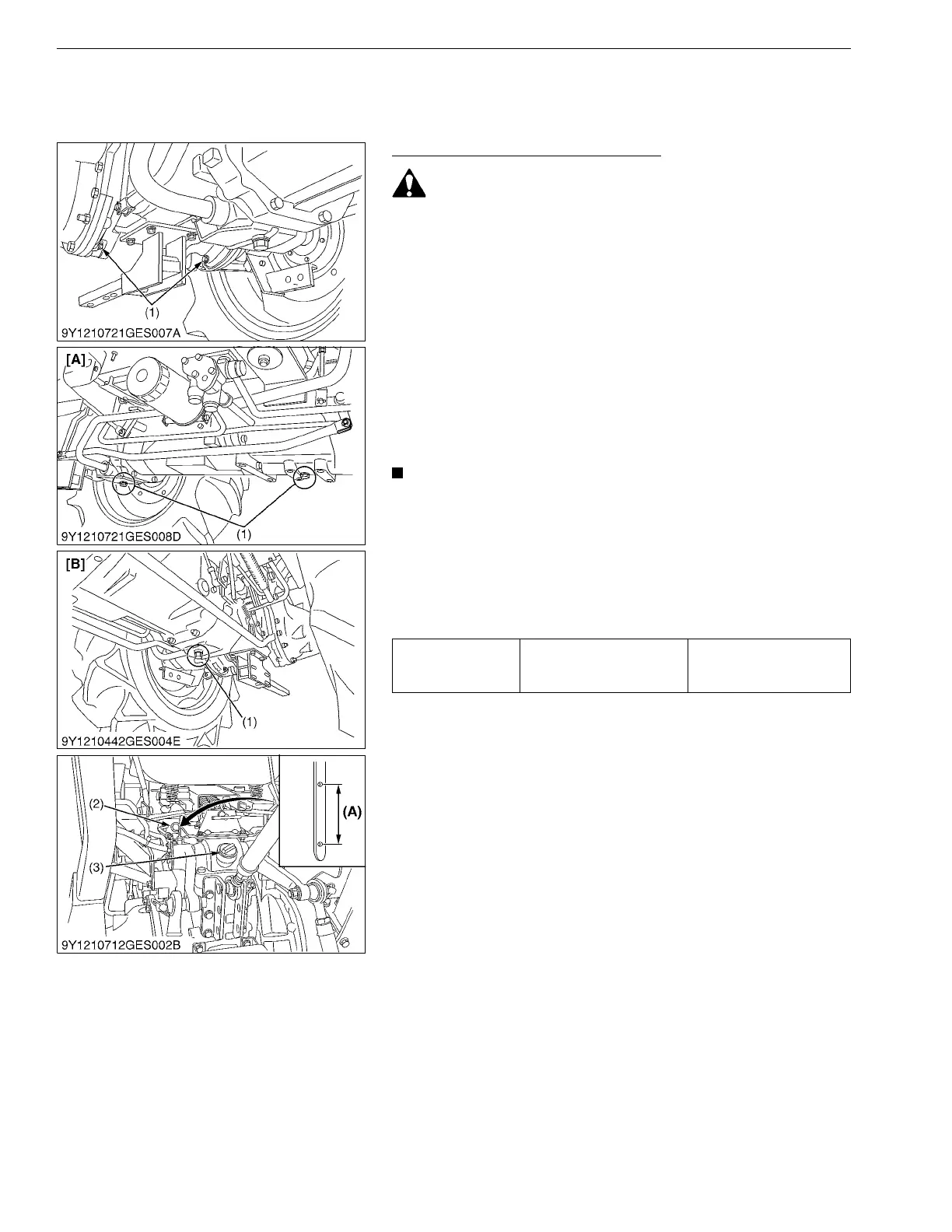

1. Remove the drain plugs (1) at the bottom of the transmission
case and drain the oil completely into the oil pan.
2. After draining reinstall the drain plugs.
(When reassembling)
• Fill up new oil to the upper line of the gauge (2) from the oil inlet
port after removing the oil inlet plug (3).
• Operate the engine at medium speed for a few minutes, stop it
and check the fluid level again, if low, add fluid prescribed level
(A).
• Use only multi-grade transmission fluid. Use of other fluids
may damage the transmission or hydraulic system.
• Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-11.
• Never work the tractor immediately after changing the
transmission fluid. Keeping the engine at medium speed
for a few minutes to prevent damage to the transmission.
• Do not mix different brands oil together.
9Y1211012RAS0004US0
Transmission fluid Capacity
40.0 L
10.6 U.S.gals
8.8 Imp.gals
(1) Drain Plug
(2) Gauge
(3) Oil Inlet Plug
[A] Manual Transmission Model
[B] HST Model
(A) Oil level is acceptable within this
range.
