ENGINE
L3301, L3901, L4701, WSM
1-S36

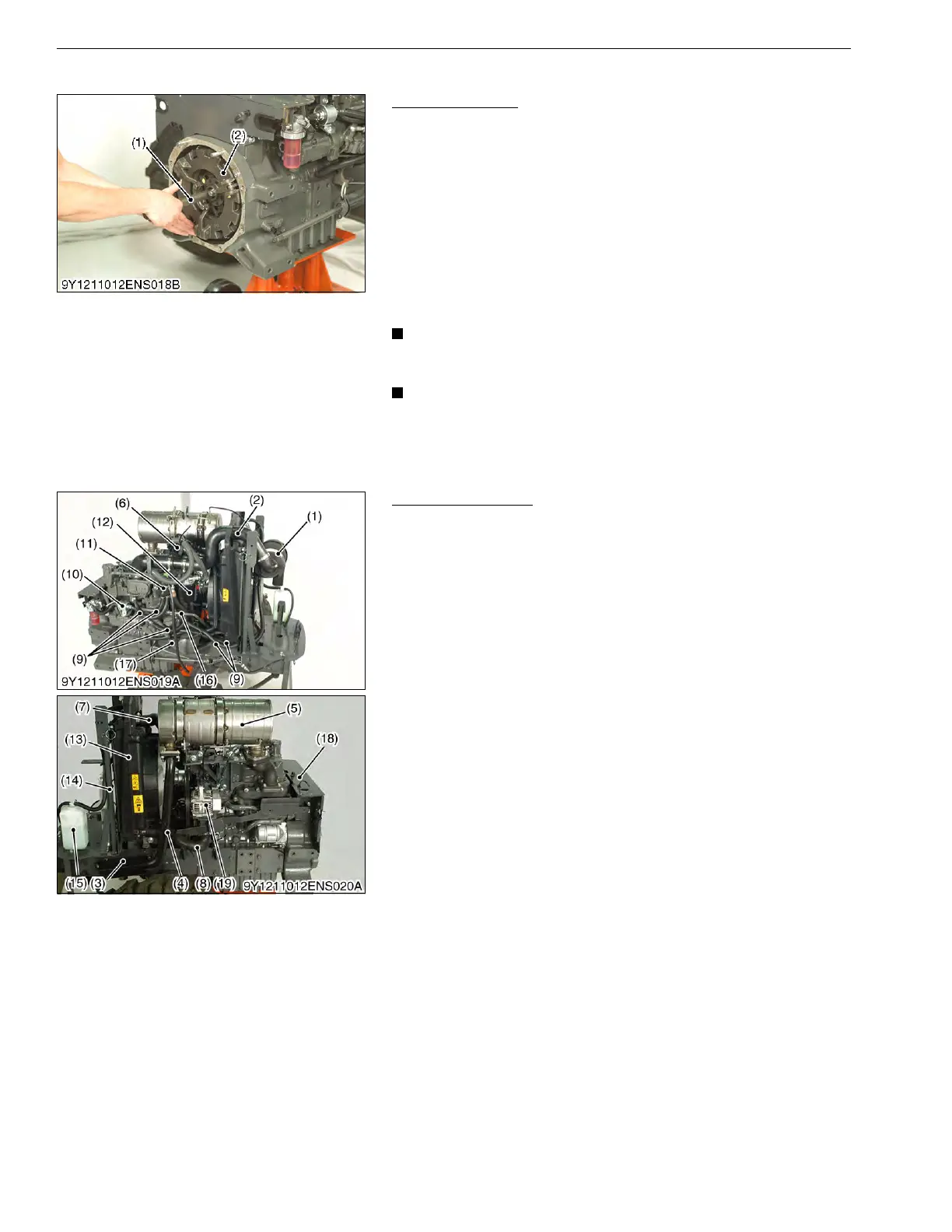

[3] SEPARATING ENGINE FROM FRONT AXLE FRAME
Clutch Assembly
1. Insert the clutch center tool (1).
2. Remove the clutch assembly (2) together with the clutch center
tool.
(When reassembling)
• Direct the shorter end of the clutch disc boss toward the
flywheel.
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of clutch disc boss.
• Insert the pressure plate, noting the position of straight pins.
• After docking the engine and the clutch housing case, assemble
the outer parts, referring to the picture.
IMPORTANT
• Be sure to align the center of disc and flywheel by inserting
the clutch tool set.
NOTE
• Be sure to align the center of disc and flywheel by inserting
the clutch tool set.
9Y1211012ENS0027US0
Radiator Assembly
1. Remove battery.
2. Remove air cleaner (1) together with air cleaner hoses (2).
3. Remove front exhaust pipe (3) and exhaust pipe (4).
4. Remove DPF muffler assembly (5).
5. Remove the cramps and hoses of oil separator (6), then remove
the oil separator (6).
6. Remove radiator hoses (7), (8).
7. Remove fuel hoses (9) together with fuel pump (10), fuel sub
tank (11), fuel filter (12).
8. Remove radiator (13) together with front support (14), reserve
tank (15).
9. Remove power steering delivery pipe (16) and return hose (17).
10. Remove plate (18).
11. Remove alternator (19) and fan belt.
(When reassembling)
• When reassembling DPF muffler assembly to tractor, follow the
provided procedure (See page 1-S19).
• If CCV Heater is equipped, be careful not to assemble in the
wrong direction. Refer to the images shown below.
(To be continued)
(1) Clutch Center Tool (2) Clutch Assembly
(1) Air Cleaner
(2) Air Cleaner Hose
(3) Front Exhaust Pipe
(4) Exhaust Pipe
(5) DPF Muffler Assembly
(6) Oil Separator
(7) Radiator Hose (Upper)
(8) Radiator Hose (Lower)
(9) Fuel Hose
(10) Fuel Pump
(11) Fuel Sub Tank
(12) Fuel Filter
(13) Radiator
(14) Front Support
(15) Reserve Tank
(16) Power Steering Delivery Pipe
(17) Return Hose
(18) Plate
(19) Alternator
KiSC issued 09, 2016 A
