ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S19

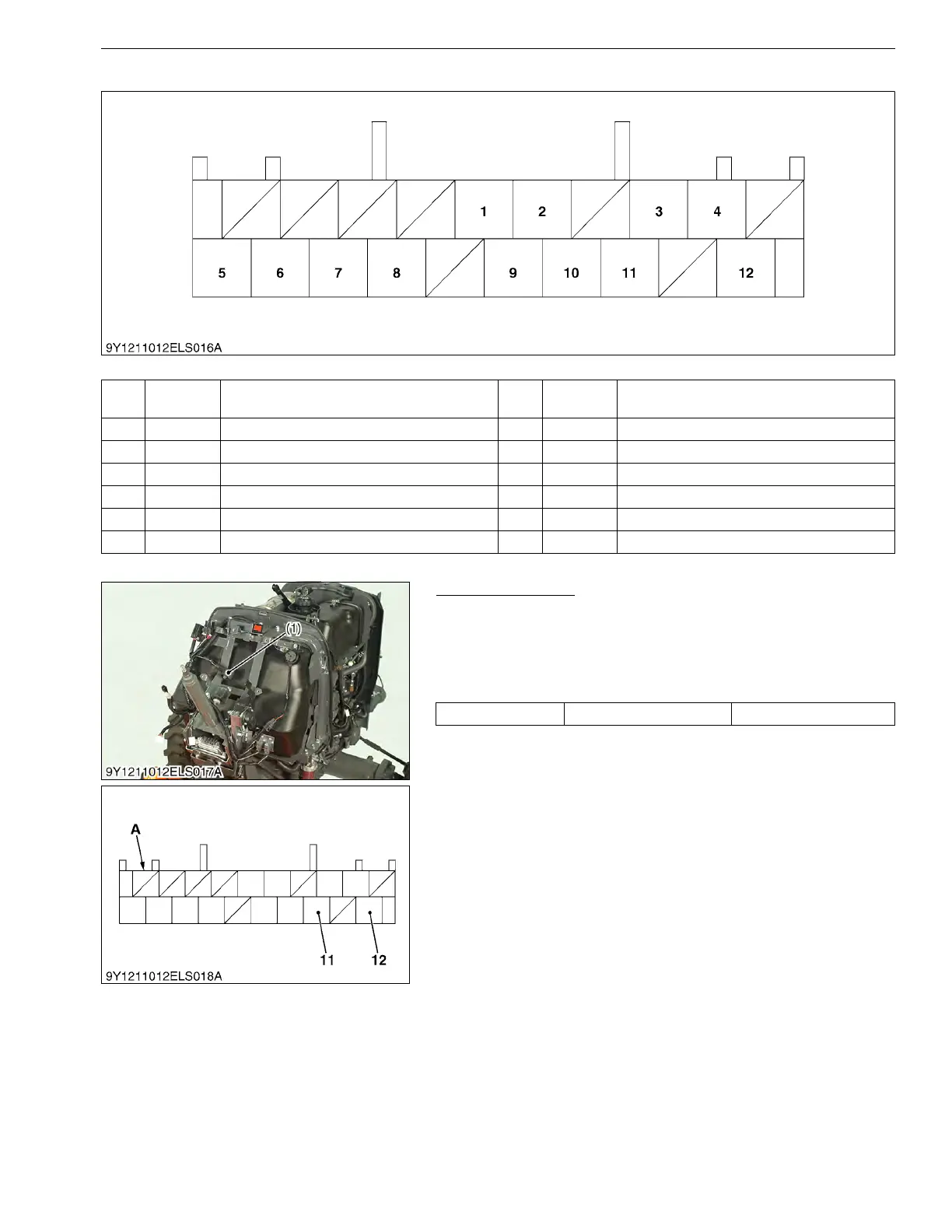

(1) Checking Electronic Instrument Panel Connector
Connector of Wire Harness Side
9Y1211012ELS0018US0
Connector Voltage
Main Voltage
1. Measure the voltage between the terminal 12 (+) and terminal
11 (−).
2. If the voltage differs from the battery voltage (11 to 14 V), the
battery, slow blow fuse, fuse or wiring harness is damaged.
9Y1211012ELS0019US0
No.
Color of
wiring
Terminal Name No.
Color of
wiring
Terminal Name
1 L Engine Oil Pressure Switch 7 GR Buzzer
2 W/R Alternator L Terminal 8 G/W Head Light (Meter Panel Back Light)
3 R Hazard/Turn Signal (LH) 9 R/L IGN
4 R/W Hazard/Turn Signal (RH) 10 Y/G Fuel Lever Sensor
5 BR/W CAN (L) 11 B/R GND
6 BR CAN (H) 12 R/Y +12V (Power Source from Battery)
Voltage Terminal 12 – Terminal 11 Approx. battery voltage
(1) Connector A: Connector of Wire Harness Side
To Next Page
