BRAKES
L3301, L3901, L4701, WSM
5-S12

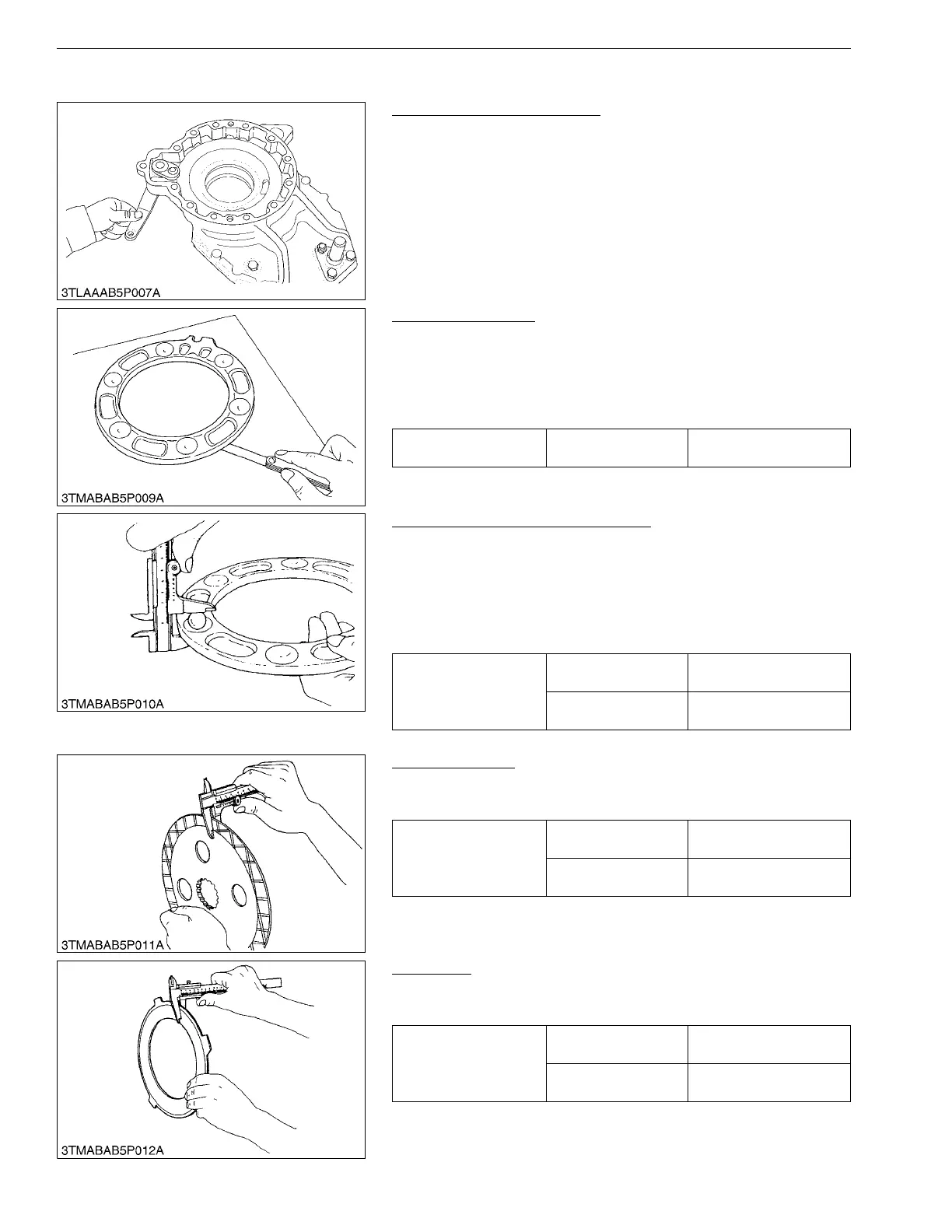

6. SERVICING
Brake Cam Lever Movement
1. Move the brake cam lever by hand to check the movement.
2. If the movement is heavy, refine the brake cam with sandpaper.
9Y1211012BRS0009US0
Cam Plate Flatness
1. Place the cam plate on the surface plate.
2. Use a feeler gauge of 0.3 mm (0.012 in.) thick for judgement of
the cam plate flatness. Measure the flatness diagonally at more
than four locations.
3. If the measurement exceed the allowable limit, replace it.
9Y1211012BRS0010US0
Height of Brake Cam Plate and Ball
1. Measure the dimensions of the brake cam plate with the ball
installed.
2. If the measurement is less than the allowable limit, replace the
cam plate and balls.
3. Inspect the ball holes of cam plate for uneven wear. If the
uneven wear is found, replace it.
9Y1211012BRS0011US0
Brake Disc Wear
1. Measure the brake disc thickness with vernier calipers.
2. If the measurement is less than the allowable limit, replace it.
9Y1211012BRS0012US0
Plate Wear
1. Measure the plate thickness with vernier calipers.
2. If the measurement is less than the allowable limit, replace it.
9Y1211012BRS0013US0
Cam Plate Flatness Allowable limit
0.3 mm
0.01 in.
Height of brake cam
plate and ball
Factory specification
20.9 to 21.1 mm
0.823 to 0.830 in.
Allowable limit
20.5 mm
0.807 in.
Brake disc thickness
Factory specification
4.60 to 4.80 mm
0.182 to 0.188 in.
Allowable limit
4.2 mm
0.17 in.
Plate thickness
Factory specification
2.54 to 2.66 mm
0.100 to 0.104 in.
Allowable limit
2.1 mm
0.083 in.
KiSC issued 09, 2016 A
