Replacing Fuel Filter
1. Remove the fuel filter.
2. Put a film of clean fuel on rubber seal of new filter.
3. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand an additional 1/2 turn only.
4. Bleed the fuel system. (See "Bleeding Fuel System" on page
G-74.)
9Y1211012GEG0166US0
Cleaning Water Separator
This job should not be done in the field, but in a clean place.
1. Close the fuel valve.
2. Unscrew the retainer ring and remove the cup, and rinse the
inside with kerosene.
3. Take out the element and dip it in the kerosene to rinse.
4. After cleaning, reassemble the water separator, keeping out
dust and dirt.
5. Bleed the fuel system. (See "Bleeding Fuel System" on page
G-74.)
9Y1211012GEG0167US0
Lubricating Grease Fitting [2WD Model]
Detach the cover, and apply bearing grease.
9Y1211012GEG0168US0
(6) Check Point of Every 600 Hours
Adjusting Front Axle Pivot
If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
Adjusting procedure
Loosen the lock nut, screw-in the adjusting screw until seated,
then tighten the screw with an additional 1/6 turn. Re-tighten the
lock nut
9Y1211012GEG0169US0

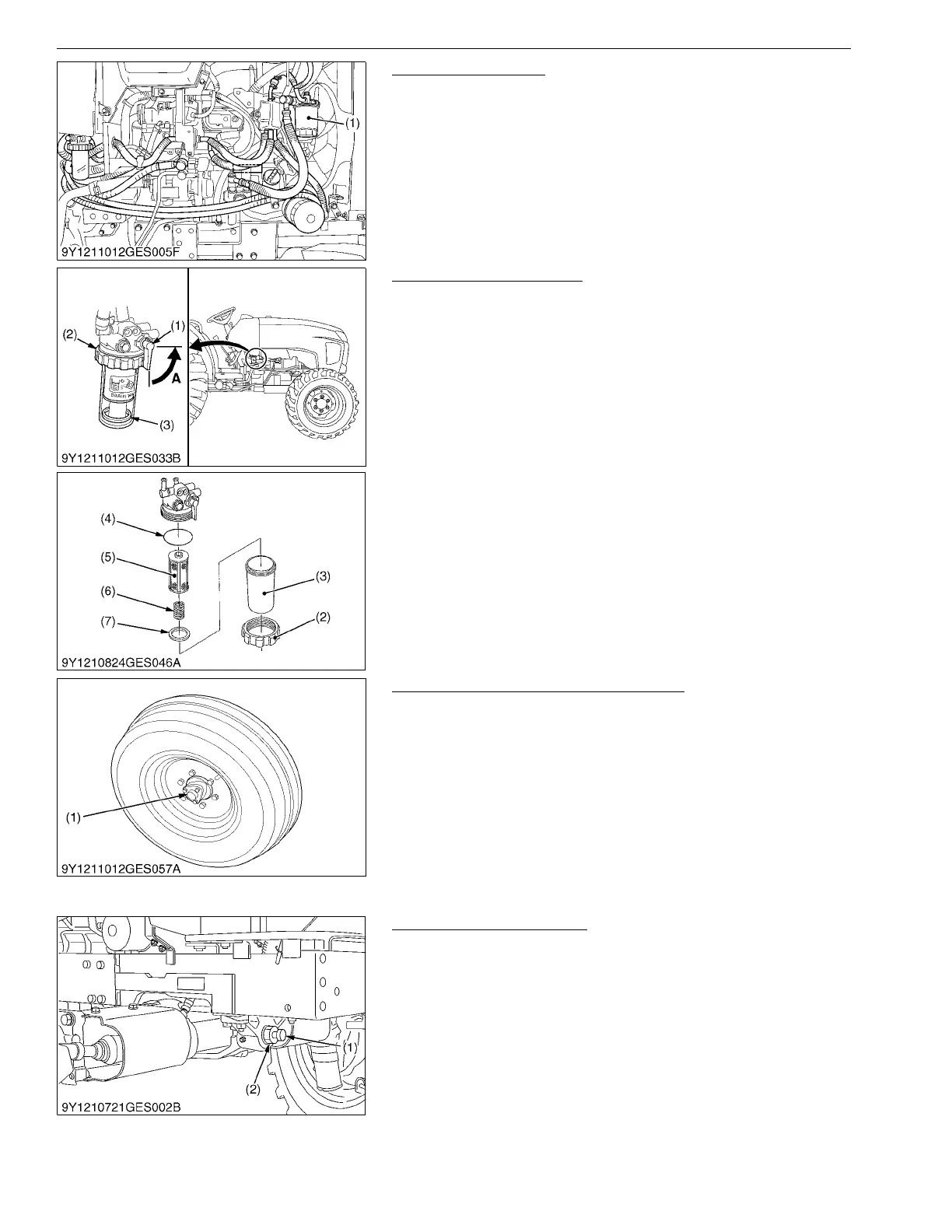

(1) Fuel Filter
(1) Fuel Valve
(2) Retainer Ring
(3) Cup
(4) O-ring
(5) Element
(6) Spring
(7) Red Float
A: Close
(1) Front Wheel Hub Cover
(1) Adjusting Screw (2) Lock Nut
