TRANSMISSION
L3301, L3901, L4701, WSM
3-M9

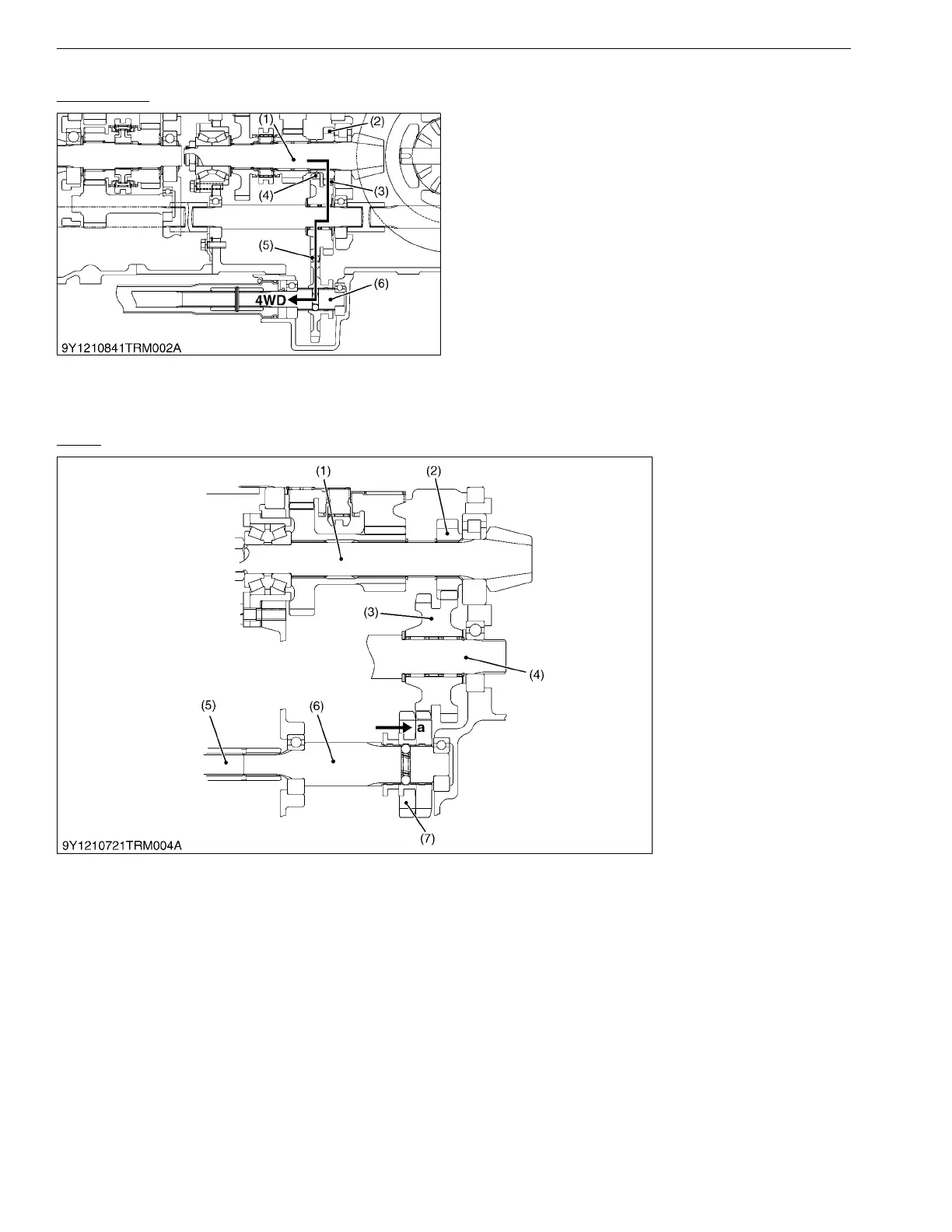

(4) Front Wheel Drive Section (4WD Model Only)
L3301/L3901
2-wheel drive or 4-wheel drive is selected by
operating the front wheel drive lever to shift the 33T shift
gear (5).
When the front wheel drive lever is set to disengage,
33T shift gear (5) is neutral.
When the front wheel drive lever is set to engage,
33T shift gear splined with front axle drive shaft side to
the left side to engage with 34T gear.
Then, power is transmitted as follows.
 Engage
Spiral Bevel Pinion Shaft (1) → 18T Gear (2) → 25T
Gear (3) → 34T Gear (4) → 33T Shift Gear (5) → Front
Wheel Drive Shaft (6).
9Y1211012TRM0007US0
L4701
Front wheel drive shift section is located in the differential gear case.
Two wheel drive or four wheel drive is selected by operating the front wheel drive lever to shift the shifter gear (7).
9Y1211012TRM0008US0
(1) Spiral Bevel Pinion Shaft
(2) 18T Gear
(3) 25T Gear
(4) 34T Gear
(5) 33T Shift Gear
(6) Front Wheel Drive Shaft
(1) Spiral Bevel Pinion Gear
(2) Gear
(3) Front Wheel Drive Gear
(4) Rear PTO Shaft
(5) Propeller Shaft
(6) Front Wheel Drive Shaft
(Connected to Propeller
Shaft)
(7) Shifter Gear
a: Four Wheel Drive Position
KiSC issued 09, 2016 A
