CLUTCH
L3301, L3901, L4701, WSM
2-S5
4. CHECKING AND ADJUSTING
Adjusting Clutch Pedal (Single Clutch)
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free travel at the
top of pedal stroke.
3. If measurement is needed, loosen the lock nut (1) and turn the
clutch rod (2) or turnbuckle (3) to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
9Y1211012CLS0004US0
Adjusting Clutch Pedal (Dual Stage Clutch)
1. At first adjust clutch play, same as with single disc clutch.
2. Remove the cover located on the right side of flywheel housing
case.
3. Loosen the lock nut (1), tighten the adjust bolt (2) by using 7 mm
spanner until head of the bolt contacts pressure plate slightly.
Make 3/4 turn counterclockwise to give 0.9 to 1.0 mm (0.035 to
0.039 in.) clearance.
4. Tighten the lock nut (1), holding the adjust bolt (2).
5. Turn the flywheel to adjust the clearance of other adjusting bolts
(3 bolts).
6. Repeat step 3. and readjust free travel of clutch pedal if
necessary.
9Y1211012CLS0005US0

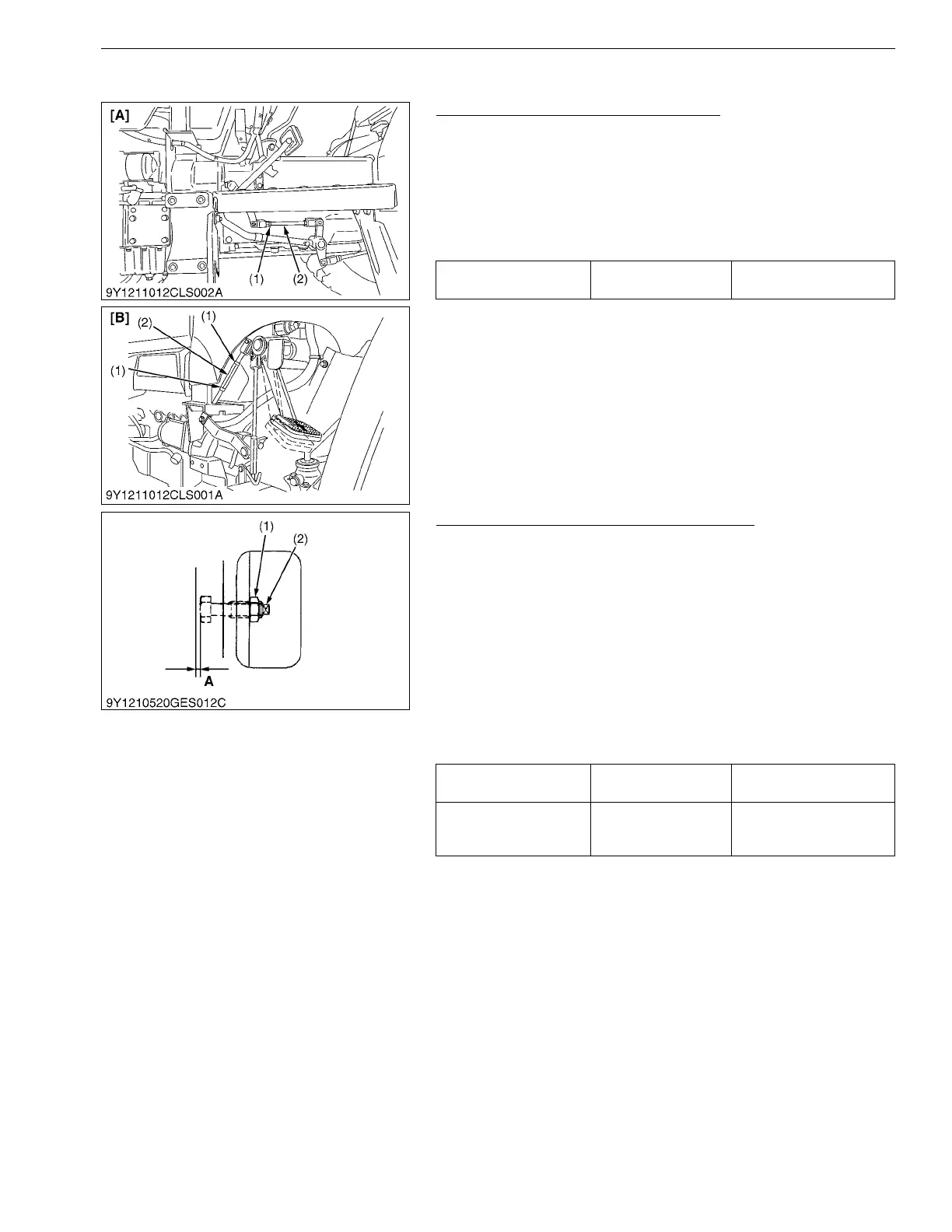

Clutch pedal free travel Factory specification
20 to 30 mm
0.8 to 1.2 in.
(1) Lock Nut
(2) Clutch Rod
(3) Turnbuckle
[A] L3301/L3901
[B] L4701
Clutch pedal free travel Factory specification
20 to 30 mm
0.79 to 1.1 in.
Clearance "A" between
pressure plate and
adjusting bolt
Factory specification
0.9 to 1.0 mm
0.035 to 0.039 in.
(1) Lock Nut
(2) Adjust Bolt
A: Clearance
