HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-M4

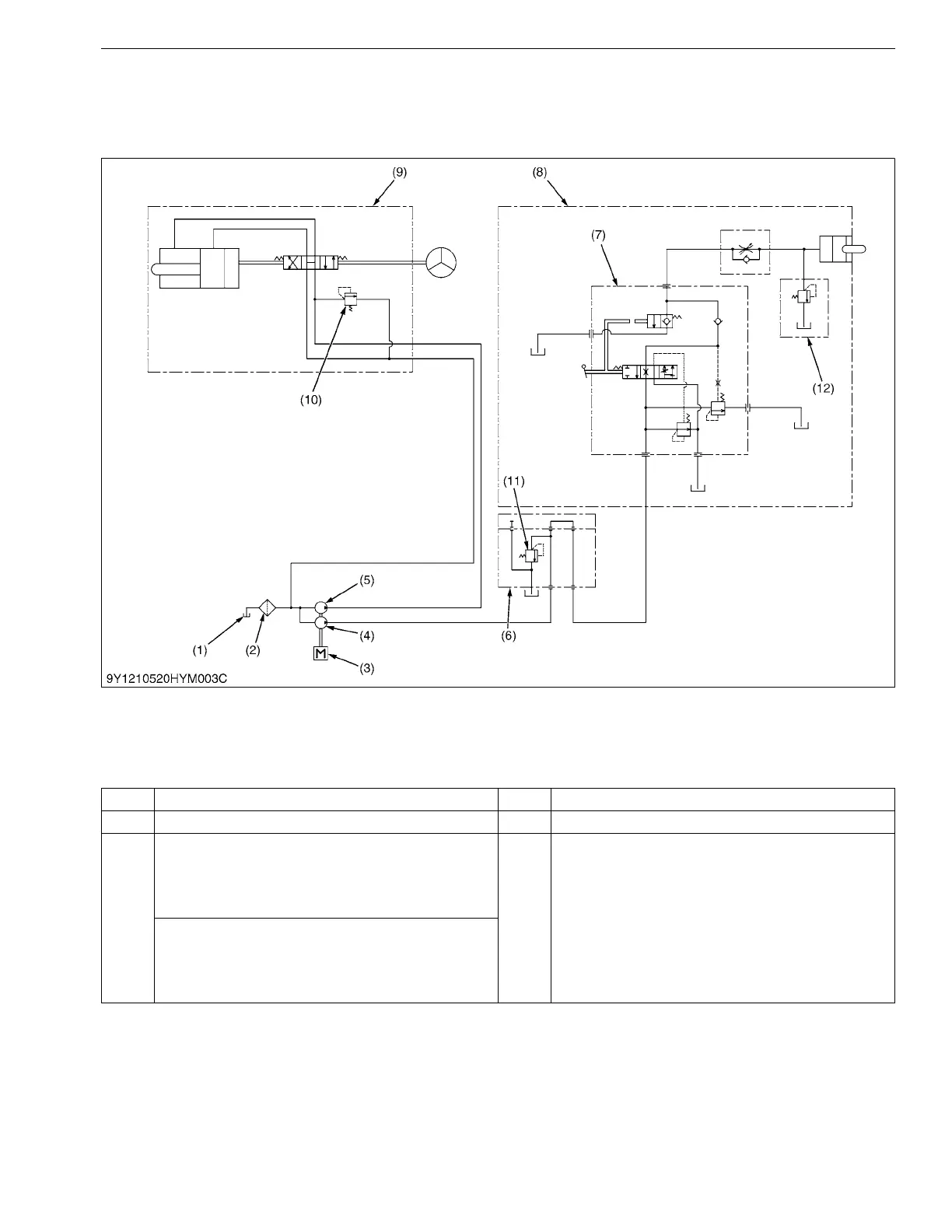

2. HYDRAULIC CIRCUIT
[1] L3301/L3901
(1) Manual Transmission Model
Specification of Hydraulic Parts
9Y1211012HYM0001US0
(1) Oil Tank (Transmission Case)
(2) Hydraulic Oil Filter
(3) Engine
(4) Hydraulic Pump
(Three Point Hitch)
(5) Hydraulic Pump
(Power Steering)
(6) Front Hydraulic Block
(7) Position Control Valve
(8) Hydraulic Cylinder Block
(9) Power Steering Controller
(10) Relief Valve (Power Steering)
(11) Relief Valve
(Three Point Hitch)
(12) Cylinder Safety Valve
(4) Above. 16.5 L/min. (4.36 U.S.gals/min., 3.63 lmp.gals/min.) (11) 15.7 to 16.7 MPa (160 to 170 kgf/cm
2
, 2280 to 2410 psi)
(5) Above. 27.2 L/min. (7.19 U.S.gals/min., 5.98 lmp.gals/min.) (12) 19.7 to 22.5 MPa (200 to 230 kgf/cm
2
, 2850 to 3270 psi)
(10)
[L3301]
2WD Model: 8.3 to 9.3 MPa
(85 to 95 kgf/cm
2
, 1200 to 1300 psi)
4WD Model: 11.4 to 12.4 MPa
(116 to 126 kgf/cm
2
, 1650 to 1790 psi)
[L3901]
2WD Model: 8.1 to 9.1 MPa
(83 to 93 kgf/cm
2
, 1200 to 1300 psi)
4WD Model: 11.1 to 12.1 MPa
(113 to 123 kgf/cm
2
, 1610 to 1740 psi)
KiSC issued 09, 2016 A
